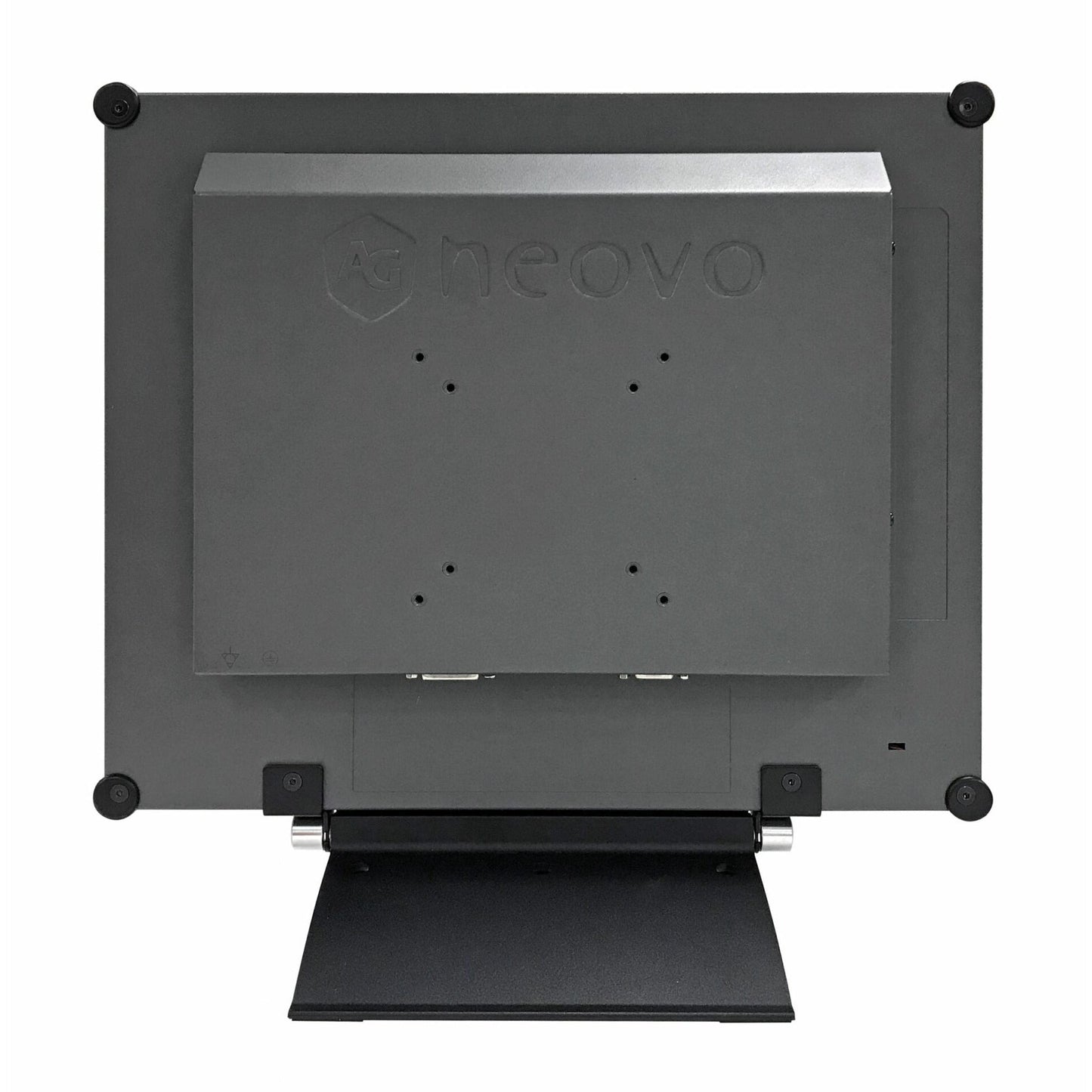

AG Neovo X-15E 15-Inch 4:3 Semi-Industrial Monitor With Metal Casing
AG Neovo X-15E 15-Inch 4:3 Semi-Industrial Monitor With Metal Casing
In stock
SKU:X-15E
Couldn't load pickup availability
Features:
- XGA 1024 x 768 resolution with 4:3 aspect ratio
- Versatile connectivity: VGA, DVI, HDMI, Displayport inputs and dual 2W speakers
- PiP/PbP function for multi-source viewing simultaneously
- Anti-Burn-in technology prevents image ghosting
- NeoV Optical Glass screen protects the display from scratches and other damages
The X-15E 4:3 industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV optical glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.
PROTECTIVE GLASS TO WITHSTAND CHEMICAL EXPOSURE
The NeoV Optical Glass attached to the X-15E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.
DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT
Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-15E industrial monitor durable for demanding environments.
VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
Visualize critical data and engage with multiple video sources and PC applications with versatile connectivity options, including DisplayPort and HDMI, and PIP/PBP to increase productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.
PATENTED ANTI-BURN-IN TECHNOLOGY
AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.
CONSISTENT DESIGN WITH A LONGER LIFETIME
Replacing AG Neovo industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
ENHANCED GAMMA CORRECTION
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-15E industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.
Specifications:
Panel
- Panel Type
- VA
- Panel Size
- 15.0"
- Max. Resolution
- XGA 1024 x 768
- Pixel Pitch
- 0.297 mm
- Brightness
- 300 cd/m²
- Contrast Ratio
- 20,000,000:1 (DCR)
- Viewing Angle (H/V)
- 176°/176°
- Display Colour
- 16.2M
- Response Time
- 5 ms
Frequency
- Frequency (H)
- 24 kHz-83 kHz
- Frequency (V)
- 50 Hz-75 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.4 x 1
- DVI
- 24-Pin DVI-D
- VGA
- 15-Pin D-Sub x 1
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 2W x 2
- Power
- Power Supply
- External
- Power Requirements
- DC 12V
- 1.49A
- On Mode
- 10W (On)
- Standby Mode
- < 0.5W
- Off Mode
- < 0.3W
Glass
- Thickness
- 3.0 mm (0.12")
- Reflection Rate
- < 1%
- Transmission Rate
- > 97%
- Hardness
- > 9H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 10%-90% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 5%-95% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (100 x 100 mm & 75 x 75 mm)
Stand
- Tilt
- 0° to 20°
Security
- Kensington Security Slot
- Yes
Dimensions
- Product with Base (W x H x D)
- 380.0 x 359.0 x 155.0 mm (15.0" x 14.1" x 6.1")
- Product w/o Base (W x H x D)
- 380.0 x 315.0 x 53.5 mm (15.0" x 14.1" x 2.1")
- Packaging (W x H x D)
- 470.0 x 460.0 x 199.0 mm (18.5" x 18.1" x 7.8")
Weight
- Product with Base
- 4.6 kg (10.1 lb)
- Product w/o Base
- 4.2 kg (9.3 lb)
- Packaging
- 5.8 kg (12.8 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- RoHS
- WEEE
- REACH
- EAC
Accessories
- Supplied
- Audio Cable
- Power Adaptor
- Power Cord
- Quick Start Guide
- VGA Cable
Optional Accessories
- Ceiling Mount (Landscape only)
- CMP-01 + WMK-03
- Wall Mount (Landscape only)
- PMK-01
- WMA-01
- WMK-01
- WMK-03
- Desk mount (Landscape only)
- DMC-01
- DMC-02D
- DMS-01D
- ES-02
