NEC

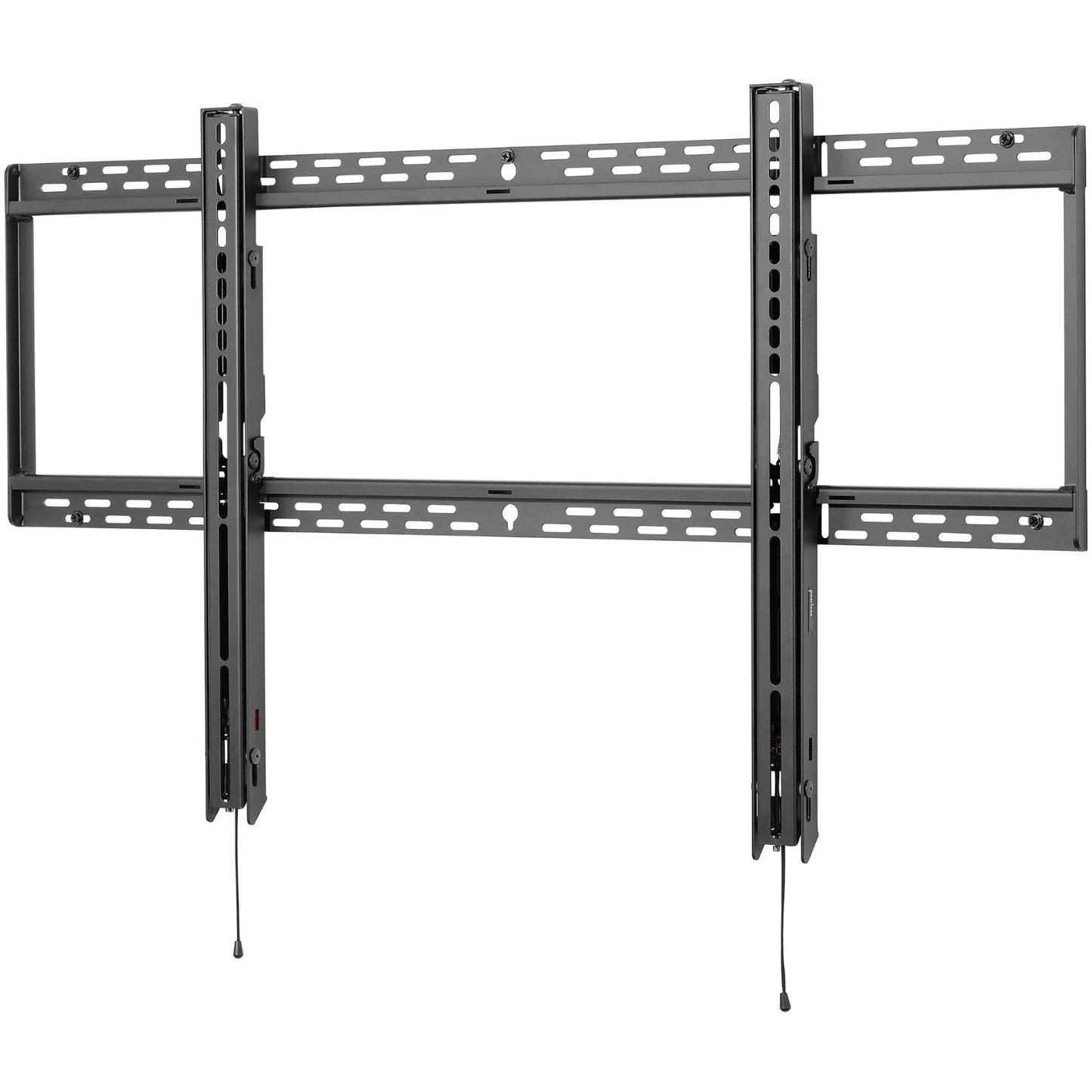

Wall Mount SF680P

Wall Mount SF680P

Out of stock

SKU:100016071

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Deliver modern style to your working environment with sleek, yet compact installations

The SF680P universal flat wall mount delivers an ultra-slim profile designed to hold large displays up to 158 kg.

Installation and maintenance are made easy with the SF680P’s robust feature set. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options.

Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.

Benefits

  • Wall plate installation made easy - wall plate allows a bolt to be pre-installed
  • Low-profile design - for a sleek, yet compact installation.
  • Flexible installation – with post-installation vertical adjustment.
  • Easy access and maintenance – quick-removal draw strings for easy access and maintenance to back of displays.
  • Complete shipping content – fastener pack with all necessary mounting and display attachment hardware included.

MOUNT

Installation Single
Orientation Landscape; Portrait
Max. Load Capacity [kg] 158
Recommended Display Size [inch] 65 to 98; This is just a recommendation. Please check desired size, weight and VESA pattern.
WEIGHT AND DIMENSIONS
Dimensions (W x H x D) [mm] 1,062 x 698 x 44
Weight [kg] 7.8
Min. Depth [mm] 44
Shipping Weight [kg] 9.21
Shipping Dimensions (W x H x D) [mm] 1,185 x 58 x 390
VESA
VESA Pattern [mm] 1100 x 650
ADDITIONAL FEATURES
Colour Versions Black
Warranty 5 years
