Vigilant Vision

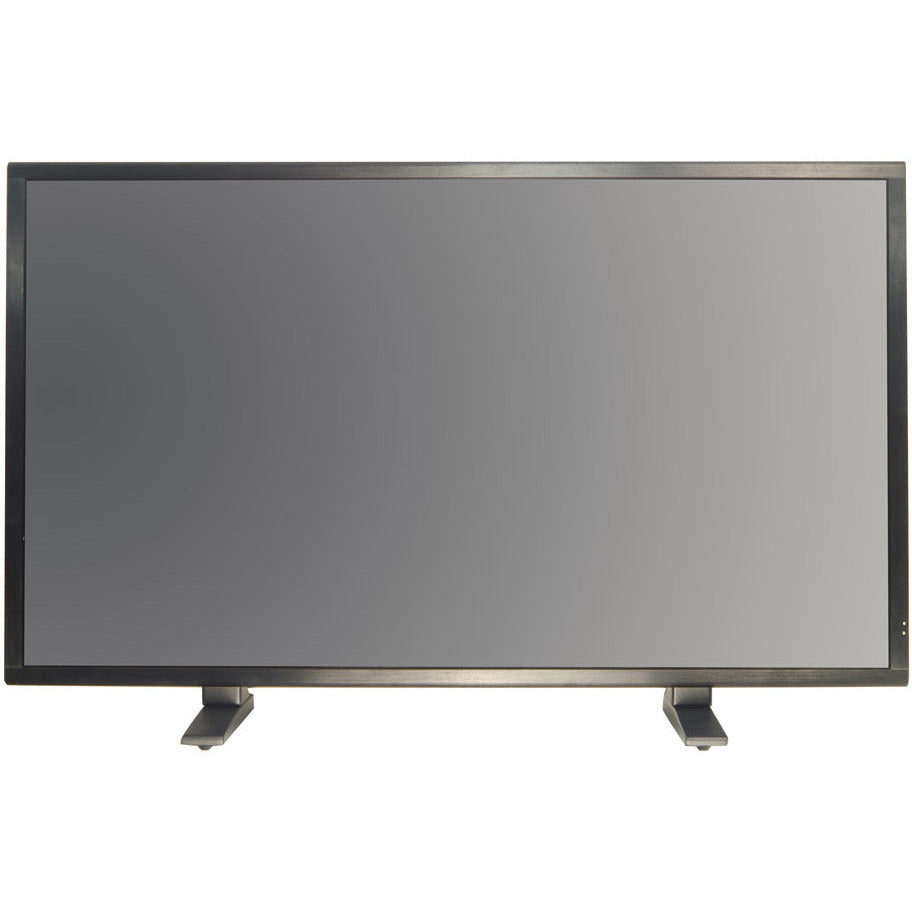

Vigilant Vision 32" LED 16:9 Monitor 1080P
Vigilant Vision 32" LED 16:9 Monitor 1080P
Out of stock
SKU:DS320FHD
Couldn't load pickup availability
SPECIFICATION
IN/OUT INTERFACE
POWER
| Panel Type | 32″ 16:9 LED Panel |
| Case Type | Metal |
| Maximum Resolution | 1920 (H) x 1080 (V) |
| Active Display Area | 698.4(H) x 392.85(V) mm |
| Pixel Pitch | 0.12125(H) x0.36375(V) mm |
| Bezel Thickness | Left/Right/Top/Bottom 22mm |
| Contrast Ratio | 3000 : 1 Ratio |
| Brightness | 300 cd/ m2 |
| Response Time | 8 ms |
| Viewing Angle | 178º/178º (H/V) |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatible Frequency | 30-60KHz(H)/56-75KHz(V) |
| Adjustable Colour Temperature | 9300K / 6500K / 5800K / User |
| Video Compatiblity | NTSC / PAL |
| Aspect Ratio | 16:9 |
| VGA Auto Frequency correction | Yes |
| Speakers | 2 x 5w |
| Number of Speakers | 2 |
| Sound Demodulation | Stereo. Audio |
| Mute | Yes |
| Work Humidity | 5% – 80% |
| Work Temperature | 0 to +50 °C |
| Volume +/- Power On/Off | Yes |
IN/OUT INTERFACE
| Video Interface | 1x BNC Composite In, 1x BNC Composite Out, 1x VGA, 1x HDMI |
| Audio Interface | 1x PC Audio |
| Power Interface | AC In x 1 |
| Termination | 75 Ohms (Automatic termination) |
| Safety & EMC Certification | CE, RoHS, FCC-DOC |
| Vesa Standard Mount | 200mm x 200mm |
| Stand Type | Desktop |
| Colour | Black |
| Button Position | Front Face, Bottom |
| Packing Dimension | 933 x 245 x 632 mm |
| NET Weight | |
| GROSS Weight | 10.5 Kgs |
POWER
- Power Supply: Built In
- Voltage: AC110 – 240V 50 / 60Hz
- Power Consumption: < 50W
OSD CONTROLS
Contrast, Brightness, Colour, Sharpness, Colour Temperature
OSD LANGUAGE
English, French, German, Spanish, Italian, Russian, Polish and Portuguese
ACCESSORIES
HDMI Cable, User Manual, Power Lead
