Vigilant Vision

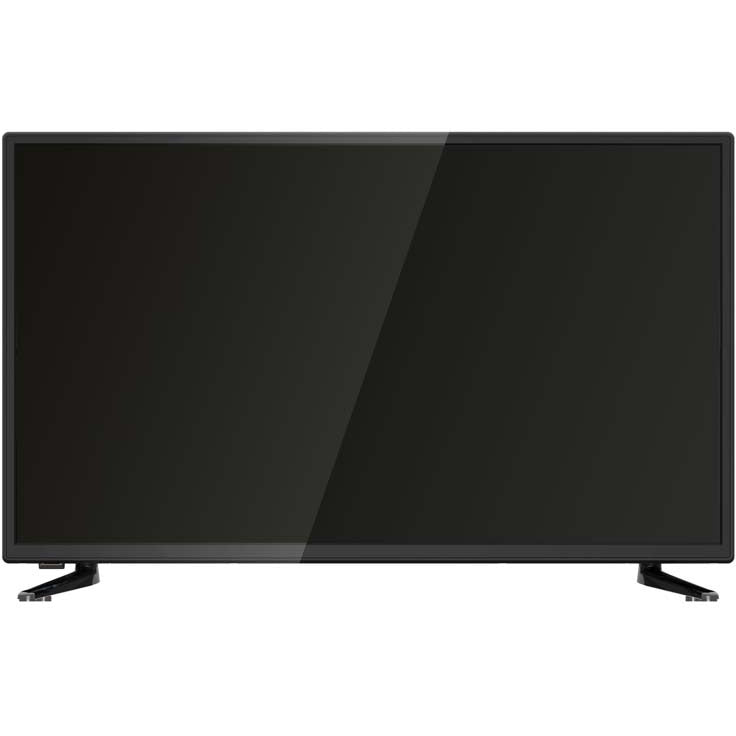

Vigilant Vision 32" LED 16:9 Monitor

Vigilant Vision 32" LED 16:9 Monitor

Out of stock

SKU:DS320FHD-ECO

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out
SPECIFICATION

Panel Type 32″ (16:9) LED Monitor
Case Type Plastic Case
Maximum Resolution 1920 (H) x 1080 (V)
MTBF 40,000 hrs
Active Display Area 698.4(H) x 392.85(V) mm
Pixel Pitch 0.121(H) x0.363(V) mm
Bezel Thickness T: 14.1mm L/R: 14.6mm, B: 21.1mm
Contrast Ratio 1200 : 1 Ratio
Brightness 300 cd/ m2
Response Time 8 m.sec (G to G)
Viewing Angle 89 / 89 U / D 89 / 89°
Display Colours 16.7 M
Video Synchronization Yes
PC Compatibility Yes
Aspect Ratio 16:9
VGA Auto Frequency correction Yes
Number of Speakers 2
Sound Demodulation Stereo
Mute Yes
Work Humidity 0% – 90%
Work Temperature 0 to +60 °C
Volume +/- Power On/Off Yes

IN/OUT INTERFACE

Video Interface VGA, HDMI, 1 x BNC in, 1 x BNC out, Audio
Audio Interface 3.5 mm Jackplug
Power Interface AC
Termination 75 Ohms (Automatic termination)
Safety & EMC Certification FCC, CE, ROHS-2, Reach, Weee
Vesa Standard Mount 100mm x 100mm
Stand Type Picture Frame
Colour Black
Button Position Left Black
Packing Dimension 933 x 245 x 632 mm
NET Weight 4.4 Kgs
GROSS Weight 9.1 Kgs

POWER
  • Power Supply: AC110 – 240V 1A
  • Voltage: AC110 – 240V 1A
  • Power Consumption: < 10W

OSD CONTROLS

VIDEO – Picture, Brightness, Contrast, HUE, Saturation, Sharpness, Color Temp, Picture Mode, OSD – Language, H-position, V-position, Duration, Backlight, Mem-recall, Function – Hstart, Hsize, Vstart, Vsize, Audio-Bass, Treble, Balance, Sound mode, AVC

OSD LANGUAGE

English, French, German, Spanish, Italian, Russian, Portuguese & Polish

ACCESSORIES

Power Cable, Stand, Remote Control, User Guide, HDMI Cable
