Vigilant Vision

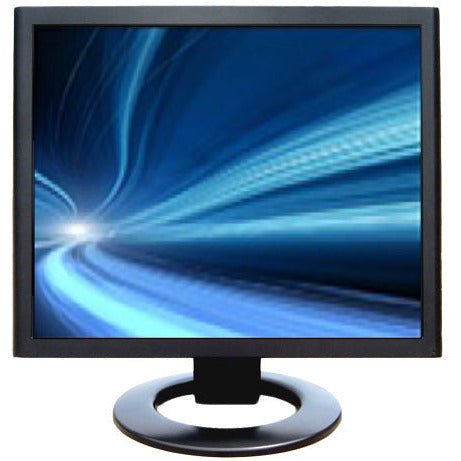

Vigilant Vision 19" LED 4:3 Monitor 1280x1024
Vigilant Vision 19" LED 4:3 Monitor 1280x1024
Out of stock
SKU:AS19LED-3
Couldn't load pickup availability
SPECIFICATION
IN/OUT INTERFACE
POWER
| Panel Type | 19″ LED |
| Case Type | Plastic |
| Maximum Resolution | 1280×1024 |
| MTBF | 50000 hours |
| Active Display Area | 376.32(H)×301.056(V) mm |
| Pixel Pitch | 0.294×0.294 (H×V)mm |
| Bezel Thickness | Left/Right 20mm Top 20mm Bottom 35mm |
| Contrast Ratio | 1000 : 1 Ratio |
| Brightness | 250 cd/ m² |
| Response Time | 5m.sec |
| Viewing Angle | 170 / 160 (H/V) |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatibilty | Yes |
| Aspect Ratio | 4 : 3 Ratio |
| VGA Auto Frequency correction | Yes |
| Speakers | Yes |
| Number of Speakers | 2 |
| Sound Demodulation | Yes |
| Mute | Yes |
| Work Humidity | 5 % – 90 % |
| Work Temperature | -10 to +50 °C |
| Volume +/- Power On/Off | Yes |
IN/OUT INTERFACE
| Video Interface | 1xBNC composite in,1xBNC composite out, 1xVGA, 1xHDMI, |
| Audio Interface | 1x Input |
| Power Interface | DC 2.1mm |
| Termination | 75 Ohms |
| Safety & EMC Certification | CE, FCC, ROHS |
| Vesa Standard Mount | 75 x 75 cm |
| Stand Type | Table stand |
| Colour | Black |
| Button Position | Back side bottom |
| Packing Dimension | 510x175x525mm |
| NET Weight | |
| GROSS Weight | 6.1 Kgs |
POWER
- Power Supply: 12VDC, 3 amp
- Voltage: AC110V – 240V 50/60 Hz
- Power Consumption: <25W
OSD CONTROLS
Contrast, Brightness, Colour, Sharpness, Colour temperature
OSD LANGUAGE
English, German, Italian, Spanish, French, Russian, Portuguese, Polish
ACCESSORIES
DC adaptor, Power cable, HDMI cable, User Manual
