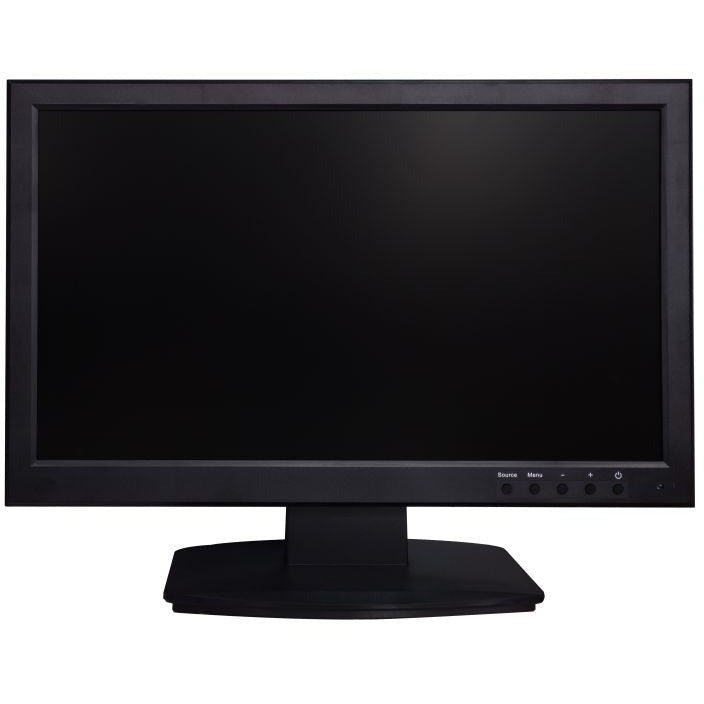

Vigilant Vision 19.5" LED 1080P Mega Pixel AHD Monitor
Vigilant Vision 19.5" LED 1080P Mega Pixel AHD Monitor
Out of stock
SKU:DS195AHDA
Couldn't load pickup availability
SPECIFICATION
IN/OUT INTERFACE
POWER
| Panel Type | 19.5″ LED |
| Case Type | Plastic |
| MTBF | 50000 Hours |
| Maximum Resolution | 1920 (H) x 1080 (V) |
| Active Display Area | 434.88(H) x 238.68(V)mm |
| Pixel Pitch | 0.2265 (H) x 0.221 (V)mm |
| Bezel Thickness | Left/Right/Top 25mm – Bottom 36mm |
| Contrast Ratio | 1000 : 1 Ratio |
| Brightness | 250 cd/ m2 |
| Response Time | 5 ms |
| Viewing Angle | 178°/178° (H/V) |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatibility | N/A |
| Aspect Ratio | 16:9 |
| VGA Auto Frequency correction | N/A |
| Speakers | NO |
| Number of Speakers | 0 |
| Sound Demodulation | No |
| Mute | N/A |
| Work Humidity | 5% – 90% |
| Work Temperature | 0 -40 C |
| Power On/Off | Yes |
IN/OUT INTERFACE
| Video Interface | 2 x HD analogue BNC in (CVBS,AHD,CVI,TVI) 2 x HD analogue BNC out (CVBS,AHD,CVI,TVI) HDMI in |
| Audio Interface | N/A |
| Power Interface | DC In x 1 |
| Termination | 75 Ohms |
| Safety & EMC Certification | FCC-DOC, CE, ROHS |
| Vesa Standard Mount | 100 x 100mm |
| Stand Type | Desk |
| Colour | Black |
| Button Position | Front, Bottom Right. |
| Packing Dimension | 530 x 120 x 420mm |
| NET Weight | 2.9 kg |
| GROSS Weight | 3.6 kg |
POWER
- Power Supply: 220/240 AC
- Voltage: 12vDC
- Power Consumption: <25W
OSD CONTROLS
Contrast,Brightness,Saturation,Hue,Language, OSD position, OSD Time, Reset
OSD LANGUAGE
English,French, German, Spanish, Italian, Dutch, Polish, Russian, Danish
ACCESSORIES
Power cord, Adapter, Stand, User’s guide, HDMI cable
