AG Neovo TX-2401 24-Inch 1080p Touch Screen Monitor With Metal Casing
AG Neovo TX-2401 24-Inch 1080p Touch Screen Monitor With Metal Casing
Out of stock
SKU:TX-2401
Features:
- FHD 1920 x 1080 resolutions
- 10-point projected capacitive touch technology
- Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
- Windows 10 ready – plug and play support for Windows 7/8/10
- Designed and developed for continuous 24/7 operation
The TX-2401 touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI and VGA input connectivity, the TX-2401 touch monitor is built for flexible use such as self-check-in, endless aisle, self-ordering and price checking. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.
10-POINT PCAP TOUCH SCREEN
The TX-2401 touch screen adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.
EASY TO MAINTAIN FOR NON-STOP USE
A commercial-grade panel, high-quality components and 7H scratch-resistant tempered glass screen ensure the display can be 24/7 constant used. Additionally, the screen is resistant to chemical disinfectants like alcohol for frequent cleaning.
FRONT IP65 DUST AND WATER PROTECTION
The TX-2401 multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
HIGH IMPACT-RESISTANT AGAINST VANDALISM
The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life.
MULTIPLE LAYOUTS FOR PUBLIC ACCESS
Thanks to VESA compatibility, the TX-2401 offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.

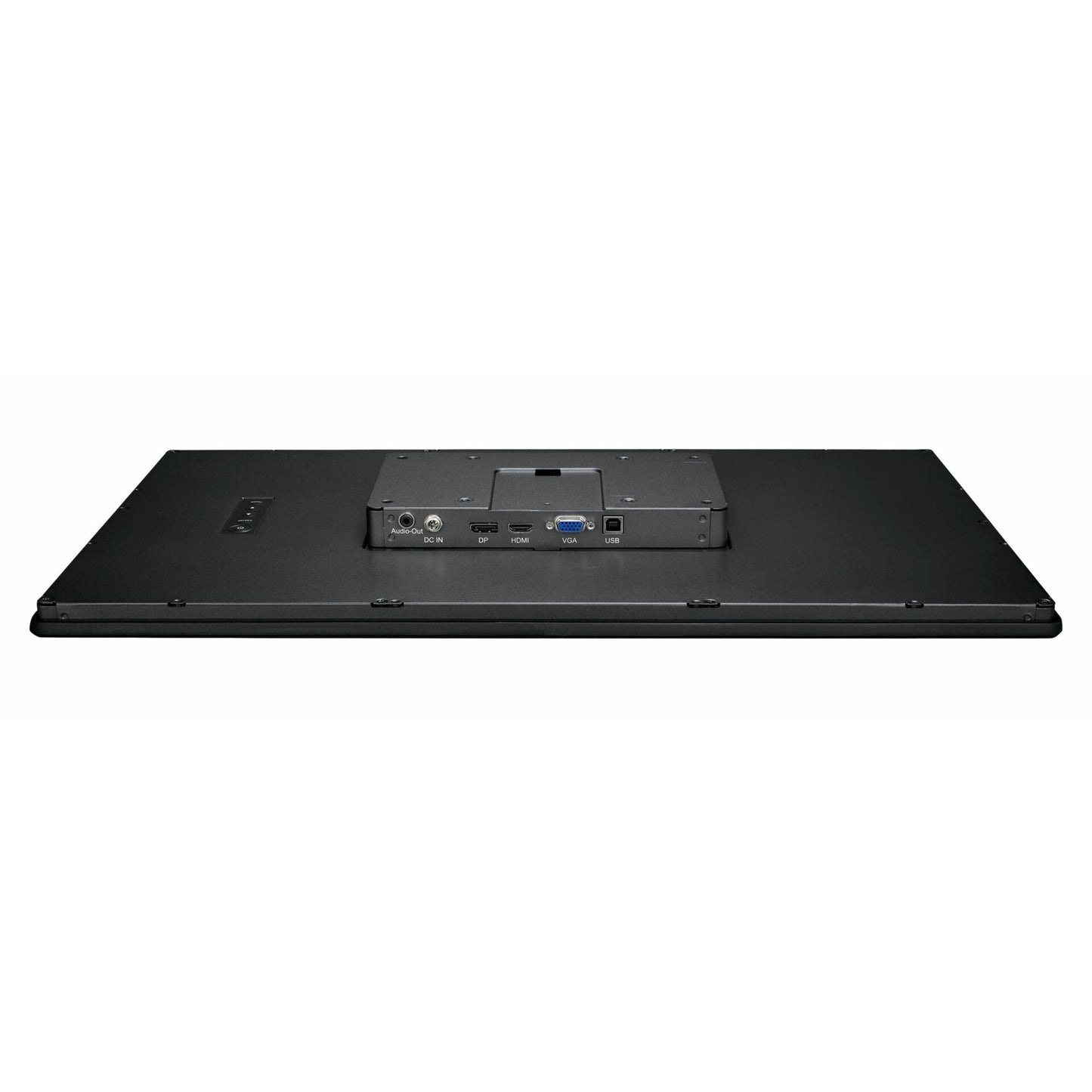

VERSATILE CONNECTIVITY
The TX-2401 provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.
CABLE MANAGEMENT
A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen up or down, and provides a clutter-free space.
SEAMLESS INTEGRATION
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.
Specifications:
Panel
- Panel Type
- VA
- Panel Size
- 23.8"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.274 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 3000:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Response Time
- 5 ms
- Surface Treatment
- Seriesant1-Glare Treatment (Haze 40%),3H Hard Coating
Frequency
- Frequency (H)
- 30 kHz-84 kHz
- Frequency (V)
- 56 Hz-76 Hz
Signal Input
- DisplayPort
- 1.2a x 1
- HDMI
- 1.3 x 1
- VGA
- 15-Pin D-Sub x 1
Audio
- Audio Out
- Stereo Audio Jack (3.5 mm)
Touch Screen
- Technology
- Projective Capacitive
- Positional Accuracy
- ±2.5 mm
- Panel Interface
- USB (Type-B)/Service Port
- Multi-touch Plug & Play
- 10-point touch for Windows® 7、8、10、11
- Single Touch Support by Driver
- Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
- Multi-touch Support by Driver
- Linux 2.6.36 later/3.x.x/4.x.x/5.x.x、 Android 2.3 upwards
Power
- Power Supply
- External
- Power Requirements
- DC 12V
- 2.5A
- On Mode
- 17 W (On)
- Standby Mode
- < 0.4W
- Off Mode
- < 0.2W
Glass
- Thickness
- 3.3 mm (0.13")
- Transmission Rate
- ≥85%
- Hardness
- ≥7H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (100 x 100 mm)
Stand
- Tilt
- -2° to 180°
Dimensions
- Product with Base (W x H x D)
- 575.1 x 451.3 x 279.7 mm (22.6" x 17.8" x 11.0")
- Product w/o Base (W x H x D)
- 575.1 x 347.0 x42.4 mm (22.6" x 13.7" x 1.7")
- Packaging (W x H x D)
- 370.0 x 530.0 x 660.0 mm (14.6" x 20.9" x26.0")
Weight
- Product with Base
- 7.8 kg (17.2 lb)
- Product w/o Base
- 5.7 kg (12.6 lb)
- Packaging
- 11.4 kg (25.1 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
- UKCA
Accessories
- Supplied
- HDMI Cable
- Power Adaptor
- Power Cord
- Quick Start Guide
- USB Cable
- VGA Cable
Optional Accessories
- Wall Mount (Landscape only)
- PMK-01
- WMK-01
- WMK-03
