AG Neovo

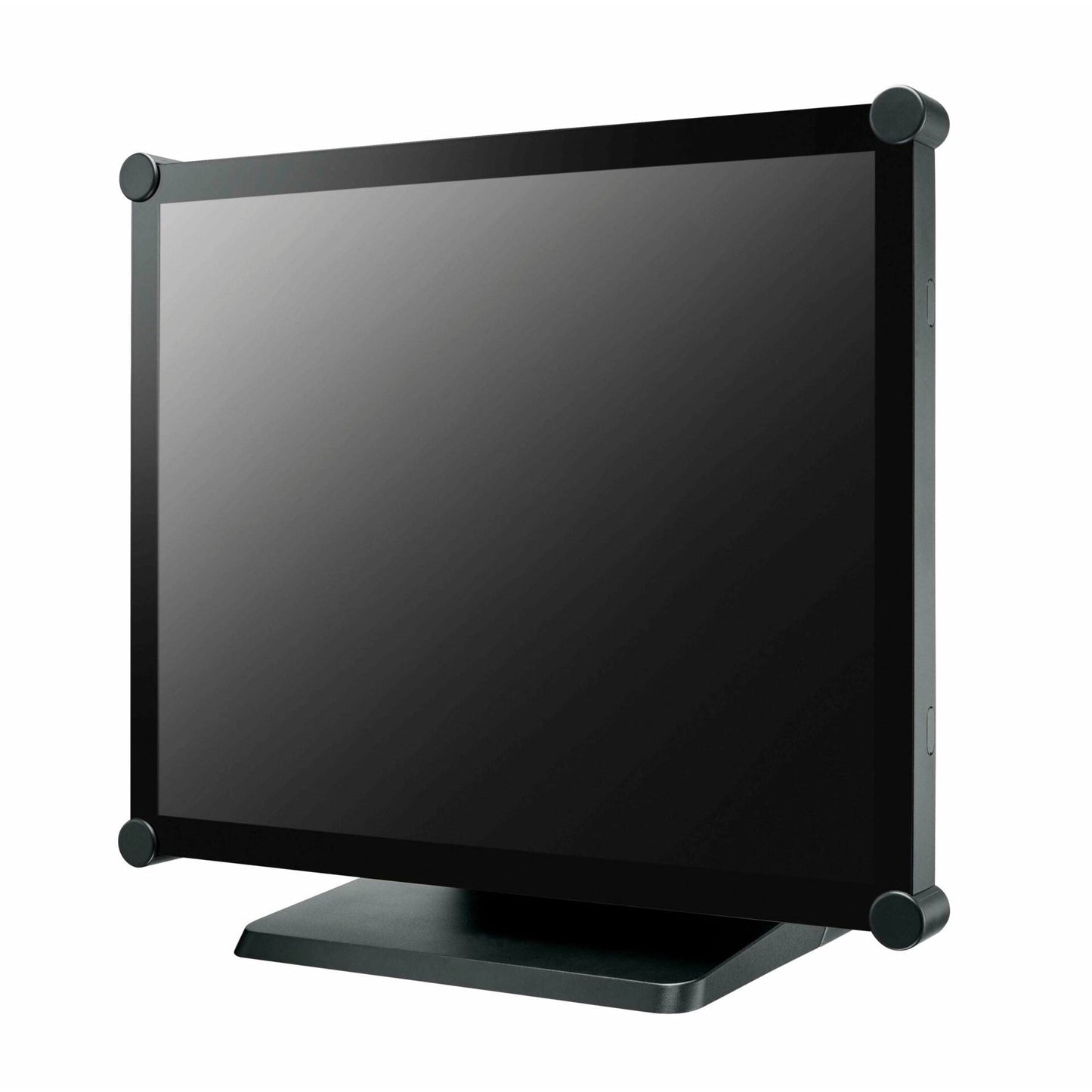

AG Neovo TX-1702 17" Touch Screen Monitor With Metal Casing
AG Neovo TX-1702 17" Touch Screen Monitor With Metal Casing
Out of stock
SKU:TX-1702
Couldn't load pickup availability
Features:
- XGA 1280 x 1024 resolution with 5:4 aspect ratio
- 10-point projected capacitive touch technology
- Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
- Windows 10 ready – plug and play support for Windows 7/8/10
- Designed and developed for continuous 24/7 operation
AG Neovo TX-1702 17-inch touch screen monitor provides a smooth and responsive touch experience with 10-point projected capacitive (PCAP) multi-touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-1702 supports analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. The TX-1702 touch monitor is complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.
PREMIUM PCAP MULTI TOUCH SCREEN
Based on PCAP touch screen technology, the TX-1702 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.
CROSS-PLATFORM TOUCH CAPABILITY
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
IP65 DUST AND WATER PROTECTION
The TX-1702 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1702 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
CONSISTENT FORM FACTOR DESIGN
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, the TX-1702 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

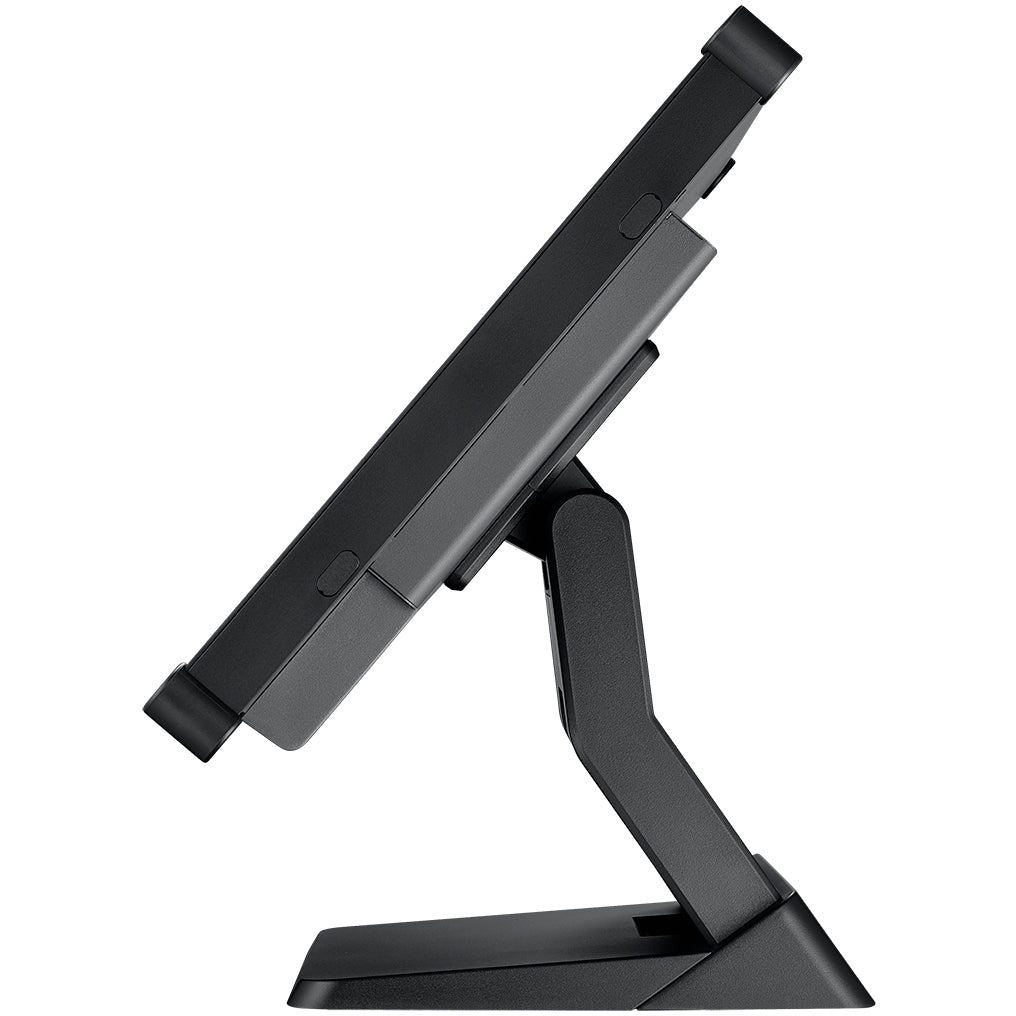

The TX-1702 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1702 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.

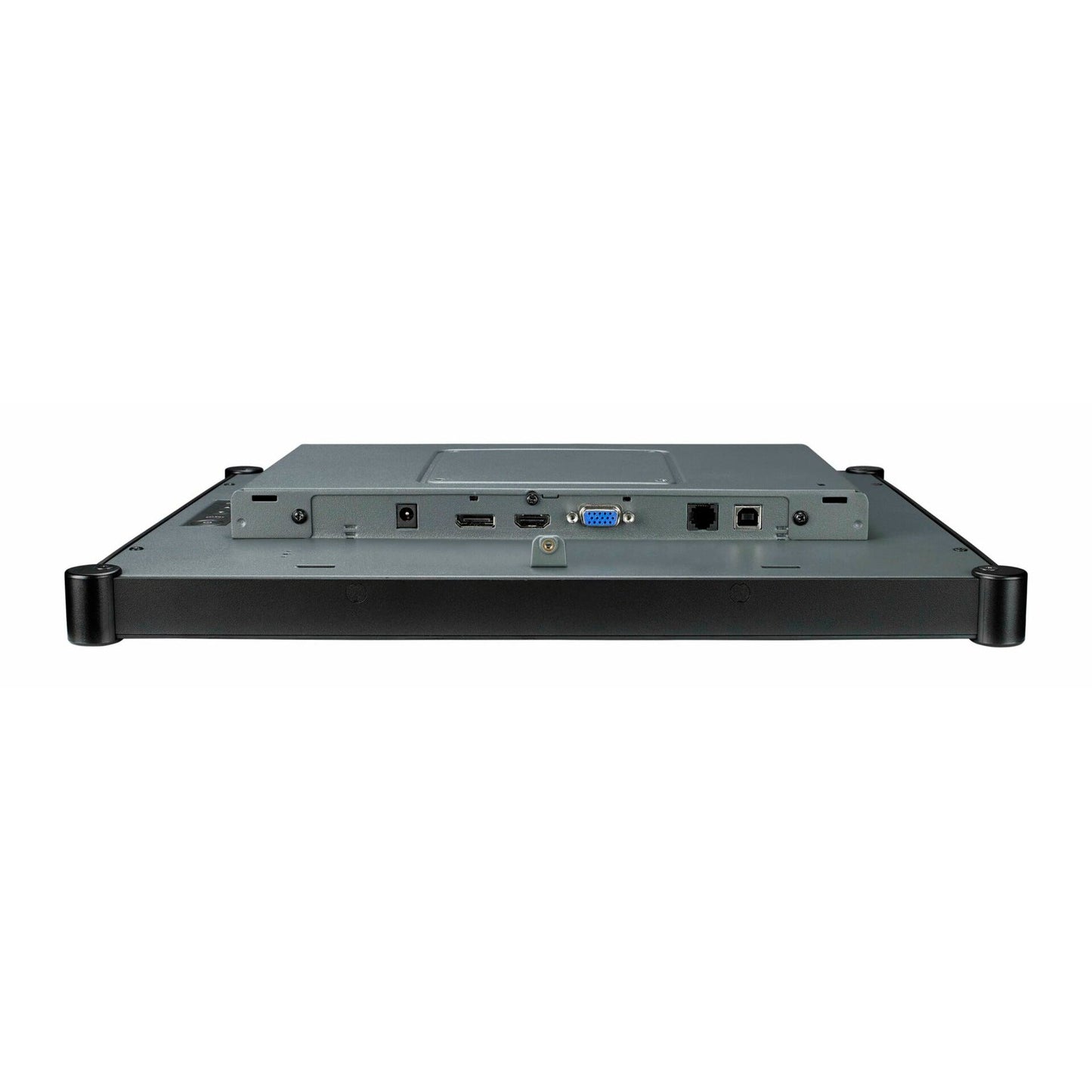

VERSATILE CONNECTIVITY
The TX-1702 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
Specifications:
Panel
- Panel Type
- TN
- Panel Size
- 17.0"
- Max. Resolution
- SXGA 1280 x 1024
- Pixel Pitch
- 0.264 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Viewing Angle (H/V)
- 170°/160°
- Display Colour
- 16.7M
- Response Time
- 3 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 25%),3H Hard Coating
Frequency
- Frequency (H)
- 31 kHz-80 kHz
- Frequency (V)
- 50 Hz-75 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.4 x 1
- VGA
- 15-Pin D-Sub x 1
External Control
- RJ11
- Yes
Touch Screen
- Technology
- Projective Capacitive
- Positional Accuracy
- ± 2.0 mm
- Panel Interface
- USB (Type-B)
- Multi-touch Plug & Play
- 10-point touch Windows® 7、8、10、11
- Single Touch Support by Driver
- Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
- Multi-touch Support by Driver
- 10-point touch for Linux、Android 2.3-4.x
Power
- Power Supply
- External
- Power Requirements
- DC 12V
- 2.5A
- On Mode
- 10W (On)
- Standby Mode
- < 0.8W
- Off Mode
- < 0.3W
Glass
- Thickness
- 3.1 mm (0.12")
- Transmission Rate
- > 85%
- Hardness
- > 7H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (100 x 100 mm)
Stand
- Tilt
- -5° to 90°
Security
- Kensington Security Slot
- Yes
Dimensions
- Product with Base (W x H x D)
- 380.0 x 343.4 x 214.2 mm (15.0" x 13.5" x 8.4")
- Product w/o Base (W x H x D)
- 380.0 x 318.0 x 49.5 mm (15.0" x 12.5" x 2.0")
- Packaging (W x H x D)
- 450.0 x 418.0 x 277.0 mm (17.7" x 16.5" x 10.9")
Weight
- Product with Base
- 5.8 kg (12.8 lb)
- Product w/o Base
- 3.9 kg (8.6 lb)
- Packaging
- 8.0 kg (17.6 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
Accessories
- Supplied
- HDMI Cable
- Power Adaptor
- Power Cord
- Quick Start Guide
- USB Cable
- VGA Cable
Optional Accessories
- Wall Mount (Landscape only)
- PMK-01
- WMK-01
- WMK-03
