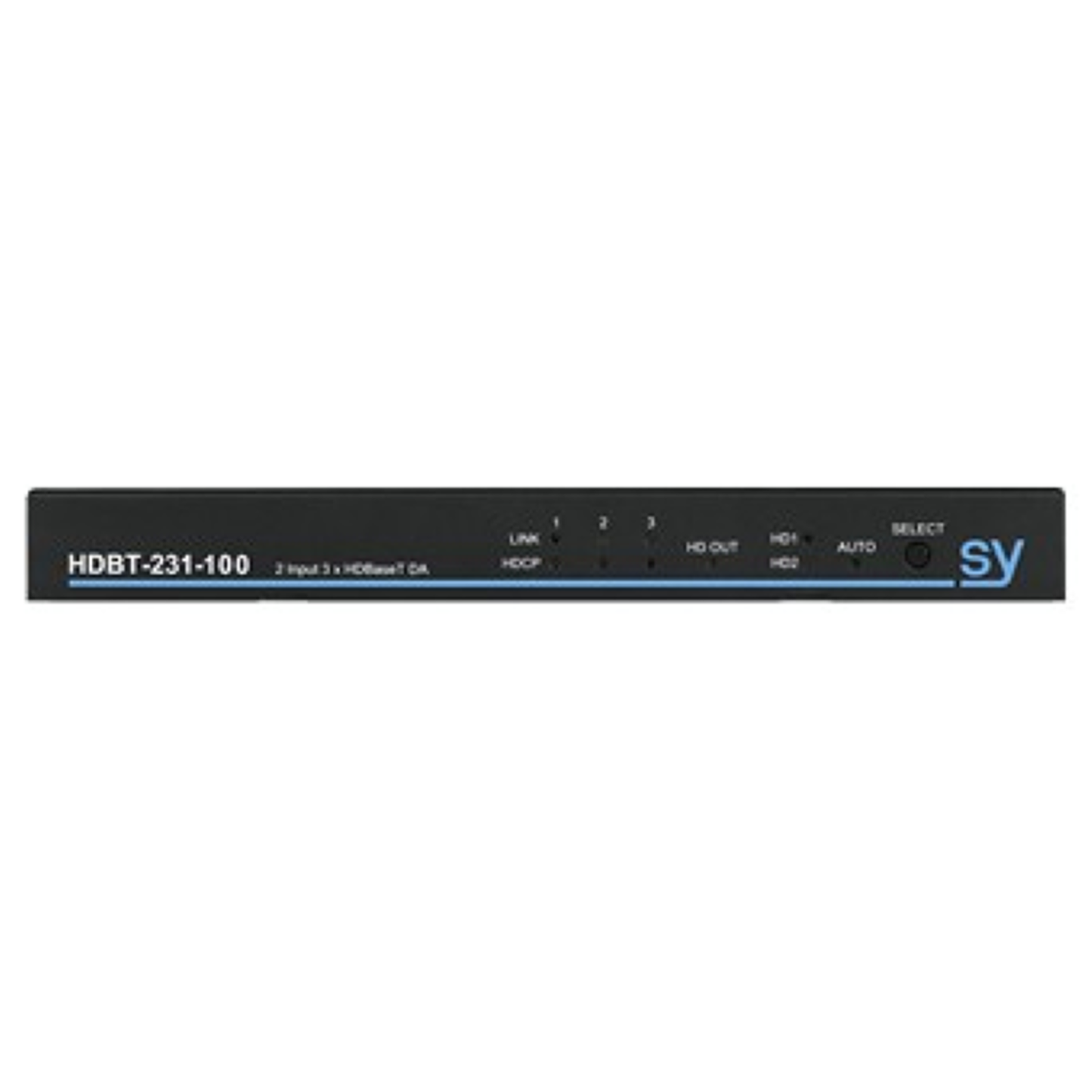

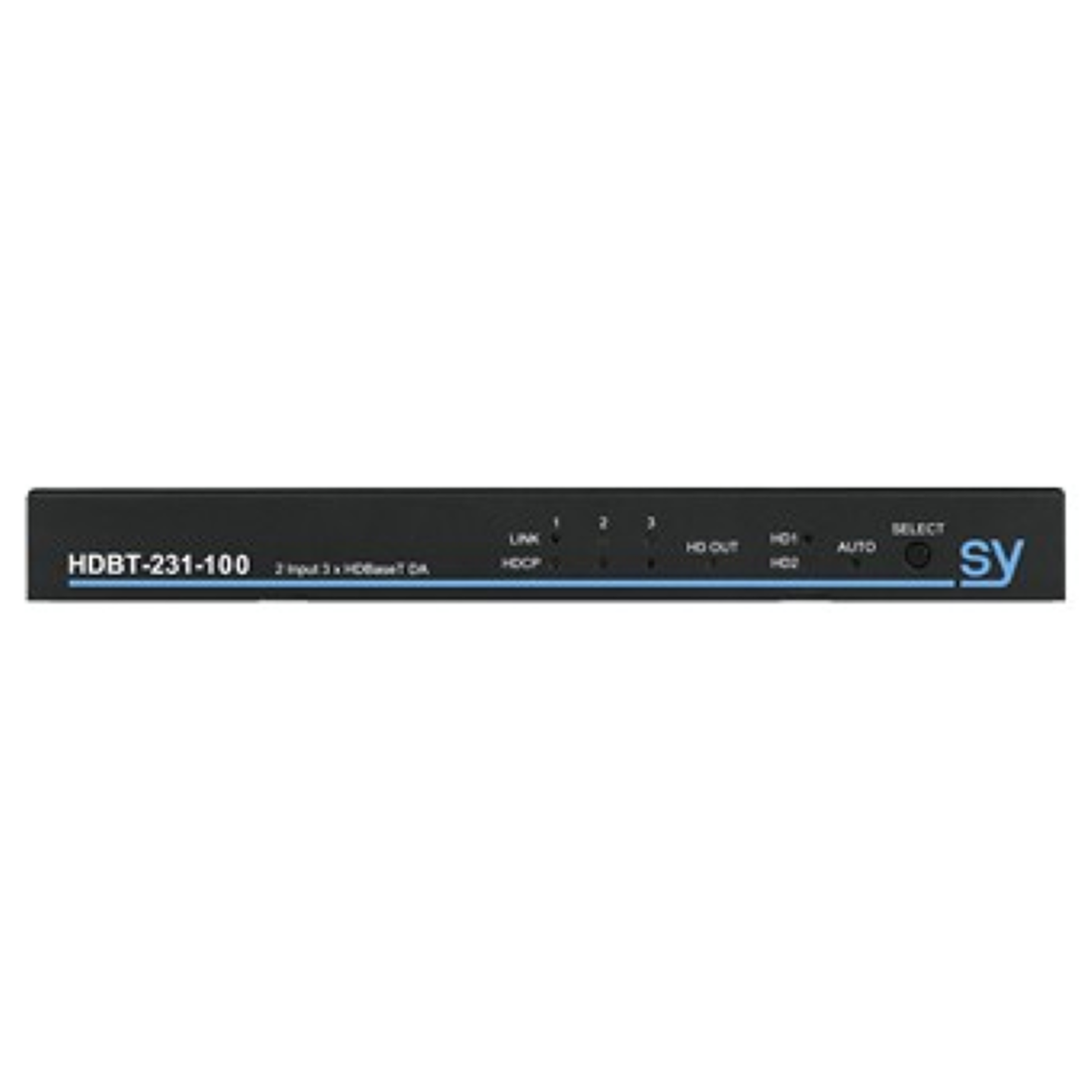

SY 2×4K UHD HDMI Input HDBaseT Distribution Switcher (with Receivers)

The SY 2×4K UHD HDMI Input HDBaseT Distribution Switcher is a professional AV distribution and routing solution designed for systems that require long-distance signal transmission, multi-zone display control, and reliable 4K performance. It is ideal for large meeting spaces, lecture theatres, corporate AV systems, hospitality venues, and control room environments.

The unit features two 4K UHD HDMI inputs and distributes selected content across three HDBaseT outputs (up to 100m over Cat6), alongside a local HDMI output for nearby display connection. This enables simultaneous local and remote viewing across multiple zones without additional distribution hardware.

To complete the system, the package includes three HDBaseT receivers, providing a ready-to-deploy solution for remote display locations. Each HDBaseT link carries high-quality video, audio, and control signals over a single Cat6 cable for simplified installation.

Integrated audio de-embedding allows audio to be extracted for connection to external amplification systems or DSPs. The system also supports bi-directional RS232 broadcasting, enabling control signals to be extended between central and remote devices for full system integration.
