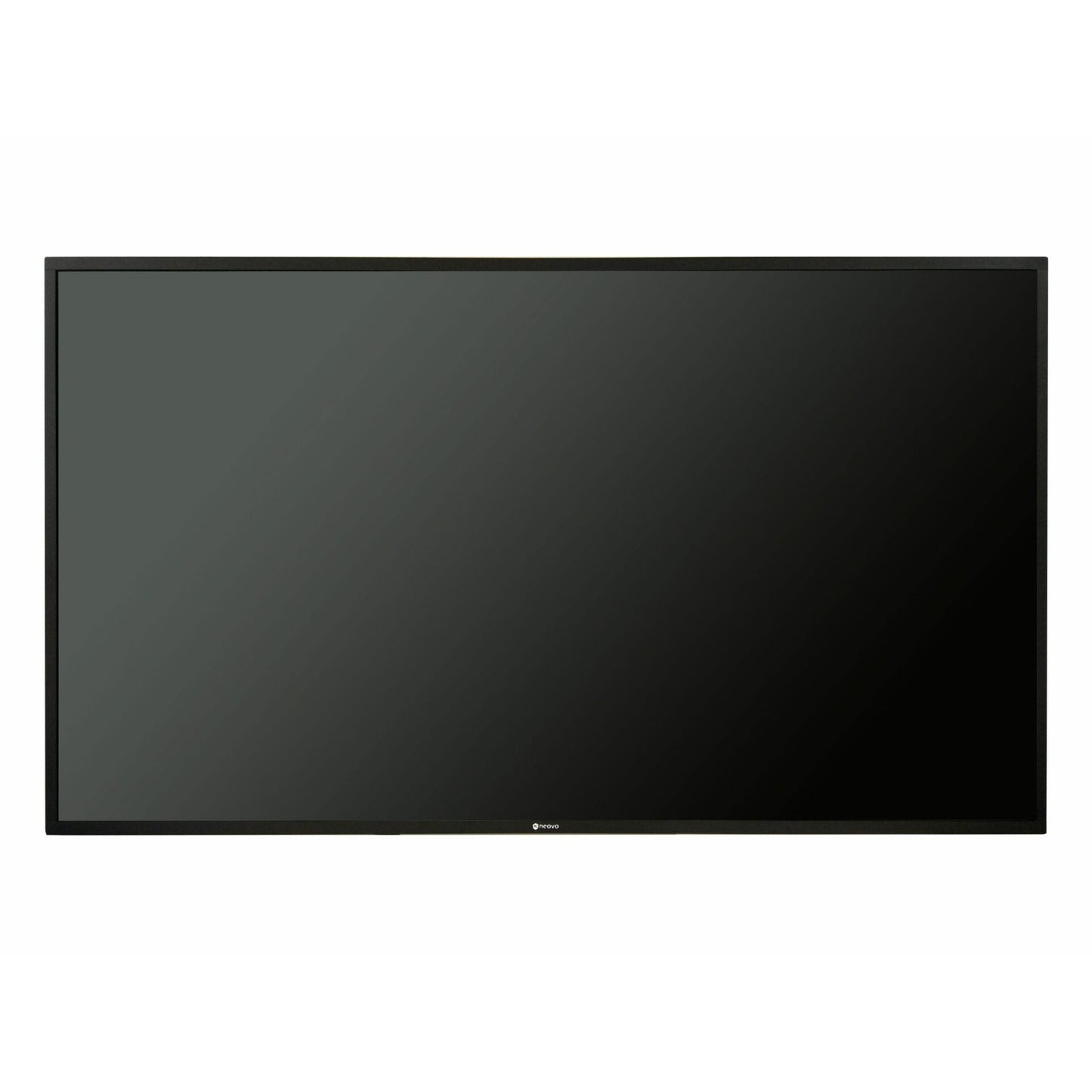

AG Neovo QD-75 75-Inch 4K Commercial Display

AG Neovo QD-75 75-Inch 4K Commercial Display

Out of stock

SKU:QD-75

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Features

  • 4K UHD 3840 x 2160 resolution
  • DisplayPort 1.2 Multistream functionality for 4K UHD resolution across a 2×2 video wall
  • Multi-screen Viewer: up to 4 split FHD screens from 4 individual input sources
  • OPS slot ready for easy media player integration
  • Landscape and Portrait for flexible display orientation

Render the durable metal housing, replace video walls with four FHD screens simultaneously from four different inputs, and an optional OPS slot for digital signage applications; the QD-75 75-inch 4K commercial display makes a big difference from others. This display fits digital signage and video wall solutions of all specifications tailored to user needs.

IPS PANEL FOR 24/7 USE

Designed for 24/7 operation, QD-75 4K commercial display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.


BUILT-IN HEATCONTROL SENSORS

The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.


EMBEDDED IMAGE ENHANCER

The embedded image enhancer features a 3D Deinterlace and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.


OPS SLOT READY

AG Neovo’s commercial display is OPS slot ready connected to an external PC module for digital signage integration.


TILING READY FOR LARGE-SCALE VIDEO WALL

The tiling-ready QD-75 can either stand-alone or be arrayed in configurations of up to 10×15 video walls. The display can also deliver 4K at 60 Hz by a single DisplayPort 1.2 cable for the best visual quality.

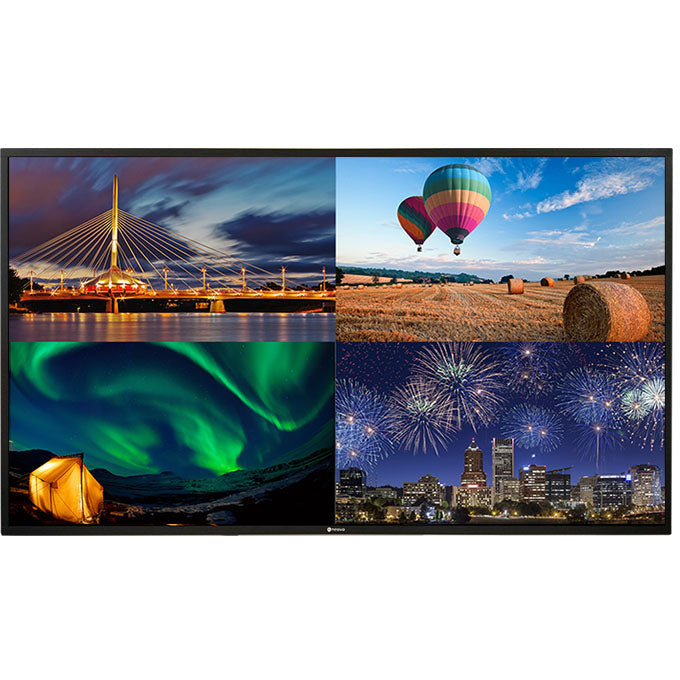

MULTI-SCREEN VIEWER: ONE DISPLAY, FOUR SCREENS

Beyond the traditional two-input Picture-in-Picture (PIP) feature, the QD-75’ multi-screen viewer can display up to four FHD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true FHD content.


PATENTED ANTI-BURN-IN™ TECHNOLOGY

To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.


PID COMMAND & CTRL SOFTWARE

PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on the displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.

Specification

Panel
  • Panel Type
  • IPS
  • Panel Size
  • 74.5"
  • Max. Resolution
  • UHD 3840 x 2160
  • Pixel Pitch
  • 0.429 mm
  • Brightness
  • 410 cd/m²
  • Contrast Ratio
  • 1200:1
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 1.07B
  • Colour Gamut
  • NTSC 72%
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze 3%)
  • 2H Hard Coating
Frequency
  • Frequency (H)
  • 31 kHz-92 kHz
  • Frequency (V)
  • 48 Hz-85 Hz
Signal Input
  • DisplayPort
  • 1.2 x 1
  • HDMI
  • 2.0 x 3
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
  • Component
  • RCA x 1
  • Composite
  • RCA x 1 (Share with Component-Y )
Signal Output
  • DisplayPort
  • 1.2 x 1
External Control
  • IR In
  • 3.5 mm Phone Jack
  • IR Out
  • 3.5 mm Phone Jack
  • RS232 In
  • 2.5 mm Phone Jack
  • RS232 Out
  • 2.5 mm Phone Jack
  • LAN
  • RJ45 x 1
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port / Media Playback)
  • OPS Slot
  • Yes
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Stereo Audio Jack (RCA)
  • Audio Out
  • S/PDIF
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 10W x 2
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 197W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Operating Conditions
  • Temperature
  • 5°C – 40°C (41°F-104°F)
  • Humidity
  • 20%-80%(non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 10%-90%(non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (600 x 400 mm)
Dimensions
  • Product w/o Base (W x H x D)
  • 1676.6 x 955.0 x 73.8 mm (66.0" x 37.6" x 2.9")
  • Packaging (W x H x D)
  • 1832.0 x 1283.0 x 280.0 mm (72.1" x 50.5" x 11.0")
Weight
Product w/o Base
  • 53.3 kg (117.3 lb)
  • Packaging
  • 65.5.0 kg (144.1 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • CB
  • WEEE
  • RoHS
  • REACH
  • EAC
Accessories
  • Supplied
  • Batteries
  • CD
  • Power Cord
  • Remote Control
  • RS232 Cable
  • RS232 Daisy Chain Cable
  • VGA Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + LMK-01
  • Wall Mount (Landscape only)
  • LMK-01
  • LMK-03
  • Floor Mount (Landscape only)
  • FMC-03 + LMK-04
  • FMC-04 + LMK-04
