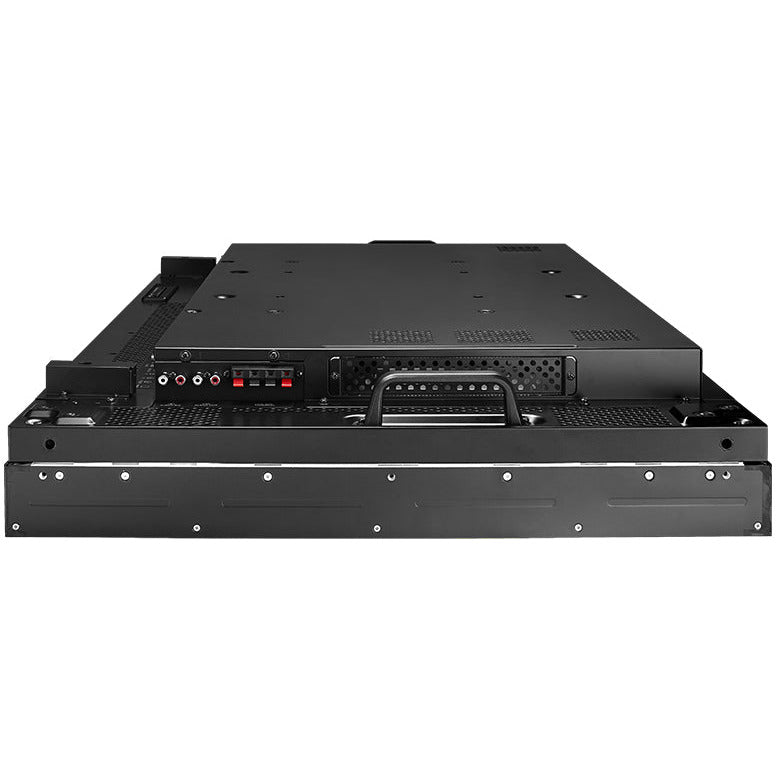

AG Neovo PN-46D 46-Inch 1080p 5.7mm Ultra Narrow Bezel Video Wall Display
AG Neovo PN-46D 46-Inch 1080p 5.7mm Ultra Narrow Bezel Video Wall Display
Out of stock
SKU:PN-46D
Couldn't load pickup availability
Features
- Full HD 1920 x 1080 resolution
- 5.7mm narrow bezel for seamless LCD video walls
- 500 nits brightness panel offers clear images in bright areas
- DVI daisy-chain support for easy video wall installation
- PiP/PbP functions enable multi-source viewing simultaneously
The PN-46D 46-inch narrow bezel video wall display is designed for professional video wall applications. Given the built-in scheduler, OPS slot, and UniWall™ function, this premium display is easy to set up and maintain up to 10×10 display configuration. With 500 nits brightness and premium-grade panels, visually stunning video walls can display in demanding environments — from large public venues to 24/7 operation control rooms.
PROFESSIONAL VIDEO WALLS
This 46-inch narrow bezel video wall display features 5.7 mm width (bezel to bezel) to create seamless images for an uninterrupted visual experience. For a complete video wall set up, up to 15 x 10 tiling is supported via DisplayPort and DVI interfaces.
COMMERCIAL-GRADE PANEL FOR 24/7 USE
Designed for 24/7 operation, PN-46D video wall display is produced to meet the highest professional standard and take advantage of superior components to ensure a long product lifetime in demanding environments.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
PIP/PBP VIEWER MODE
The display enables flexible viewing with PiP/PbP functions – inset or swap window display main screen, sub-screen, and even split-screen image formats.
BUILT-IN HEATCONTROL SENSORS
The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.
EMBEDDED IMAGE ENHANCER
The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, Noise Reduction, and Freeze to solve image issues – offer crystal clarity to the most demanding environments.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 46.0"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.530 mm
- Brightness
- 500 cd/m²
- Contrast Ratio
- 3500:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Colour Gamut
- NTSC 72%
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 25%)
- 2H Hard Coating
Frequency
- Frequency (H)
- 31 kHz-92 kHz
- Frequency (V)
- 48 Hz-85 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.3b x 1
- DVI
- 24-Pin DVI-D
- VGA
- 15-Pin D-Sub x 1
- Component
- BNC x 1
- Composite
- BNC x 1 (Share with Component-Y )
Signal Output
- DVI
- 29-Pin DVI-I x 1 (VGA)
External Control
- IR In
- 3.5 mm Phone Jack
- IR Out
- 3.5 mm Phone Jack
- RS232 In
- 9-Pin D-Sub
- RS232 Out
- 9-Pin D-Sub
- LAN
- RJ45 x 1
Other Connectivity
- OPS Slot
- Yes
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Stereo Audio Jack (RCA)
- Audio Out
- Stereo Audio Jack (RCA)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 135W (On)
- Standby Mode
- < 0.5W
- Off Mode
- < 0.5W
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80%(non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 5%-90% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (400 x 200 mm & 200 x 200 mm)
Security
- Kensington Security Slot
- Yes
Dimensions
- Product w/o Base (W x H x D)
- 1024.0 x 578.6 x 125.7 mm (40.3" x 22.8" x 4.9")
- Packaging (W x H x D)
- 1290.0 x 865.0 x 363.0 mm (50.8" x 34.0" x 14.3")
Weight
- Product w/o Base
- 23.0 kg (50.7 lb)
- Packaging
- 32.4 kg (71.4 lb)
Regulation Approval
- Certifications & Compliance
- FCC
- CE
- BSMI
- LVD
- WEEE
- RoHS
- REACH
- EAC
Accessories
- Supplied
- Batteries
- CD
- IR Sensor
- Power Cord
- Power Switch Cover and Screw
- Remote Control
- VGA Cable
Optional Accessories
- Floor Mount
- FMC-02
- FMS-01
- FMS-02
- Ceiling Mount
- CMP-01 + LMK-02
- CMP-01 + WMK-03
- Video Wall Mount
- VWM-01
- VWM-02
- Wall Mount
- LMA-01
- LMK-02
- WMA-01
- WMK-03
- Desk Mount
- DTS-01
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- Wall Mount (Landscape only)
- LMA-02
- LMK-01
- LMK-03
