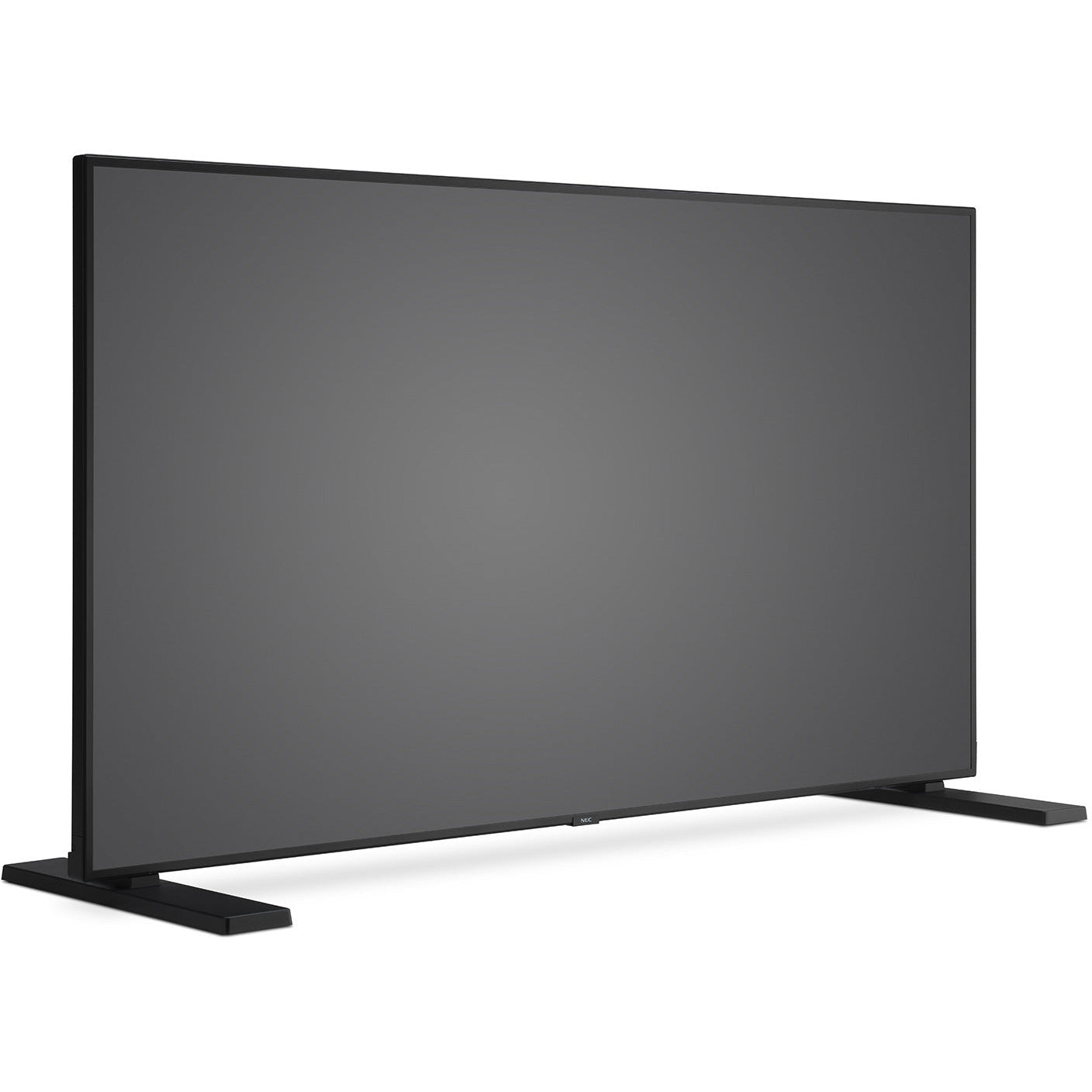

NEC MultiSync® V754Q LCD 75" Midrange Large Format Display

NEC MultiSync® V754Q LCD 75" Midrange Large Format Display

Out of stock

SKU:60004317

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Boosting the viewing experience for digital signage and presentation

For compelling visualisation, NEC’s MultiSync® V754Q couples the best UHD viewing experience with worry free operation, yet at the lowest operational investment.

Stunning "pixel-free" ergonomic viewing is smartly merged with reliable colour reproduction for the most realistic and thrilling images with expanded contrast ratios. Eye-pleasing readability under common light conditions is guaranteed thanks to the combination of a brightness output of 500 cd/m² with low reflection from the anti-glare surface. The modern and slim design is the perfect fit to complement the surrounding architecture as well as for integration into any application and environment. Open Modular Intelligence (OMi) is the smartest way to deliver tailor-made signage solutions, where scalable computing power is seamlessly embedded into the display.

The 75” MultiSync® V754Q is the perfect choice for big and lasting impressions in retail stores, leisure and museum environments, hospitality areas and corporate signage solutions as well as for convincing presentations in meeting and conferencing facilities.

Benefits

  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
  • Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
  • Future-proof signal connectivity and processing – numerous native UHD resolution inputs with 60Hz refresh rate including DisplayPort, HDMI and an option slot for OPS Slot-in PCs, plus automatic upscaling to UHD for other signals, provide “pixel-free viewing“ on a large scale.
  • Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.

DISPLAY

Panel Technology IPS with Edge LED backlights
Active Screen Area (W x H) [mm] 1,649.7 x 927.9
Screen Size [inch/cm] 75 / 189
Brightness [cd/m²] 500, 350 (shipment setting)
Contrast Ratio (typ.) 1200:1
Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn] 1.073 (10bit)
Response Time (typ.) [ms] 8 (grey-to-grey)
Haze Level [%] Pro (28)
Supported Orientation Face Up 1; Landscape; Portrait

RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1920 x 1080;1920 x 2160;3840 x 2160;4096 x 2160

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 91.1
Vertical Frequency [Hz] 24 - 85

CONNECTIVITY
Input Video Digital 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
Input Audio Analogue 1 x 3,5 mm jack
Input Audio Digital 2 x DisplayPort; 3 x HDMI
Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
Output Audio Analogue 1 x 3,5 mm jack
Output Control 1 x LAN 100Mbit

OPEN MODULAR INTELLIGENCE
OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W] 4.7 / 75
Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard)

SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Human Sensor Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
NFC Sensor Integrated, 2cm range, free NEC Android App required

ELECTRICAL
Power Consumption Eco/max. [W] 155 shipping; 210 (max.)
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80

MECHANICAL
Dimensions (W x H x D) [mm] Without stand: 1,681 x 960 x 71
Weight [kg] 53
Bezel Width [mm] 14.8 (left and right); 14.8 (top and bottom)
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 1,830 x 1,190 x 280
Packaging Weight [kg] 65.5
Colour Bezel Pantone 426M (black)
Material Metal

MEDIAPLAYER
Supported File Storage / File System MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling

AVAILABLE OPTIONS
Accessories Feet (ST-801); Speaker (SP-754QSM, SP-TF1); Trolley (PD02MHA, PD03MHA, PDMHM-L); Wall mount (PDW T XL-2)
Compute Module Slot NEC Compute Module; Raspberry Pi Compute Module 1 and 3
OPS Slot HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI

GREEN FEATURES
Energy Efficiency Ambient light sensor; Carbon savings meter; ECOMode; Energy consumption: 145 kWh/1000 h; Energy efficiency class: G; Local dimming

ADDITIONAL FEATURES
Special Characteristics 12-bit Look Up table; Ambient Light Sensor; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Removable Logo; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log function
Colour Versions optional coloured overframes
Safety and Ergonomics CE; EAC; EMC Class B; FCC; SASO; TÜV GS; UL/C-UL or CSA; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Remote Control; USB cable
Warranty 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 2
Operating Hours 24/7
