NEC

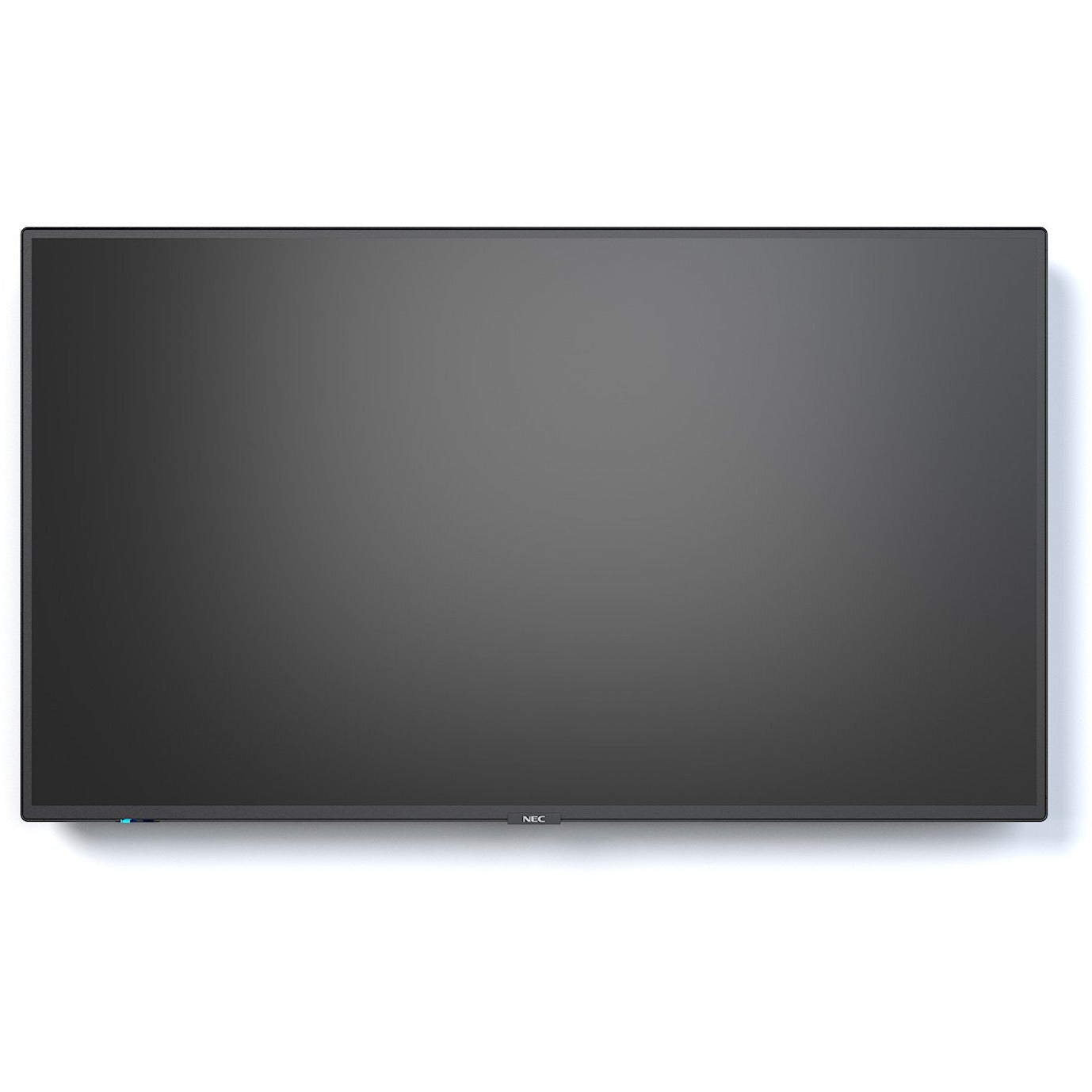

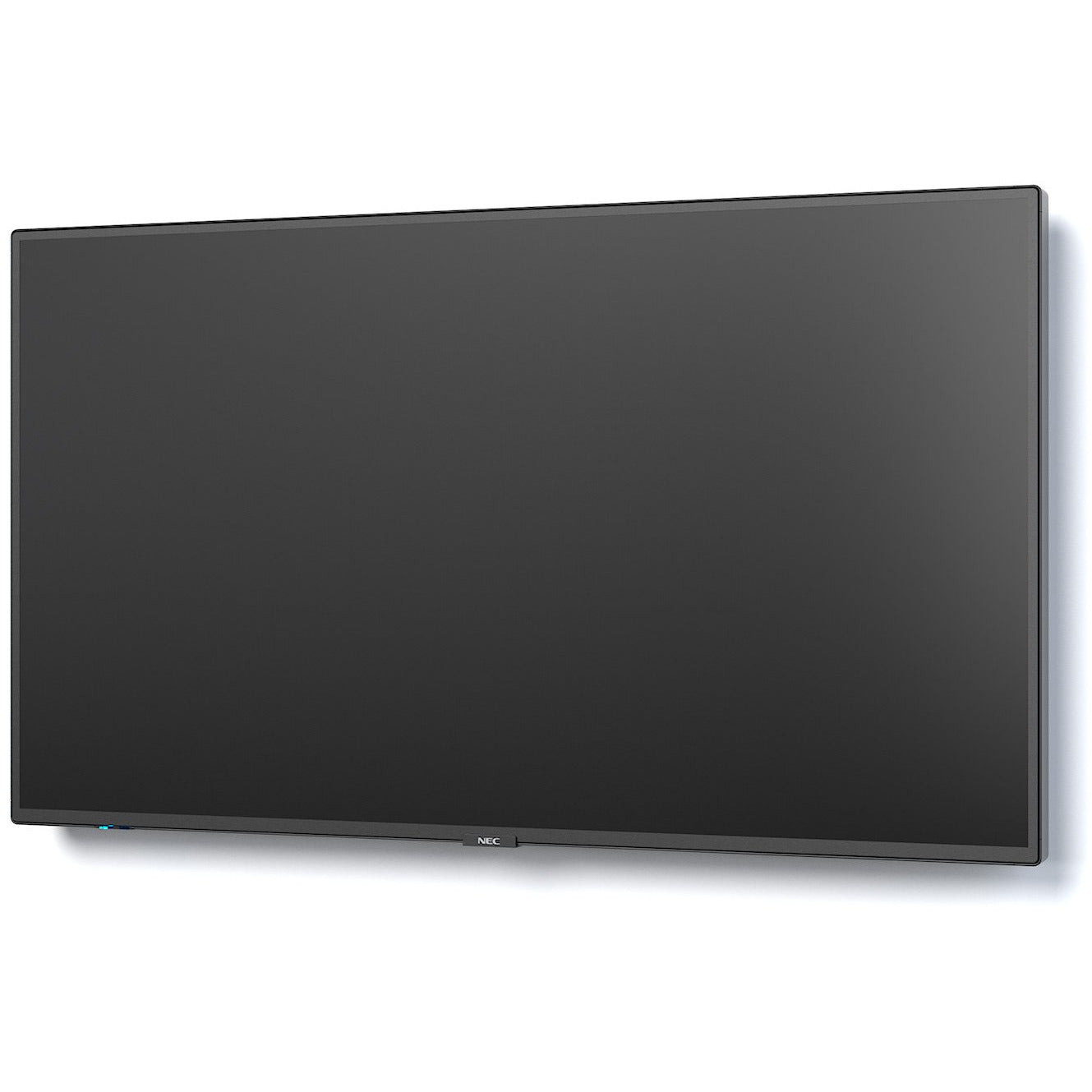

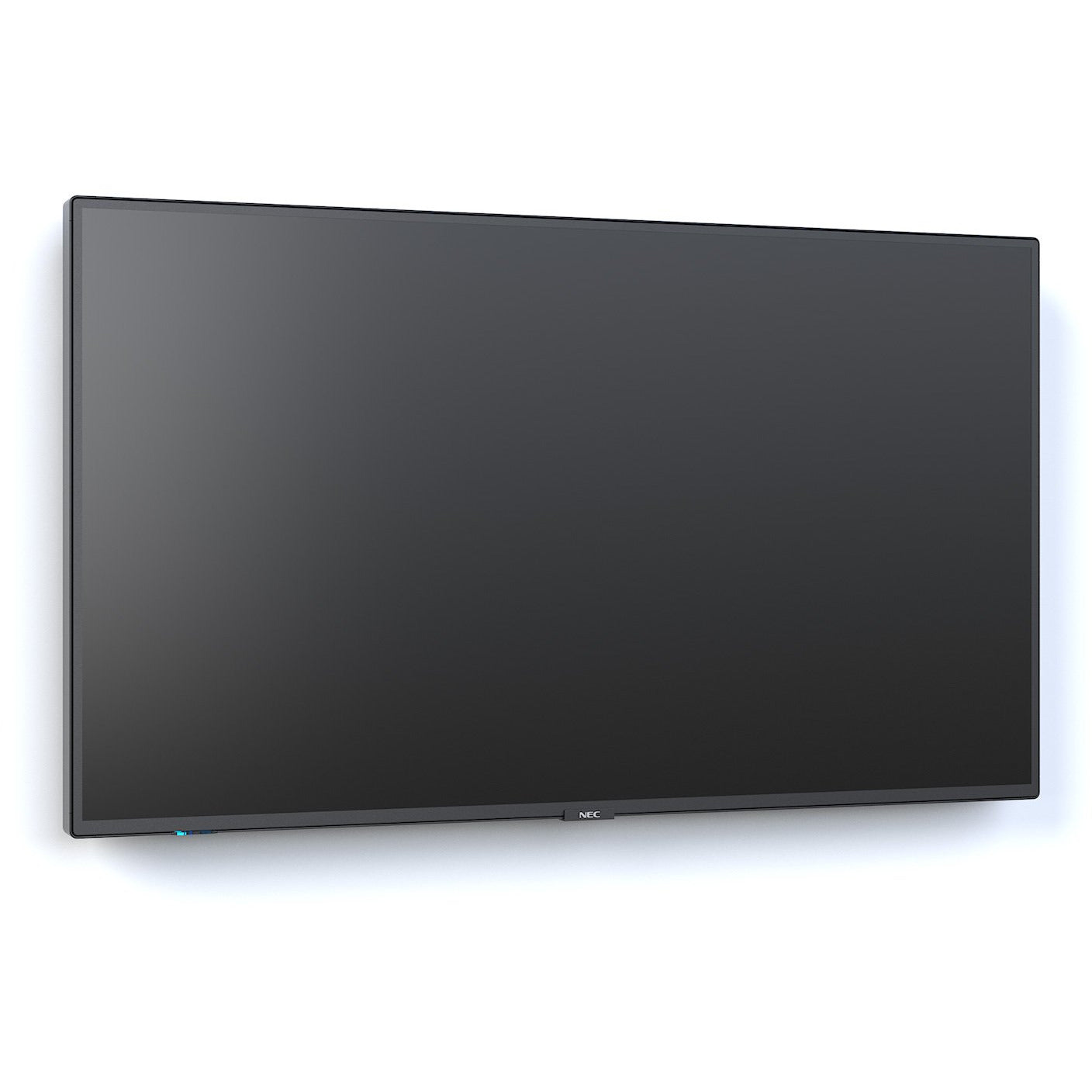

NEC MultiSync® P435-MPi4 LCD 43" Professional Large Format Displays (incl. NEC MediaPlayer)

NEC MultiSync® P435-MPi4 LCD 43" Professional Large Format Displays (incl. NEC MediaPlayer)

Out of stock

SKU:60005376

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

When imaging precision cannot be compromised

When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSync® P series presents best-in-class performance with an advanced feature set for mission-critical applications.

Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring the pre-installed NEC MediaPlayer you get an out of the box signage experience and can playback the content needed for your application: video, picture, html or use any of the supported Content Management Systems (CMS).

For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P-MPi4 series is trusted for safety and long-life, fit-for-purpose performance..

Benefits

  • Wide colour gamut – high-performance panel technology delivers a wider spectrum of colours for a superb visual experience
  • Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
  • Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
  • Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation

DISPLAY

Panel Technology IPS with Edge LED backlights
Screen Size [inch/cm] 43 / 108
Aspect Ratio 16:9
Brightness [cd/m²] 700
Contrast Ratio ≥ 8000:1 1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (10bit)
Colour Gamut 86% of DCI
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (28)

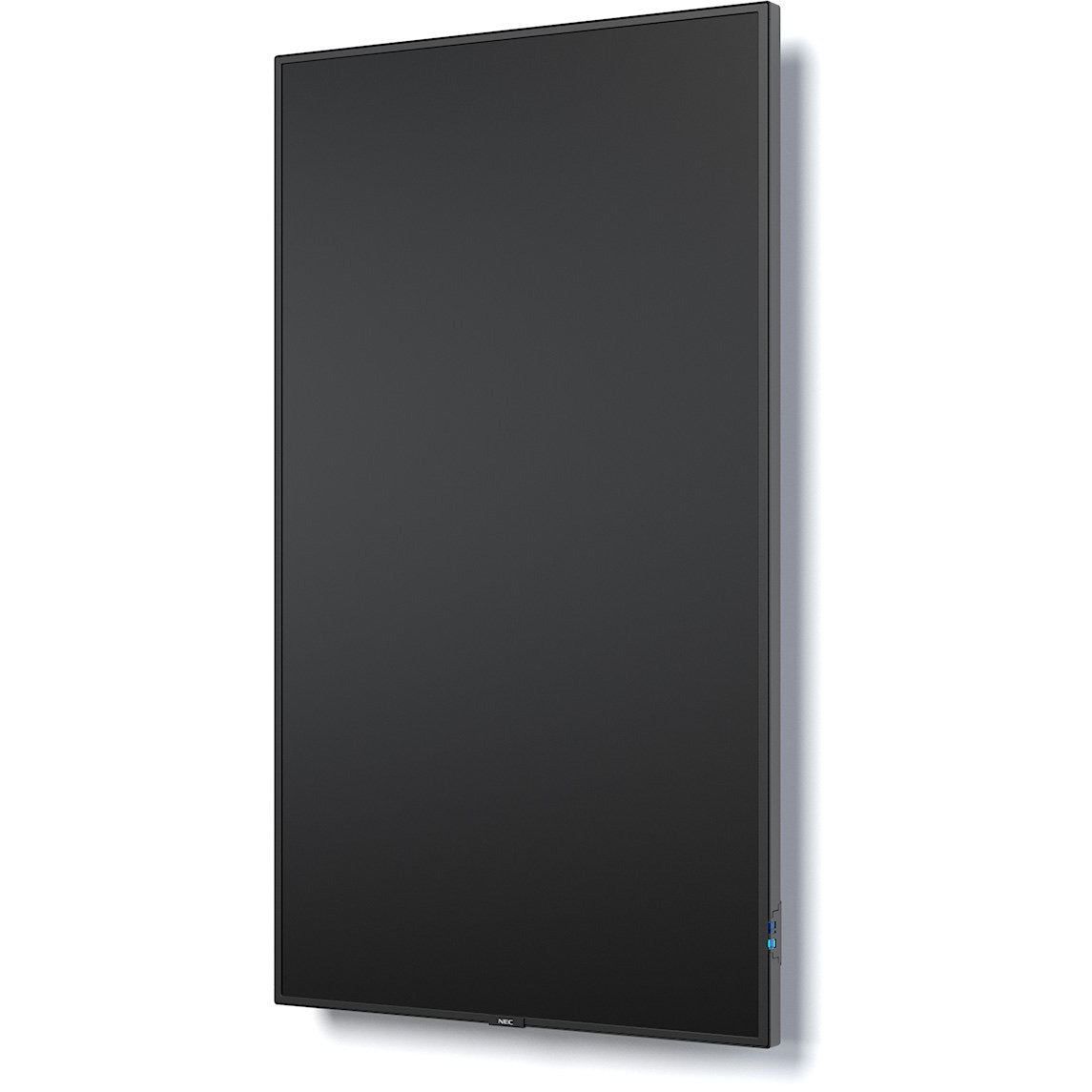

Supported Orientation Landscape, Portrait, Face Up, Face Down 2
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1400 x 1050;1440 x 900;1600 x 1200;1920 x 1080;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160;7680 x 4320
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 15 - 135
Vertical Frequency [Hz] 23 - 76
CONNECTIVITY
Input Video Digital 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC)
Output Audio Analogue 1 x 3,5 mm jack
Output Control 1 x LAN 100Mbit
Input Detect Custom; First; Last
PiP/PbP Dual-Split; Quad-Split; scalable picture size
CALIBRATION
Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB) PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software NEC Display Wall Calibrator
OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot RPi Compute Module 4
SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
ELECTRICAL
Power Consumption Eco/max. [W] 90 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60
MECHANICAL
Dimensions (W x H x D) [mm] 968.2 x 561 x 67.1
Weight [kg] 18.5
Bezel Width [mm] 11 (left, right and top); 15.6 (bottom)
VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 1,120 x 700 x 203
Packaging Weight [kg] 23
Colour Bezel Pantone 426M (black)
Material Metal

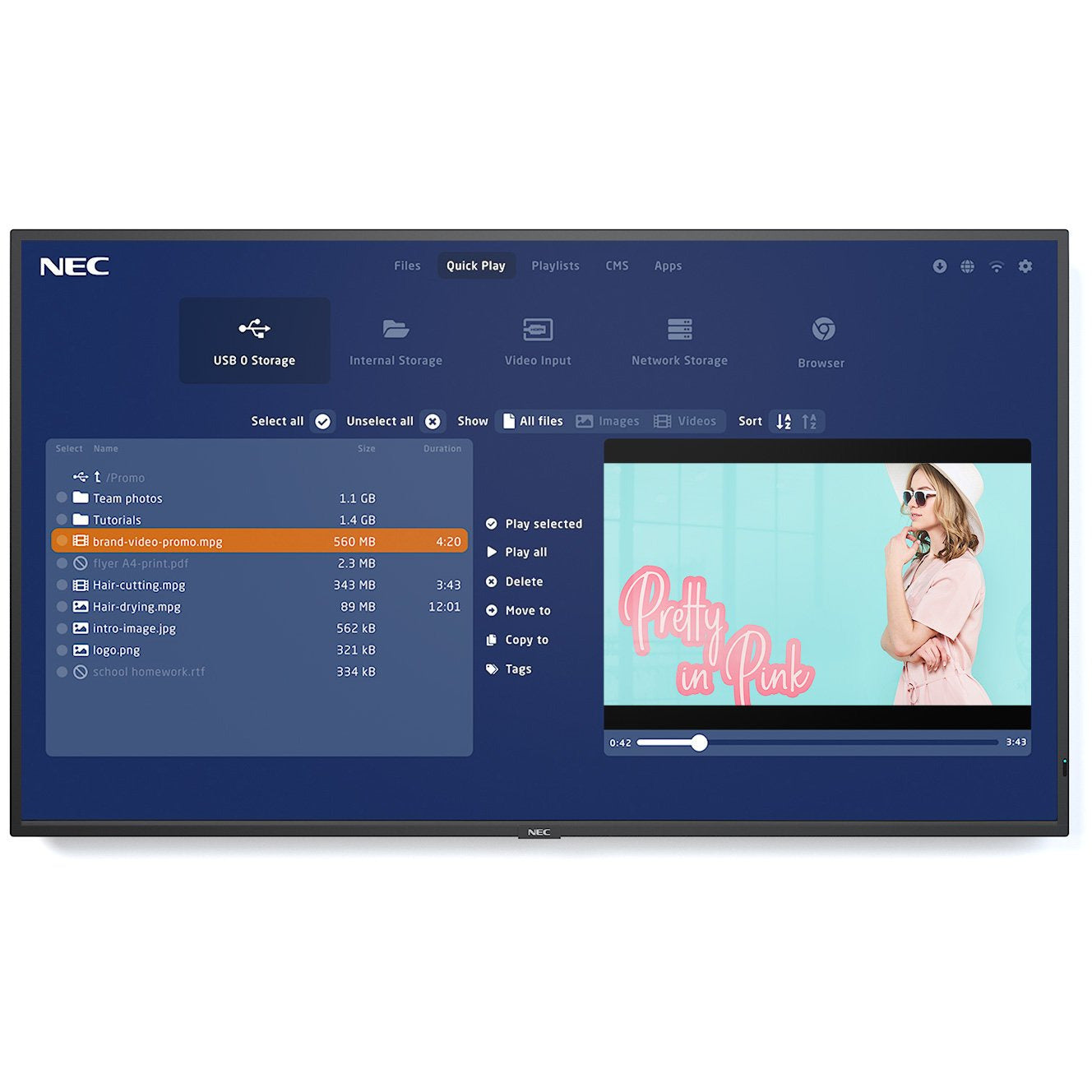

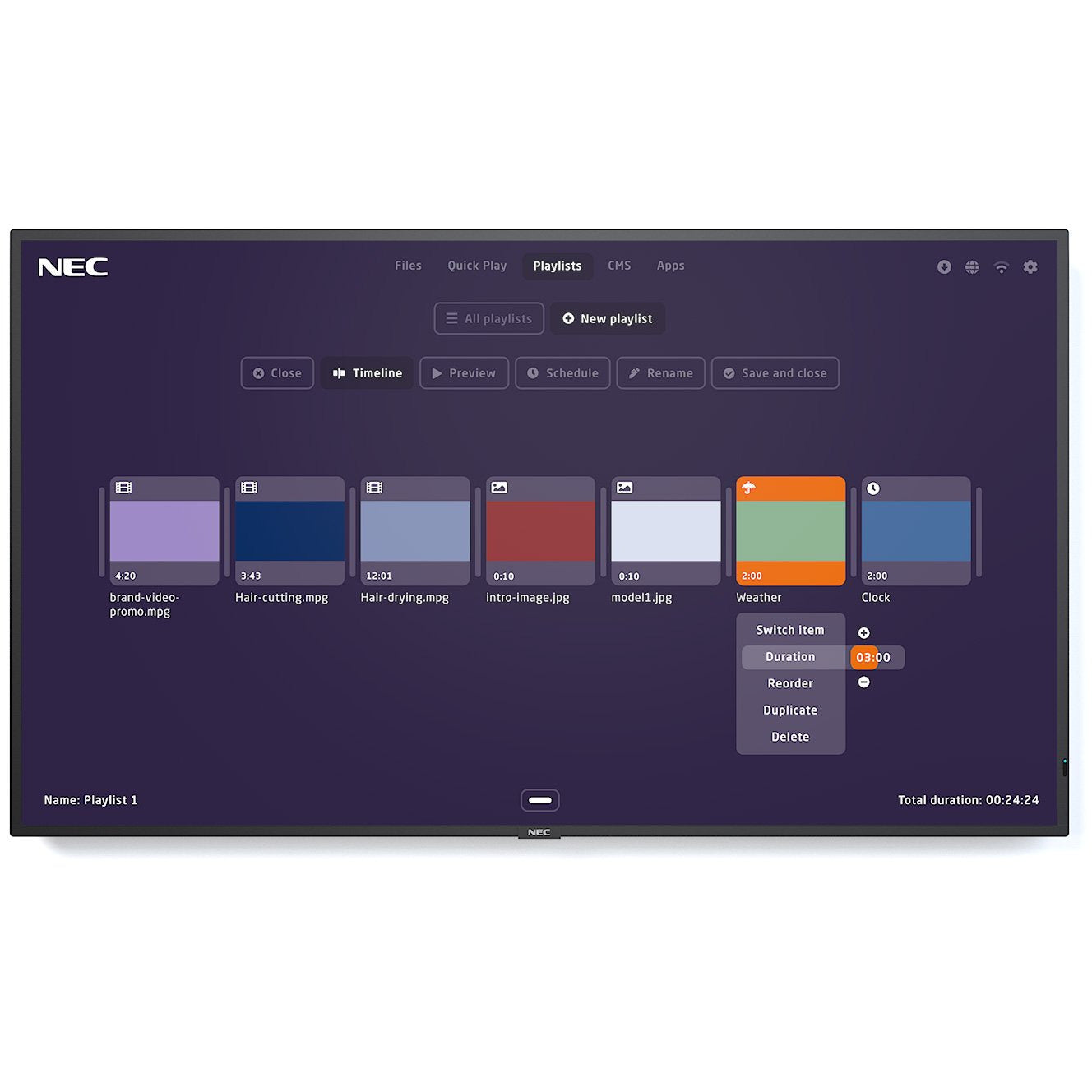

MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Internal Storage 32GB eMMC (2GB occupied by OS, 28GB available for files)
Processor Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz
Supported Image Formats JPG / JPEG; PNG
Supported Video Formats MP4 / MOV /AVI / MPEG/ WMV / MPG / M4V / VOB / MKV (H.265); MPEG-2; M4K; VP8 / VP9; HTML5
Supported Audio Formats MP3; AAC; AC-3
AVAILABLE OPTIONS
Accessories Feet (ST-401/ST-43M); Soundbar (passive: SP-PSCM-IQ / SP-PSCM); Speaker (SP-TF1, SP-RM3); Trolley (PDMHM-L); Wall mount (PDW C L and P, PD02W T M L, PD03W T M P)
GREEN FEATURES
Energy Efficiency Energy consumption: 87 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0
ADDITIONAL FEATURES
Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3
Operating Hours 24/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
