NEC MultiSync® ME551-MPi4 LCD 55" Midrange Large Format Display (incl. NEC MediaPlayer)
NEC MultiSync® ME551-MPi4 LCD 55" Midrange Large Format Display (incl. NEC MediaPlayer)
Out of stock
SKU:60005374
Digital Signage and real-time information deployed easily
Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.
The MultiSync® ME-MPi4 displays offer out-of-the-box playback for local retailers, restaurants and small business enterprises. With the NEC MediaPlayer you can deliver dynamic advertising and infotainment to your customers whilst benefiting from the efficiencies gleaned through digitisation.

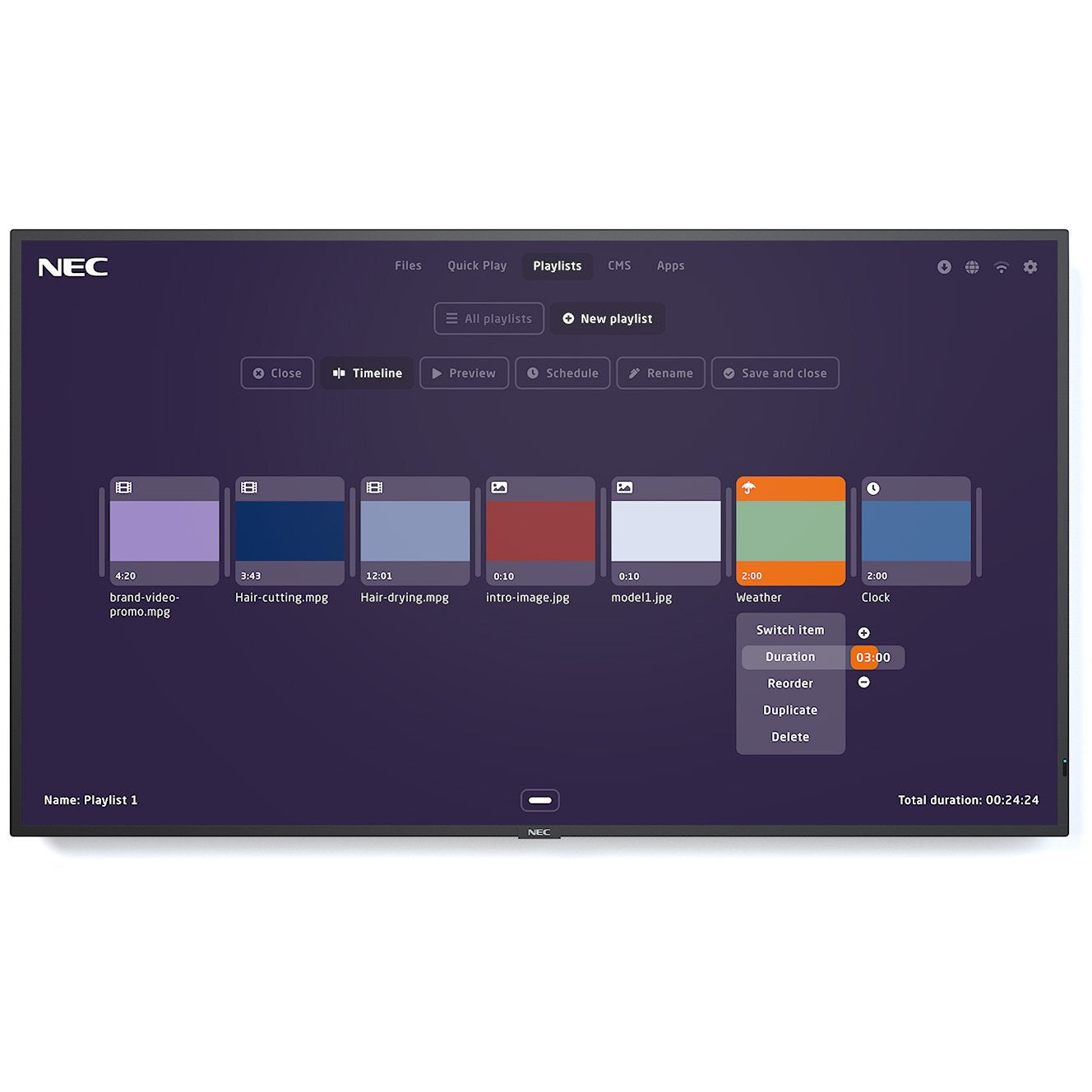

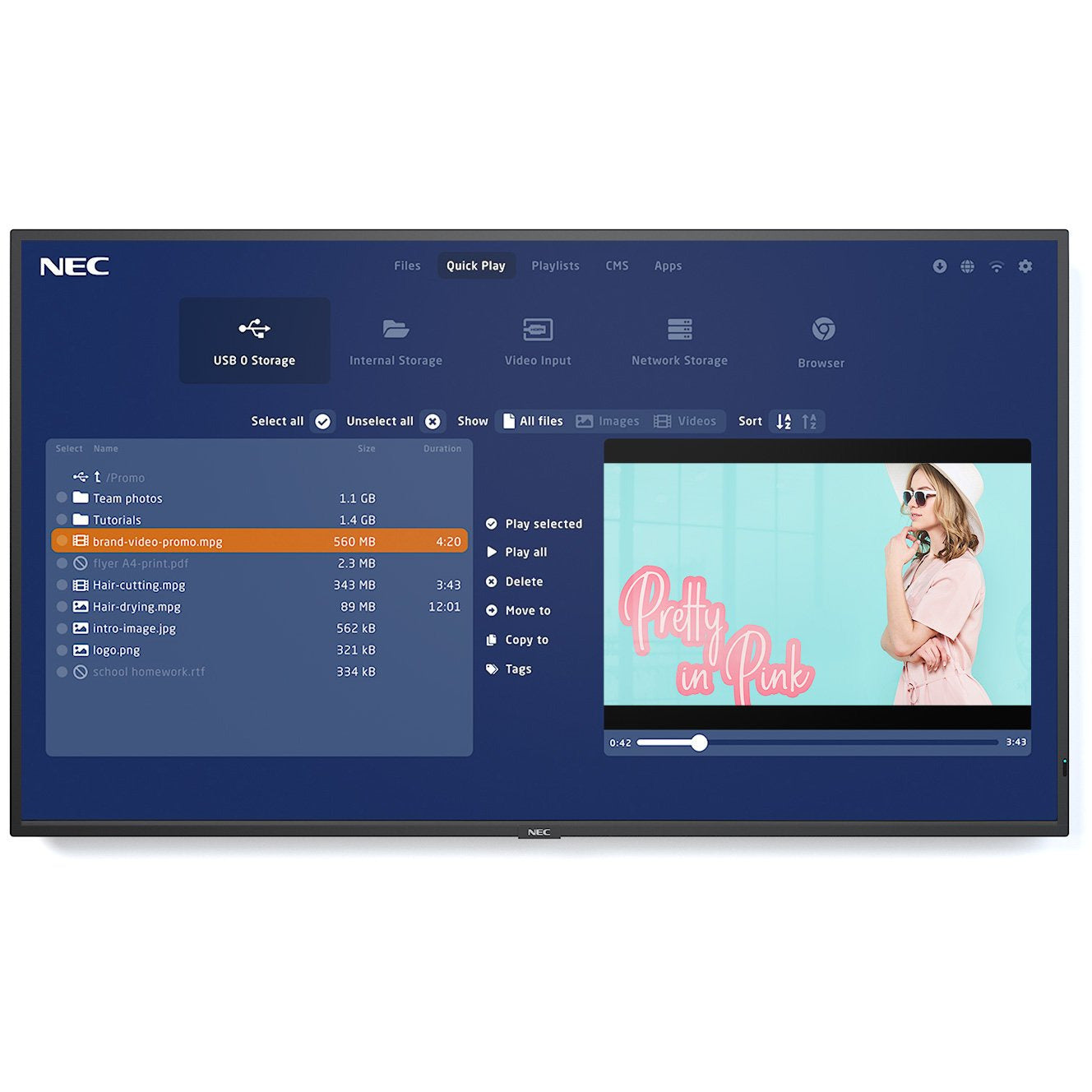

Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.
Benefits
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
- Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
- Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
DISPLAY
Panel Technology | IPS with Direct LED backlights |
Screen Size [inch/cm] | 55 / 138.8 |
Aspect Ratio | 16:9 |
Brightness [cd/m²] | 400 |
Contrast Ratio | ≥ 8000:1 1 |
Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
Colour Depth [bn] | 1.073 (8bit + FRC) |
Response Time (typ.) [ms] | 8 |
Panel Refresh Rate [Hz] | 60 |
Haze Level [%] | Standard (1) |
Supported Orientation | Landscape; Portrait |
RESOLUTION
Native Resolution |
3840 x 2160
|
Supported Resolutions |
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
|
SYNCHRONISATION RATE
Horizontal Frequency [kHz] | 26 - 135 |
Vertical Frequency [Hz] | 23 - 86 |
CONNECTIVITY
Input Video Digital | 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
Input Data | 1 x USB 2.0 (MediaPlayer) |
Output Audio Analogue | 1 x 3,5 mm jack |
Input Detect | Custom; First; Last |
OPEN MODULAR INTELLIGENCE
Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
Compute Module Slot | RPi Compute Module 4 |
SENSORS
Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
ELECTRICAL
Power Consumption Eco/max. [W] | 120 shipping |
Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
Power Management | VESA DPMS |
Power Supply | 100-240 V AC; 50/60 Hz; internal |
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] | +0 to +40 |
Operating Humidity [%] | 20 to 80 |
Storage Humidity [%] | 10 to 90 |
Storage Temperature [°C] | -20 to 60 |
MECHANICAL
Dimensions (W x H x D) [mm] | 1,241.8 x 712.6 x 62.6 |
Weight [kg] | 19.8 |
Bezel Width [mm] | 13.9 |
VESA Mounting [mm] | 4 holes; 400 x 400 (FDMI); M6 |
Ingress Protection | IP5x (front); IP2x (back) |
Packaging Dimensions (W x H x D) [mm] | 1,430 x 920 x 250 |
Packaging Weight [kg] | 29.4 |
Colour Bezel | Pantone 426M (black) |
Material | Metal |
MEDIAPLAYER
Supported File Storage / File System | USB 2.0 / FAT16, FAT32 |
Internal Storage | 32GB eMMC (2GB occupied by OS, 28GB available for files) |
Processor | Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz |
Supported Image Formats | JPG / JPEG; PNG |
Supported Video Formats | MP4 / MOV /AVI / MPEG/ WMV / MPG / M4V / VOB / MKV (H.265); MPEG-2; M4K; VP8 / VP9; HTML5 |
Supported Audio Formats | MP3; AAC; AC-3 |
AVAILABLE OPTIONS
Accessories | Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P) |
GREEN FEATURES
Energy Efficiency | Energy consumption: 118 kWh/1000 h; Energy efficiency class: G; LED backlight |
Ecological Standards | EnergyStar 8.0 |
ADDITIONAL FEATURES
Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
Pixel Failure Class | ISO 9241-307, Class 1 |
Audio | Integrated Speakers (10 W + 10 W) |
Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual |
Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2 |
Operating Hours | 18/7 |
External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
