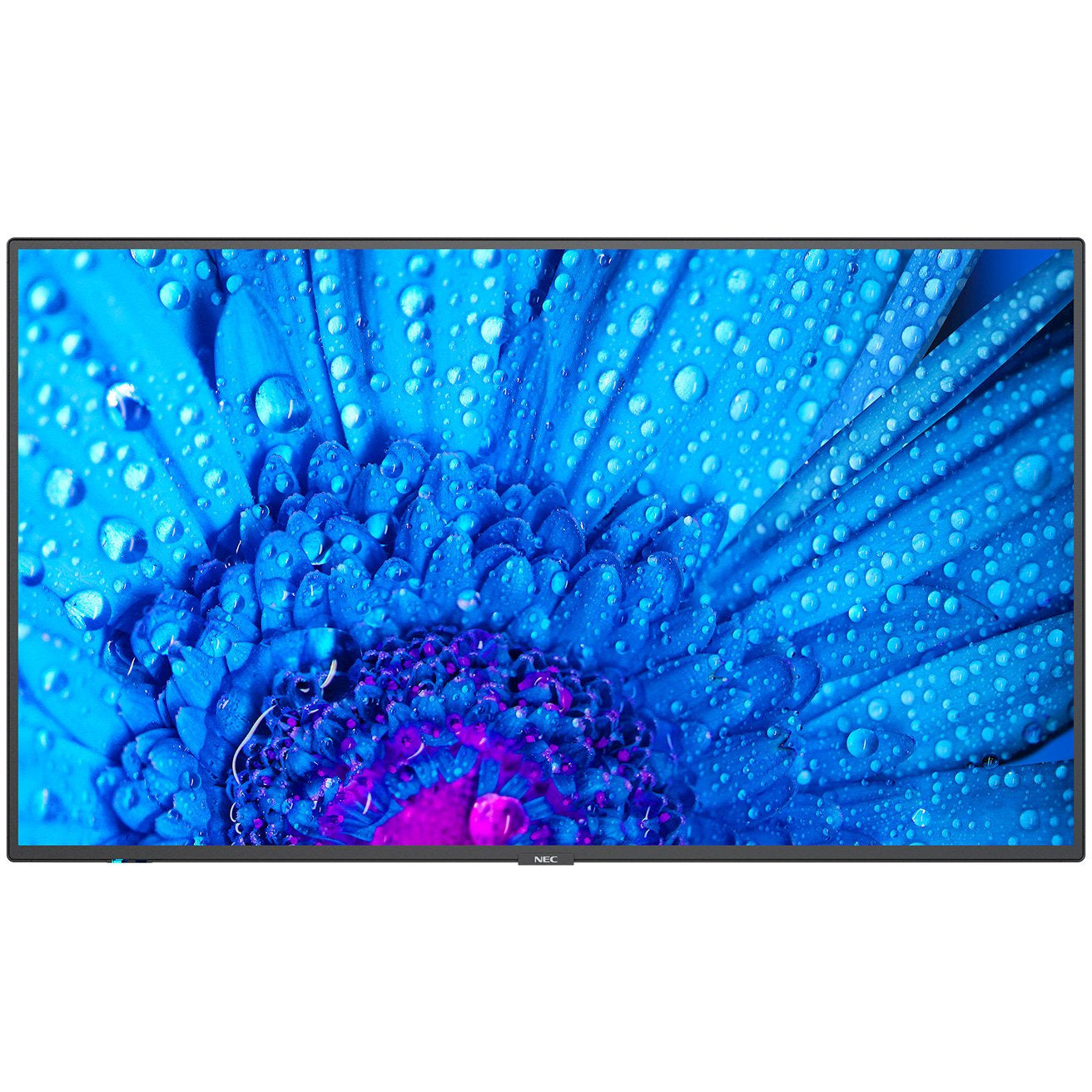

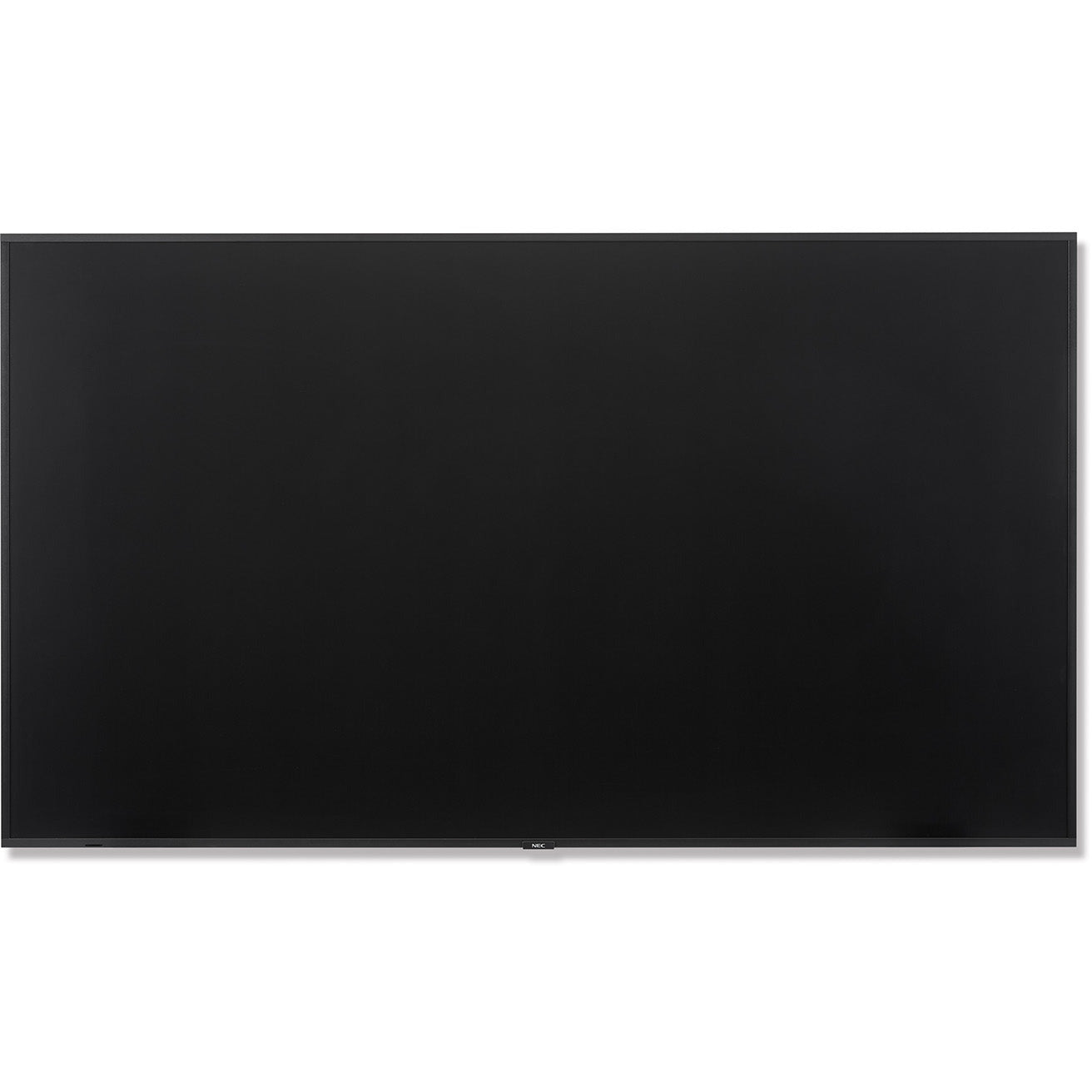

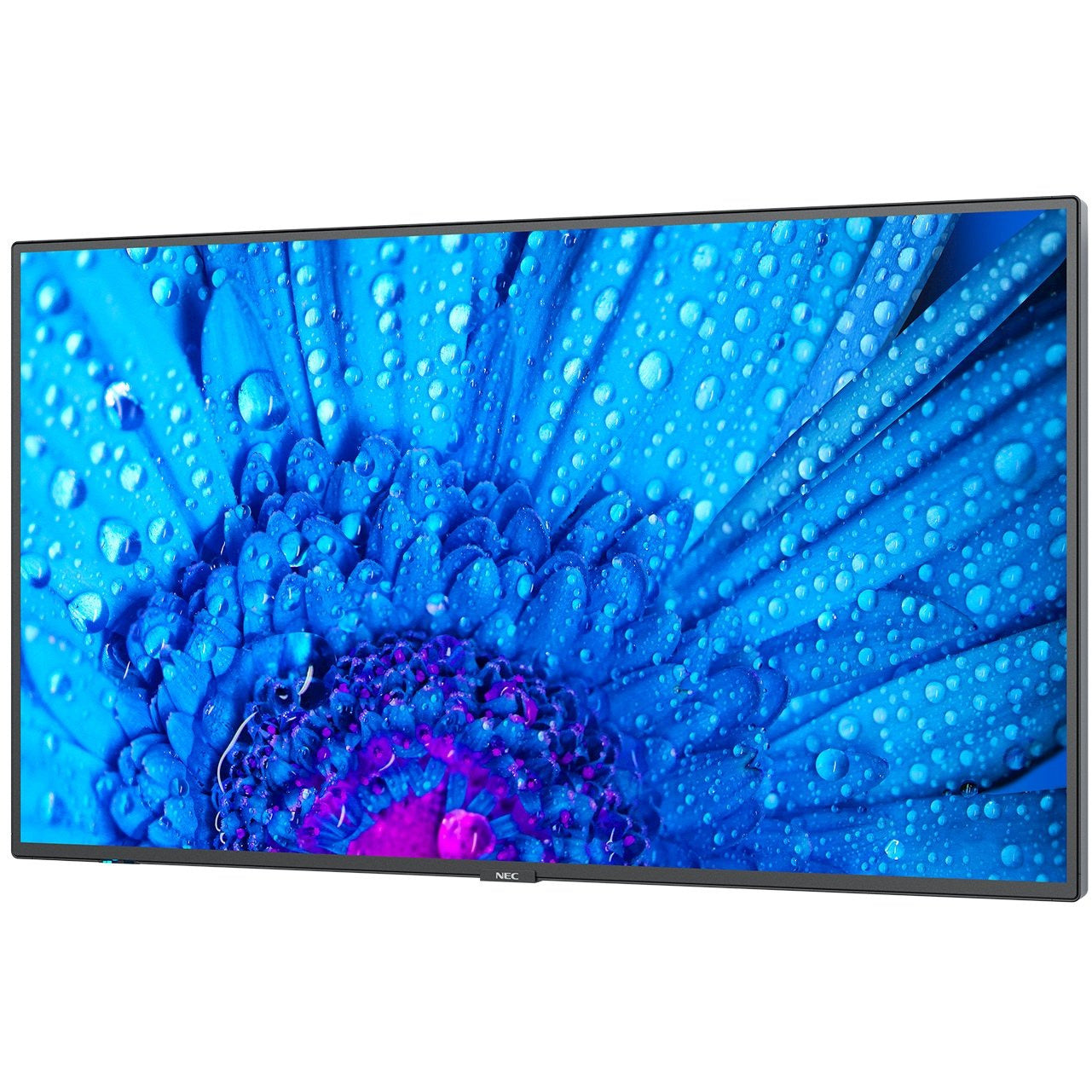

NEC MultiSync® M861 LCD 86" Message Large Format Display

NEC MultiSync® M861 LCD 86" Message Large Format Display

Low stock

SKU:60005067

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Intuitive professional content delivery

Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.

With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.

Benefits

  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  • Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

DISPLAY

Panel Technology IPS with Direct LED backlights
Screen Size [inch/cm] 86 / 217.4
Aspect Ratio 16:9
Brightness [cd/m²] 500
Contrast Ratio ≥ 8000:1 1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (10bit)
Colour Gamut 68% of DCI
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (28)

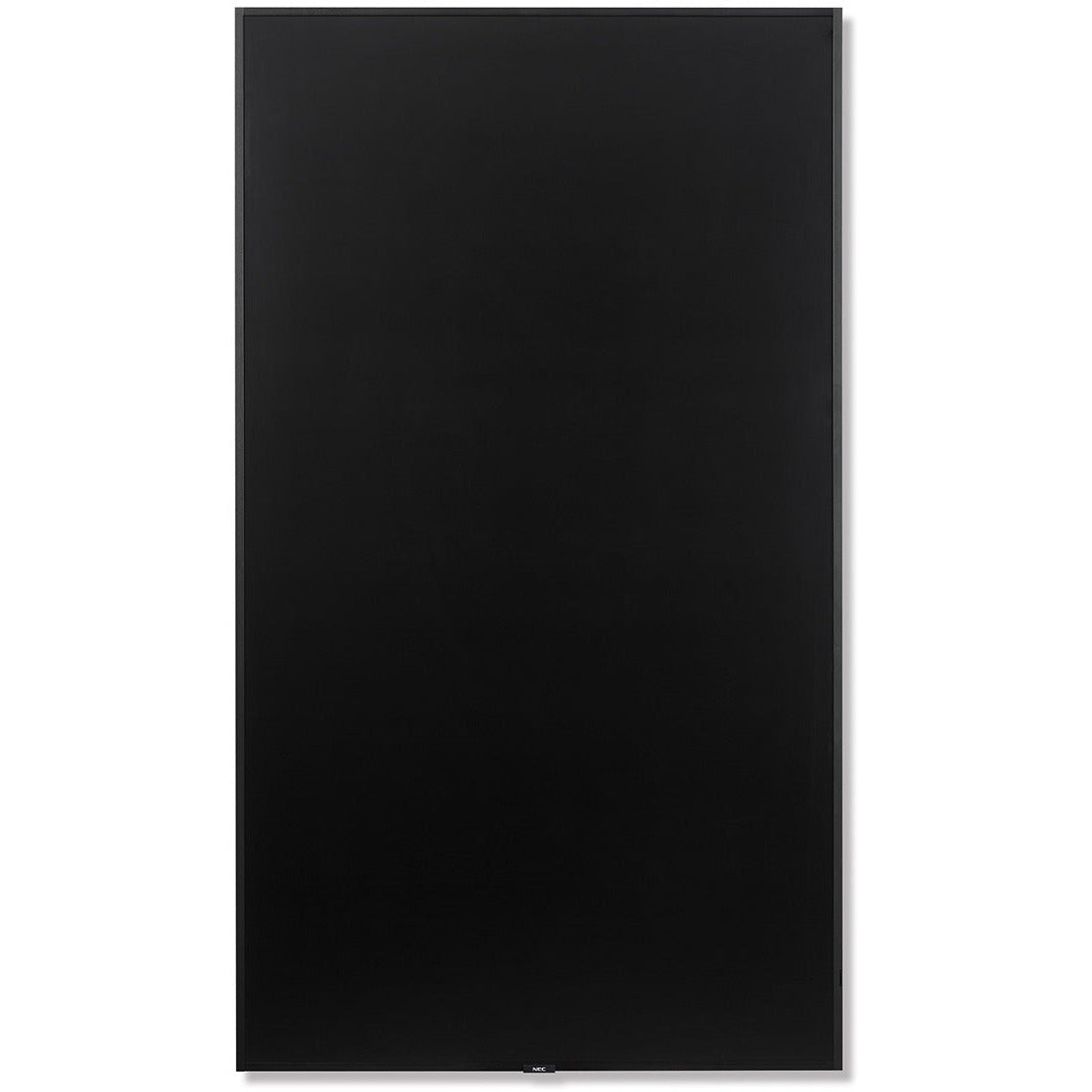

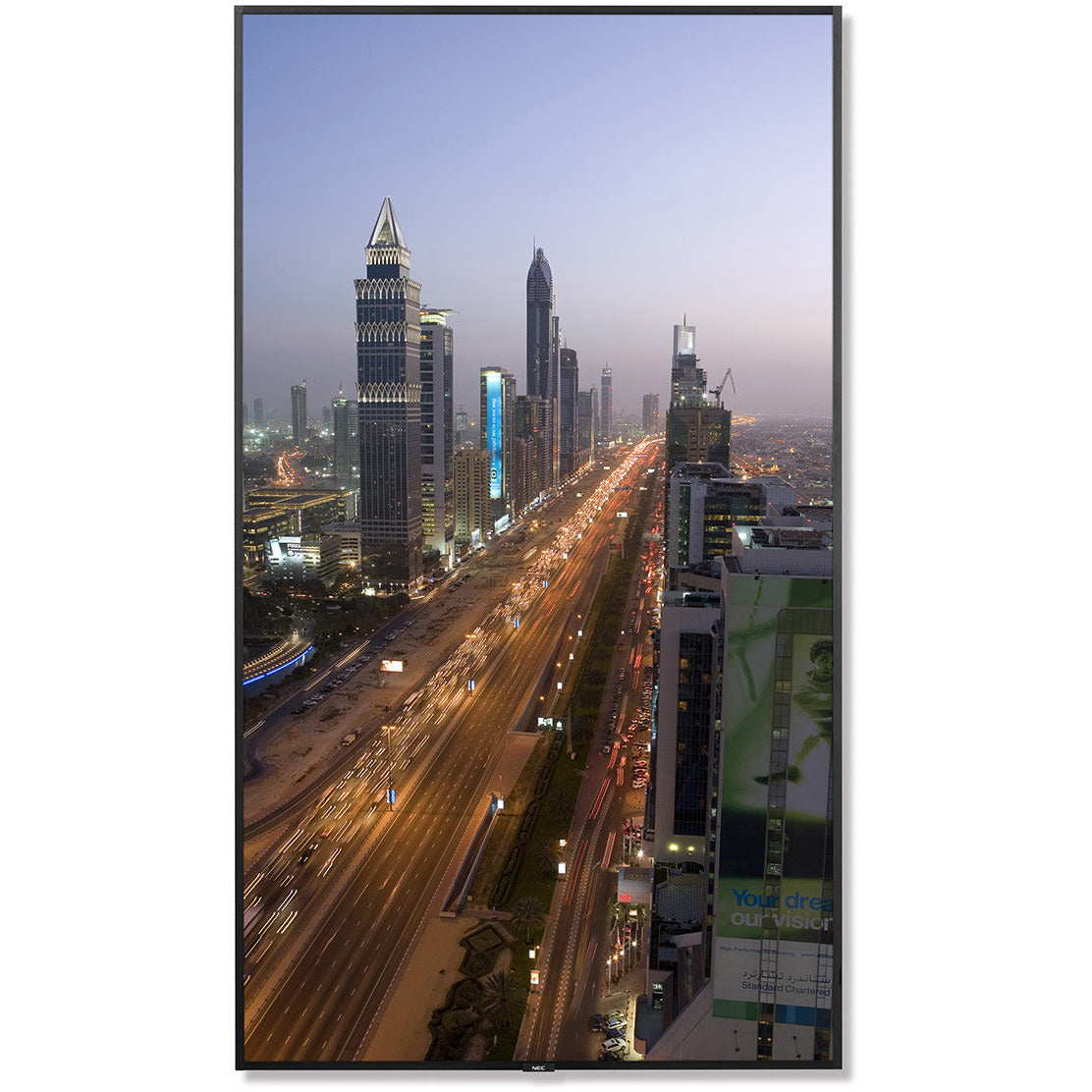

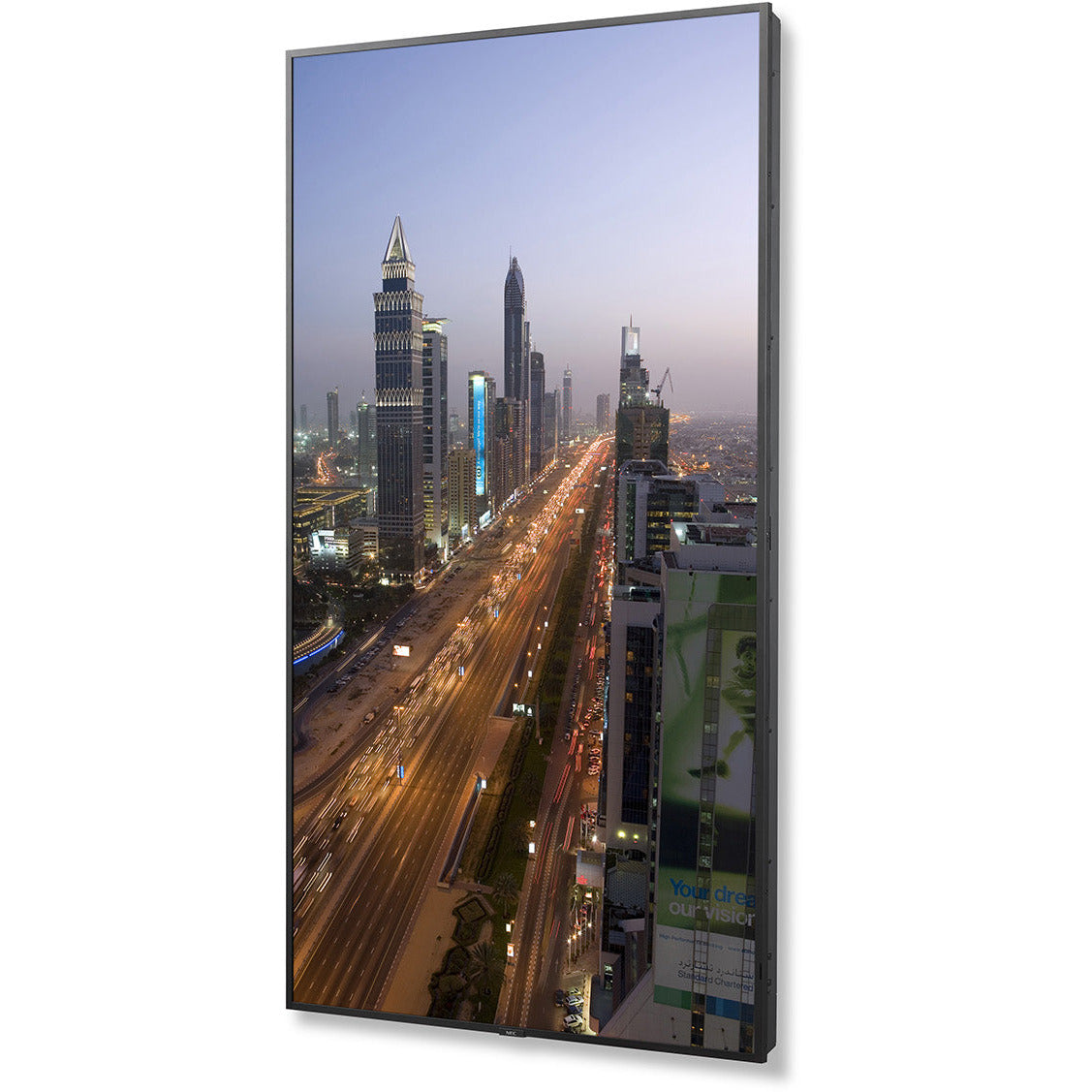

Supported Orientation Landscape; Portrait

RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160;7680 x 4320

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 15 - 135
Vertical Frequency [Hz] 23 - 76

CONNECTIVITY
Input Video Digital 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC); DP (in) to HDMI (out) conversion
Output Audio Analogue 1 x 3,5 mm jack
Output Control 1 x LAN 100Mbit
Input Detect Custom; First; Last
PiP/PbP Dual-Split; Quad-Split; scalable picture size

CALIBRATION
Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB) PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software NEC Display Wall Calibrator

OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot RPi Compute Module 4

SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable

ELECTRICAL
Power Consumption Eco/max. [W] 320 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 80
Storage Temperature [°C] -20 to 60

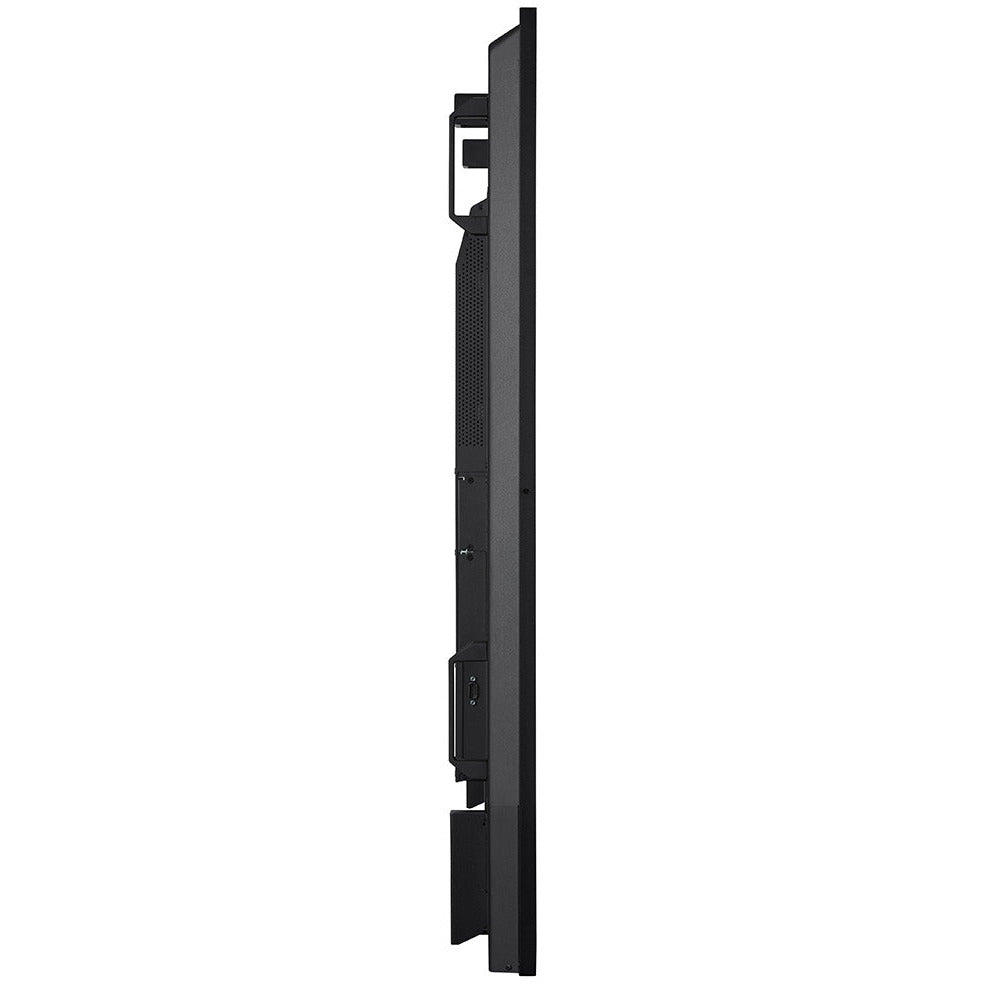

MECHANICAL

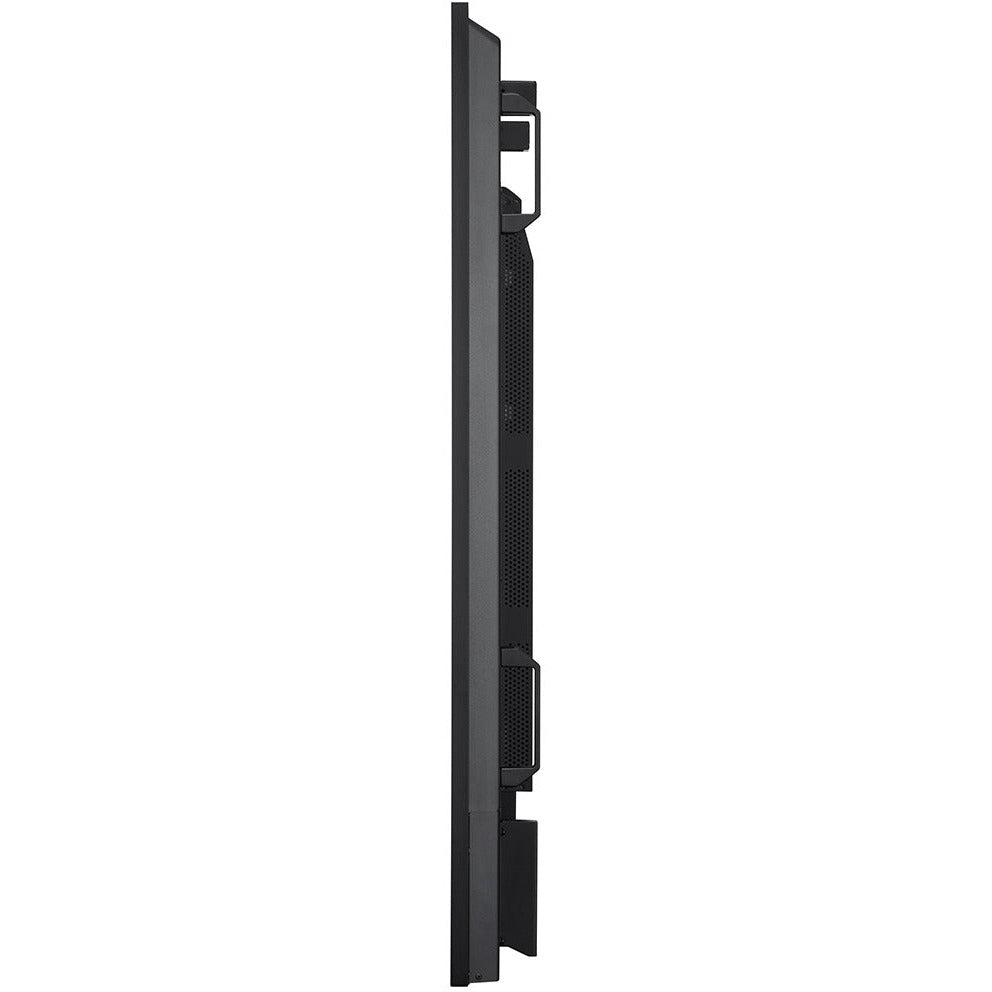

Dimensions (W x H x D) [mm] 1,927.6 x 1,099.1 x 83.2
Weight [kg] 47
Bezel Width [mm] 14.3 (left, right and top); 14.8 (bottom)

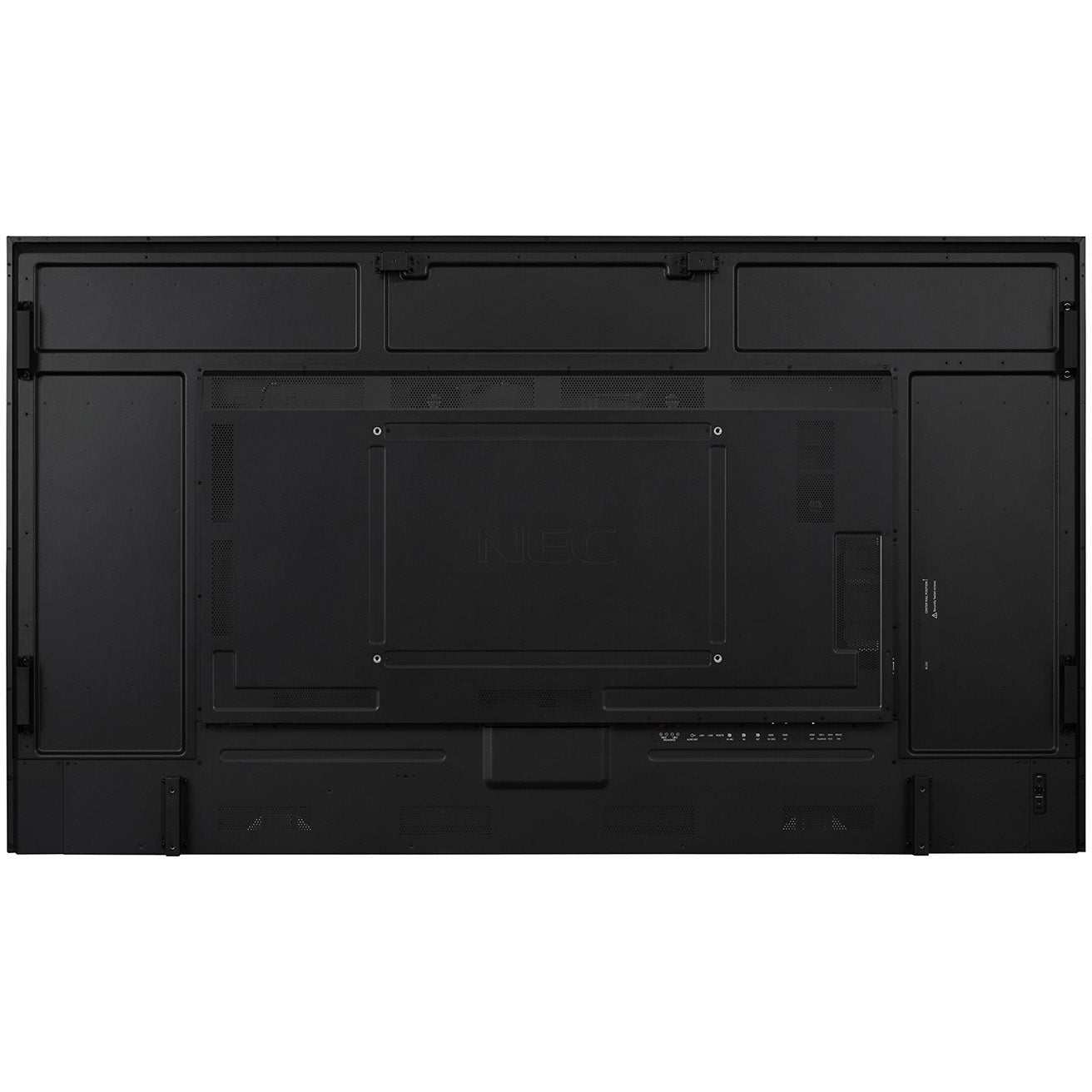

VESA Mounting [mm] 4 holes; 600 x 400 (FDMI); M8
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 2,090 x 1,225 x 225
Packaging Weight [kg] 65.1
Colour Bezel Pantone 426M (black)
Material Metal

AVAILABLE OPTIONS

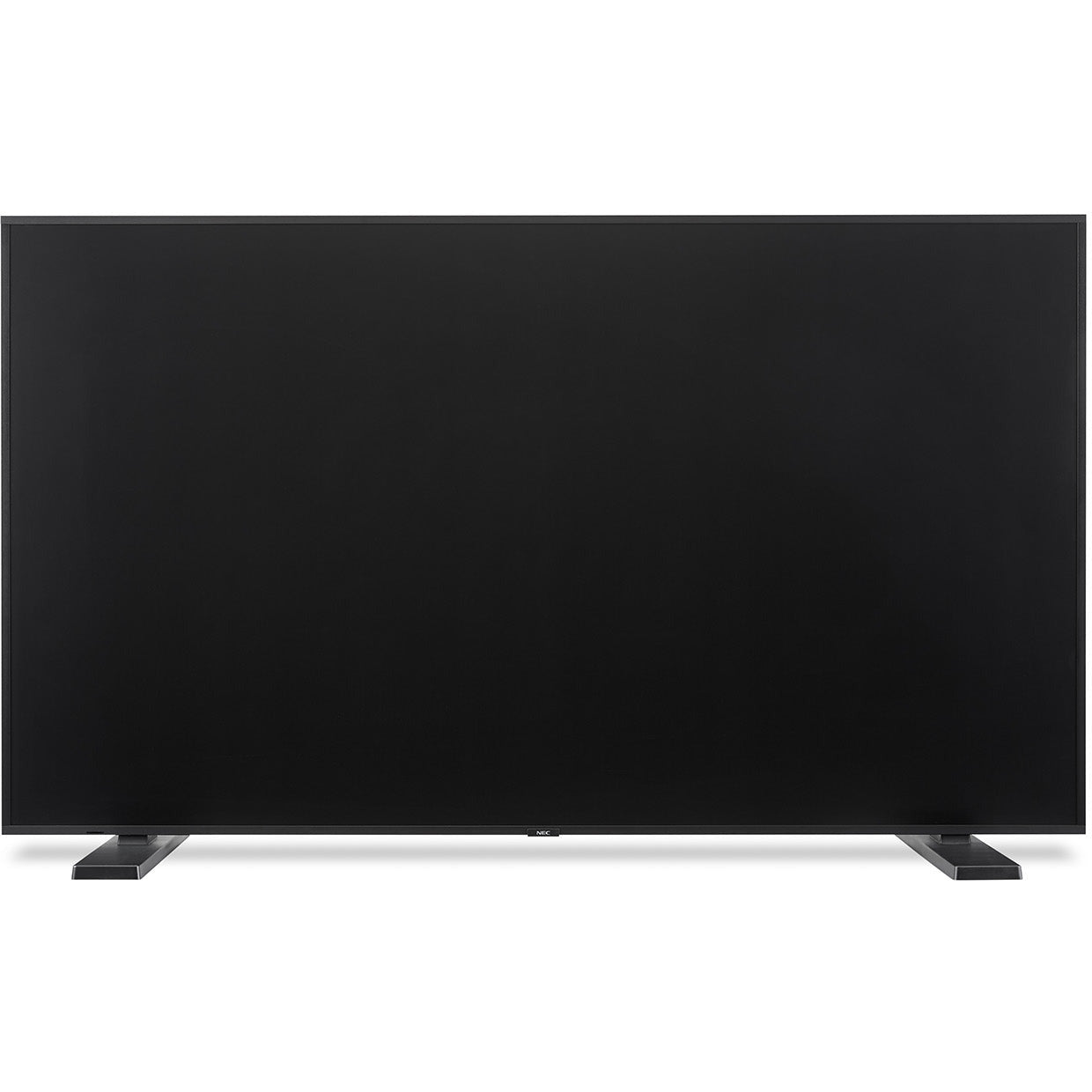

Accessories Feet (ST-801); Speaker (SP-RM3); Trolley (L20PNSR780MEU, PD02MHA, PD03MHA); Wall mount (L20PNWALL90EU, SF680P)

GREEN FEATURES
Energy Efficiency Energy consumption: 193 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0

ADDITIONAL FEATURES
Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours 24/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
