NEC

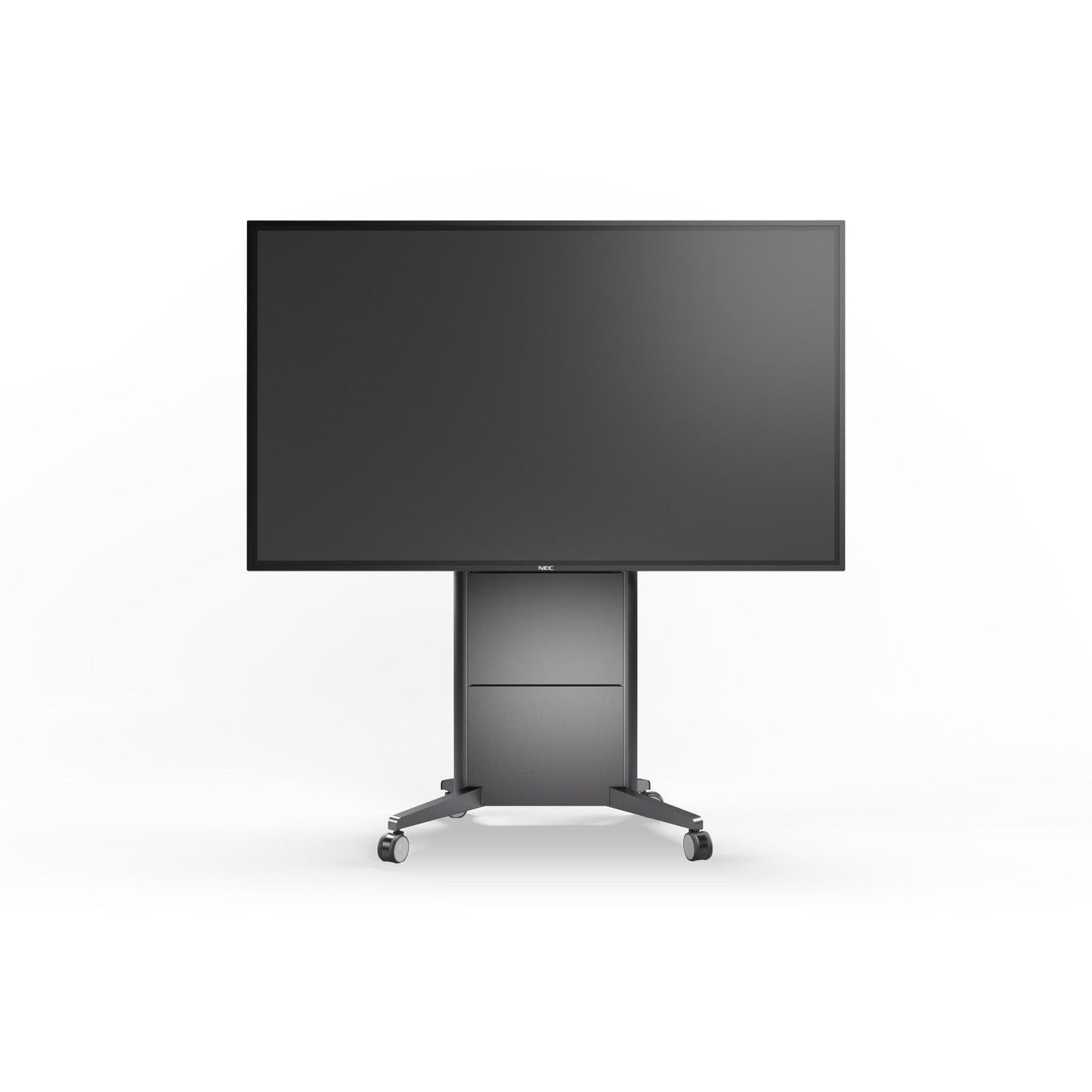

NEC MultiSync® M651 IGB LCD 65" InGlass™Touch Display
NEC MultiSync® M651 IGB LCD 65" InGlass™Touch Display
Out of stock
SKU:60005426
Couldn't load pickup availability
Enjoy the most natural interactive digital experience
Modern meeting spaces drive the demand for advanced touch technology with innovative design. To support interactive sessions, the NEC InGlassTM Touch Board along with the responsive passive pen brings superior paper-like writing with minimal latency to a digital canvas. With its slim bezel design, the technology seamlessly integrates into modern interior styling.
High brightness levels ensure excellent readability and image reproduction even in today’s typically bright meeting spaces where maintaining a motivational environment is paramount. The anti-glare coating minimizes disturbing reflections and helps to eliminate niggling fingerprints on the touch surface.
Benefits
- Best-in-class visual performance – benefit from a „pixel-free“ Ultra-High Definition (UHD) visual performance.
- Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.

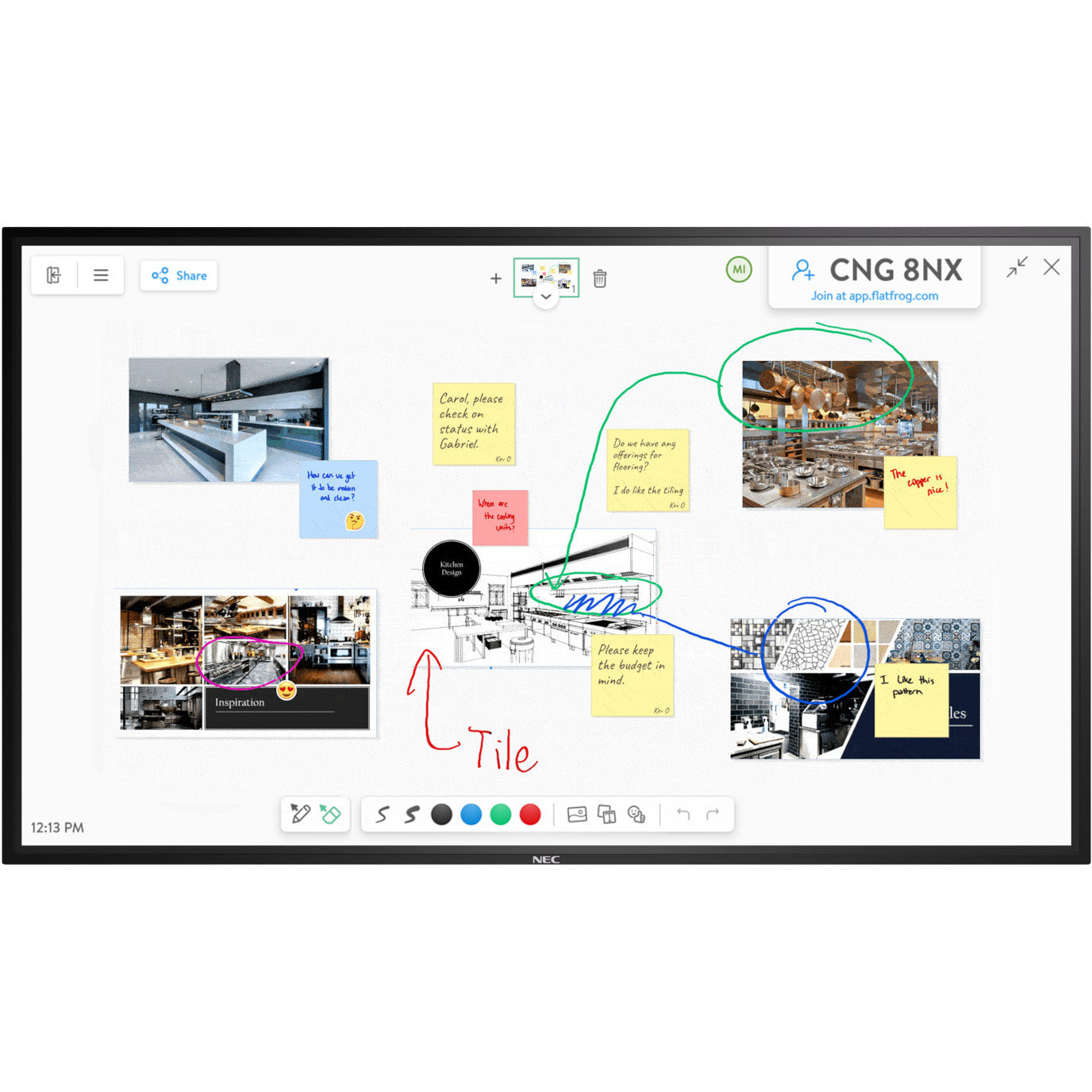

- Be more productive – get a free version of FlatFrog Board for Rooms! FlatFrog Board whiteboard software makes hybrid work easy and equally productive for everyone.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
DISPLAY
| Panel Technology | IPS with Direct LED backlights |
| Screen Size [inch/cm] | 65 / 163.9 |
| Aspect Ratio | 16:9 |
| Brightness (without glass) [cd/m²] | 500 |
| Contrast Ratio (default) | > 8000:1 |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Colour Depth [bn] | 1.076 (10bit) |
| Response Time (typ.) [ms] | 8 |
| Panel Refresh Rate [Hz] | 60 |
| Supported Orientation | Face Up 1; Landscape; Portrait |
| Touch Technology | InGlass™ |
| Number of Touches | Real multi-touch up to 20 touches |
| Response Time [ms] | ≤ 15 |
| Touch Method | Finger; Gloves; Stylus (≥ 2 mm) |
| Supported Operating System | Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X; Raspberry Pi |
| Data Interface | USB-HID |
| Accuracy [mm] | < 1 |
| Palm Rejection | yes |
| Windows Ink | yes |
| Type | Premium toughened glass, anti-glare coating |
| Thickness [mm] | 3 |
| Haze Level [%] | ≦ 5 ± 3 |
| Hardness [H] | 7 |
| Native Resolution |
3840 x 2160
|
| Supported Resolutions |
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1900 x 1200;1920 x 1080;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
|
| Horizontal Frequency [kHz] | 26 - 91.1 |
| Vertical Frequency [Hz] | 23 - 86 |
| Input Video Digital | 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
| Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
| Input Data | 1 x USB 2.0 (MediaPlayer) |
| Output Audio Analogue | 1 x 3,5 mm jack |
| Input Detect | Custom; First; Last |
| Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi Compute Module 4 |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
| Power Consumption Eco/max. [W] | 120 shipping |
| Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Operating Temperature [°C] | +0 to +35 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 90 |
| Storage Temperature [°C] | -20 to 60 |
| Dimensions (W x H x D) [mm] | 1,501.3 x 879 x 73.2 |
| Weight [kg] | 53.5 |
| Bezel Width [mm] | 18.5 (left and right); 18.5 (top and bottom) |
| VESA Mounting [mm] | 4 holes; 400 x 400 (FDMI); M8 |
| Ingress Protection | IP5x (front); IP2x (back) |
| Packaging Dimensions (W x H x D) [mm] | Box 1: 1,736 x 1,033 x 280 |
| Packaging Weight [kg] | Box 1: 65 |
| Supported File Storage / File System | USB 2.0 / FAT16, FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
| Accessories | Presence Sensor (KT-RC3); Soundbar (SP-ASCM-IQ2; SP-ASCM-2); Speaker (SP-RM3a); Wall mount (PDW T XL-2) |
| Energy Efficiency | Energy consumption: 116 kWh/1000 h; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W) |
| Safety and Ergonomics | CE; EAC; RoHS |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Audio | Integrated Speakers (10 W + 10 W) |
| Shipping Content | 2 x Stylus; 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual; USB cable |
| Warranty | 3 years warranty incl. backlight; additional services available |
| Operating Hours | 24/7 |
| External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
