NEC

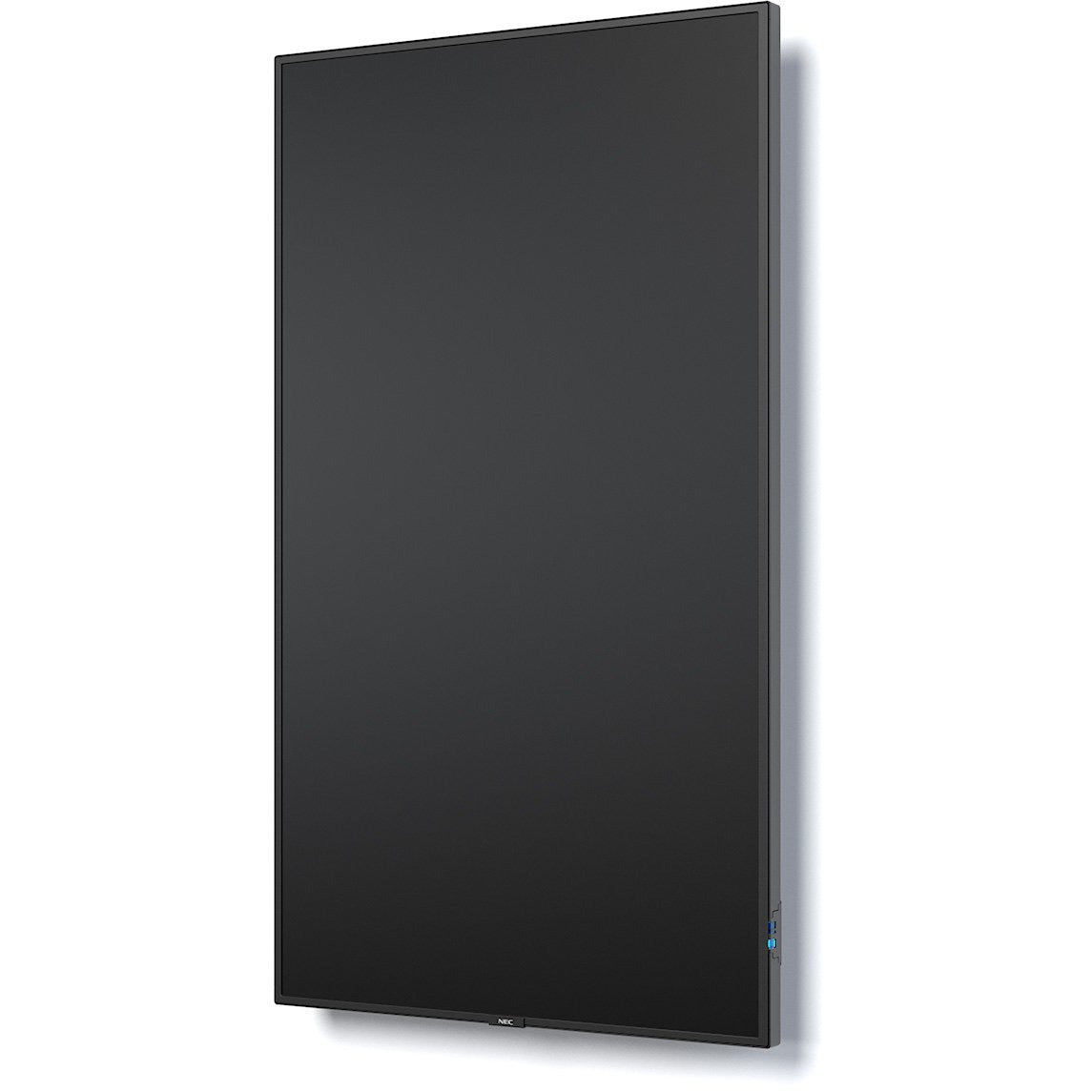

NEC MultiSync® M431 LCD 43" Message Large Format Display

NEC MultiSync® M431 LCD 43" Message Large Format Display

In stock

SKU:60005047

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Intuitive professional content delivery

Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.

With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.

Benefits

  • Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
  • Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.

DISPLAY

Panel Technology IPS with Edge LED backlights
Screen Size [inch/cm] 43 / 108
Aspect Ratio 16:9
Brightness [cd/m²] 500
Contrast Ratio ≥ 8000:1 1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.076 (10bit)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (28)
Supported Orientation Landscape; Portrait

RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 26 - 91.1
Vertical Frequency [Hz] 23 - 86

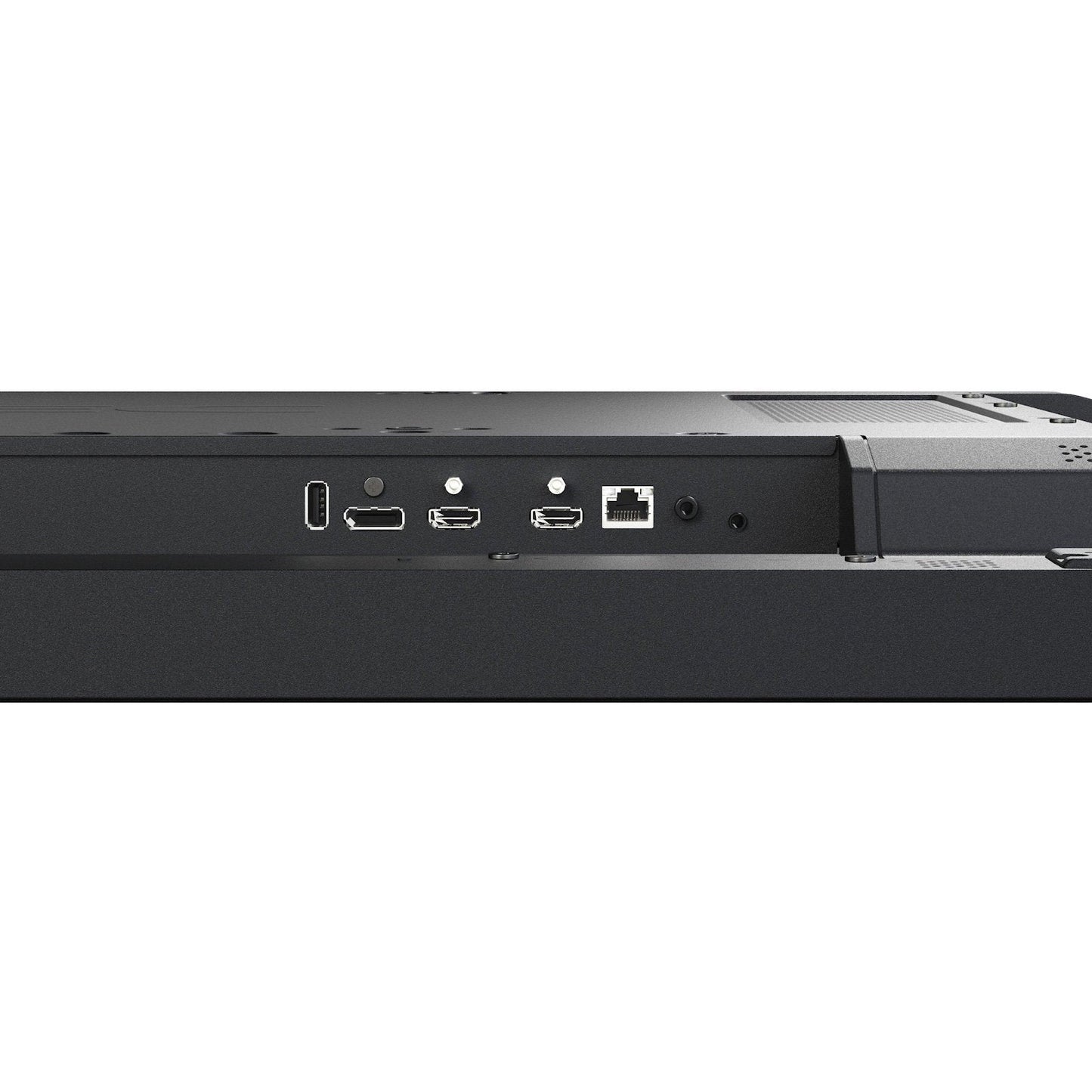

CONNECTIVITY
Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue 1 x 3,5 mm jack
Input Detect Custom; First; Last

OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 45 W; compatible with Intel Celeron CPUs or CPUs with lower power consumption
Compute Module Slot RPi Compute Module 4

SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable

ELECTRICAL
Power Consumption Eco/max. [W] 80 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60

MECHANICAL
Dimensions (W x H x D) [mm] 968.2 x 561 x 67.1
Weight [kg] 17.8
Bezel Width [mm] 11 (left, right and top); 15.6 (bottom)
VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 1,120 x 700 x 203
Packaging Weight [kg] 23
Colour Bezel Pantone 426M (black)
Material Metal

MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s

AVAILABLE OPTIONS
Accessories Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)

GREEN FEATURES
Energy Efficiency Energy consumption: 68 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0

ADDITIONAL FEATURES
Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours 24/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
