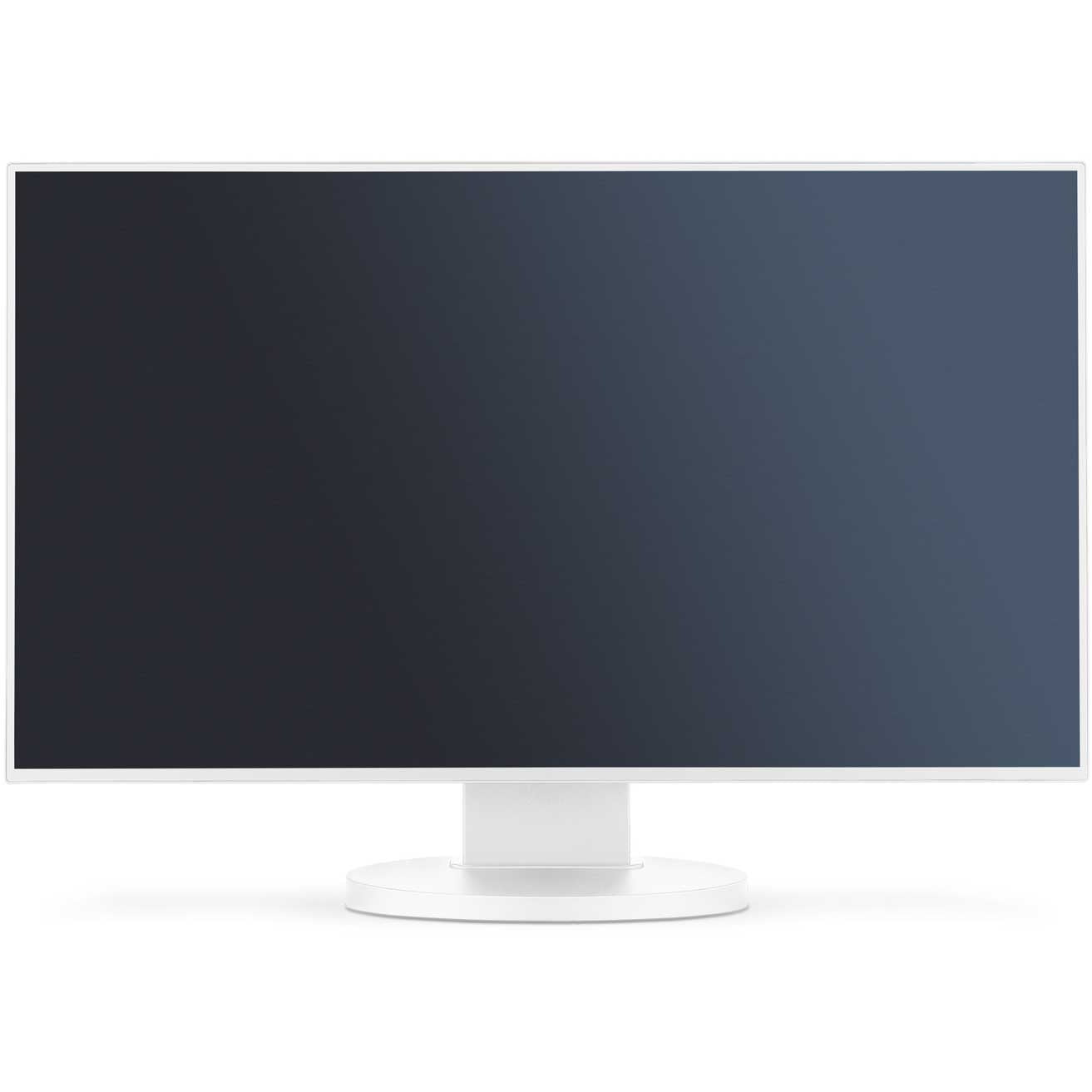

NEC MultiSync® EX241UN LCD 24" Enterprise Display
NEC MultiSync® EX241UN LCD 24" Enterprise Display
Out of stock
SKU:60004064
NEC MultiSync® EX241UN Ultra-Thin Bezel - The Trading Floor Benchmark, combining sleek and elegant design with health-conscious performance
The 24” ultra-thin bezel display targeting Financial Professionals with highest productivity, performance and quality, fulfils demand for future-ready design.
"The more you can see the more you can do"; benefit from the four sided 0,8 mm ultra-narrow bezel, or remove the bezel completely to further reduce the display footprint in multi-screen setups. Outstanding productivity additionally requires high attention to healthcare. Ensuring the well-being of the user, built-in Low Blue Light technology and Flicker-Free technology effectively protect the health of the users’ eyes.
The ultra-narrow bezel display reduces the display footprint without compromising on screen size and gives trading floors a fresh professional interior with its sleek and elegant design.
Benefits
- Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.
- Highest Productivity and efficient Multi-Tasking – reduce the number of PCs and Daisy-Chain multiple displays using DisplayPort (out) and benefit from Uniformity Control for a consistent visualisation in a trading floor setup.
- Efficient Installation and Configuration – one button quick release display stand, intuitive joystick button for menu settings. Administrate a complete multi-screen environment simply via master display using Control Sync function.
- Auto-Adjust Power Consumption – to minimize unnecessary power, optional Human and Ambient Light Sensor adjusts the display brightness when a user leaves his desk.
- Future-Proof Multi-Screen Design – 4-sided ultra-narrow bezel (further removable) reduce the footprint to a minimum without compromising on screen size
DISPLAY
Panel Technology | IPS TFT |
Screen Size [inch/cm] | 24 / 60 |
Screen Aspect Ratio | 16:9 |
Colour Gamuts | 100 % sRGB; 72 % NTSC |
Pixel Pitch [mm] | 0.2745 |
Brightness (typ.) [cd/m²] | 250 |
Contrast Ratio (typ.) | 1000:1 |
Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
Response Time (typ.) [ms] | 6 |
Colours [Mio.] | 16.77 |
SYNCHRONISATION RATE
Horizontal Frequency [kHz] | 31.5 - 83 |
Vertical Frequency [Hz] | 56 - 75 |
RESOLUTION
Optimum Resolution |
1920 x 1080 at 0 Hz
|
Supported |
1920 x 1080 (60 Hz)
|
CONNECTIVITY
Digital | 1 x DisplayPort; 1 x DisplayPort out; 1 x DVI-D; 1 x HDMI; USB ver. 3.0 (3 down / 1 up) |
Analog | 1 x D-sub 15 pin |
ELECTRICAL
Power Consumption on Mode [W] | 15 (Eco Mode 2); 19 (Eco Mode); 19 (shipping); 45 (max.) |
Power Savings Mode [W] | 0.3 |
Power Supply | internal power supply |
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] | +5 to +35 |
Operating Humidity [%] | 20 to 80 |
Storage Humidity [%] | 10 to 85 |
Storage Temperature [°C] | -10 to 60 |
ERGONOMICS
Height adjustable stand [mm] | 100 |
Screen Tilt [°] | -5 to +30 |
Screen Swivel [°] | -170 to +170 |
Screen Rotate [°] | -90 to 90 (landscape to portrait mode) |
MECHANICAL
Bezel Width [mm] | 0.8 |
Dimensions (W x H x D) [mm] | 537.8 x 369.7 x 204.3 |
Weight [kg] | 5.6 |
VESA Mounting [mm] | 100 x 100 |
ADDITIONAL FEATURES
Special Characteristics | Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM simulation; Digital Uniformity Control (ColorComp); DisplayPort; EcoModes; LED Backlight Technology; NaViSet Administrator 2; Quick release Stand and Handle; Touch Sensor Keys; USB ver. 3.0 (3 down / 1 up) |
Colour Versions | Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
Cable Management | yes |
Plug and Play | VESA DDC2B; VESA DDCi |
Audio | Headphone Jack; Integrated Speakers (1 W + 1 W) |
Adjust Functions | Auto Adjust; Brightness; Contrast; Control Sync; DV Mode; EcoMode; Fine Adjust (analog); Individual Adjust; Intelligent Power Management; Language Select; LED Brightness; Monitor Information |
Shipping Content | Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Setup Guide; USB Cable |
Safety and Ergonomics | CE; EAC; EnergyStar 8.0; FCC Class B; Flicker-free; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); Low Blue Light; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA |
Warranty | 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension |
GREEN FEATURES
Energy Efficiency | ECOMode; Energy consumption: 15 kWh/1000 h; Energy efficiency class: E |
Ecological Standards | Energy Star 8.0; ErP compliant; TCO 8.0 |
