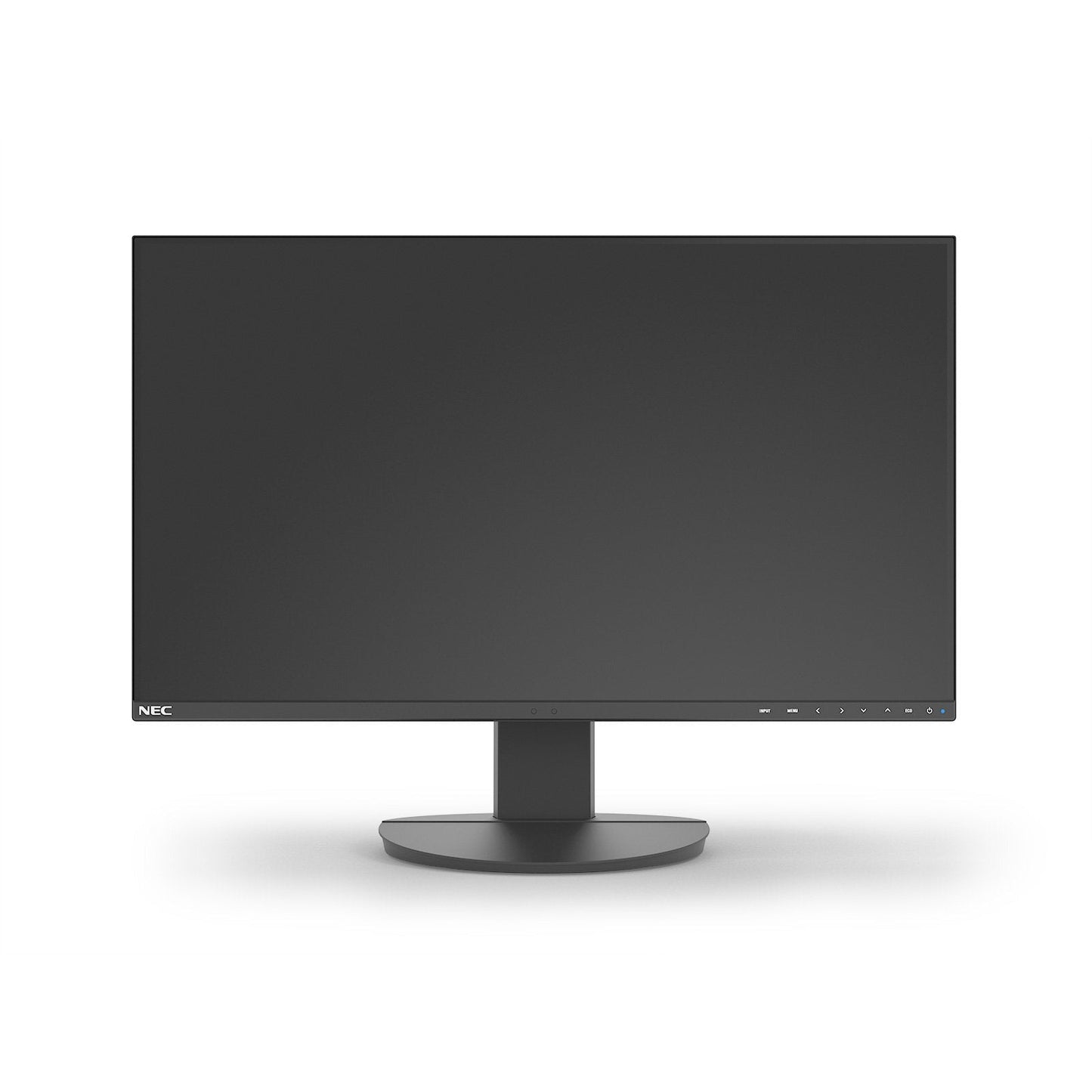

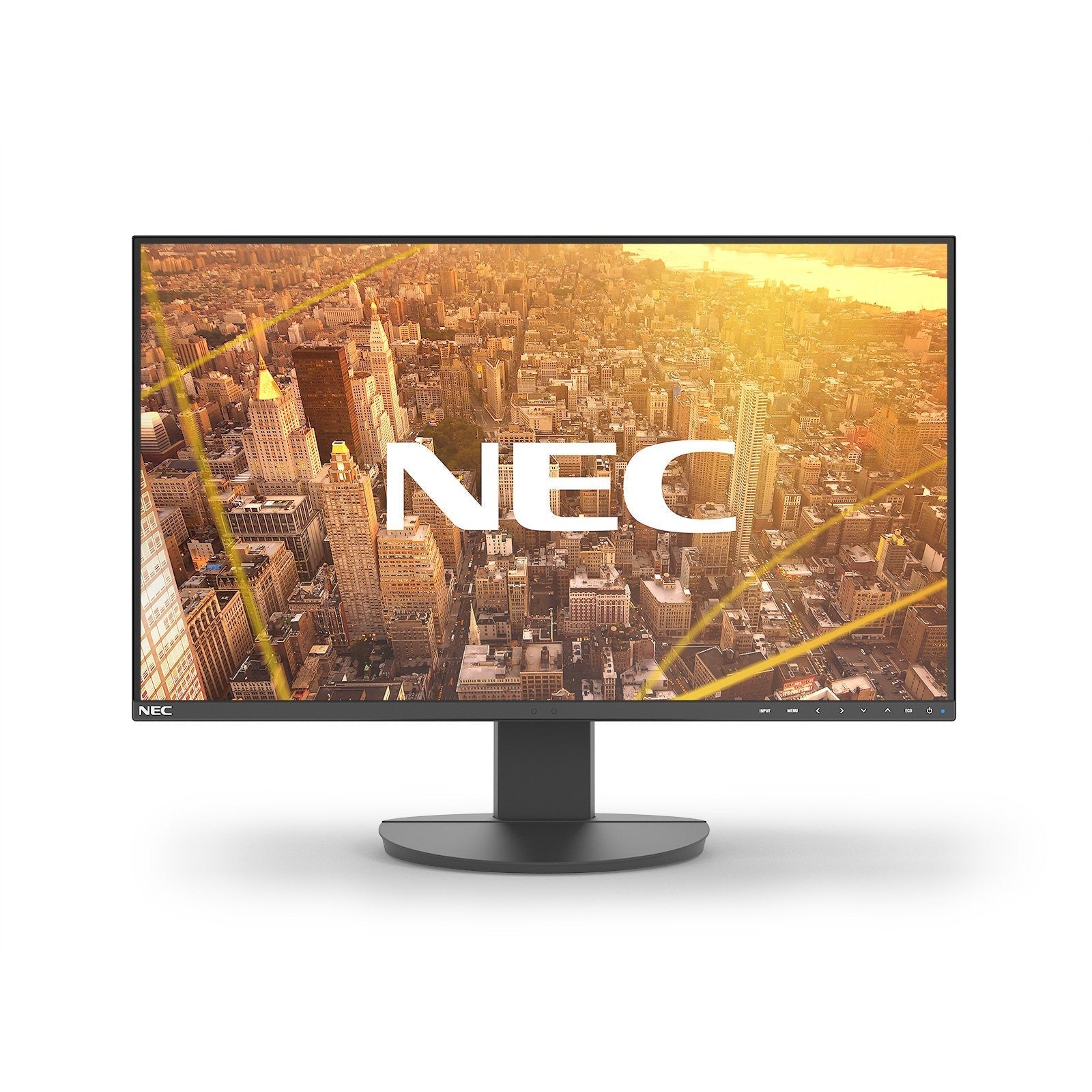

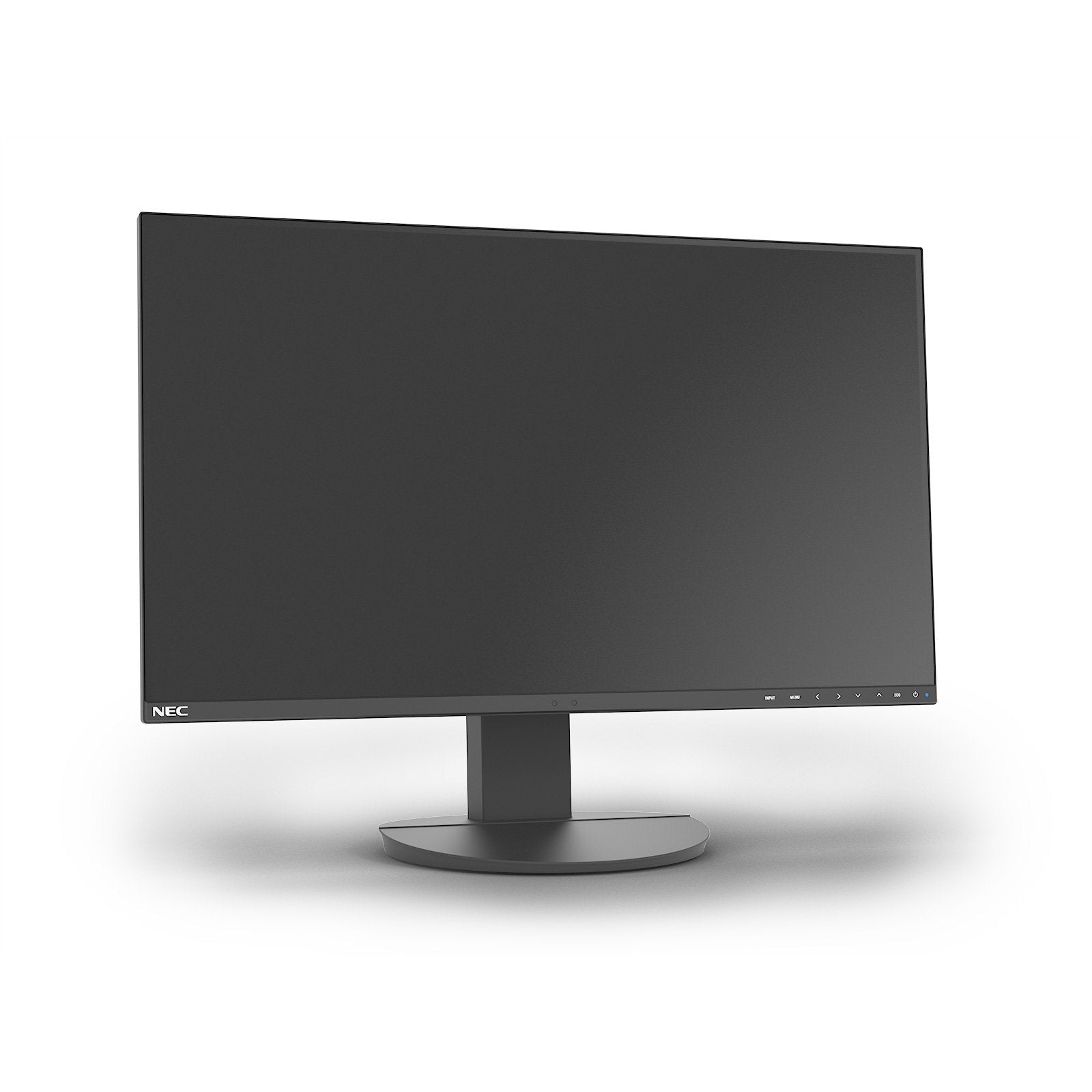

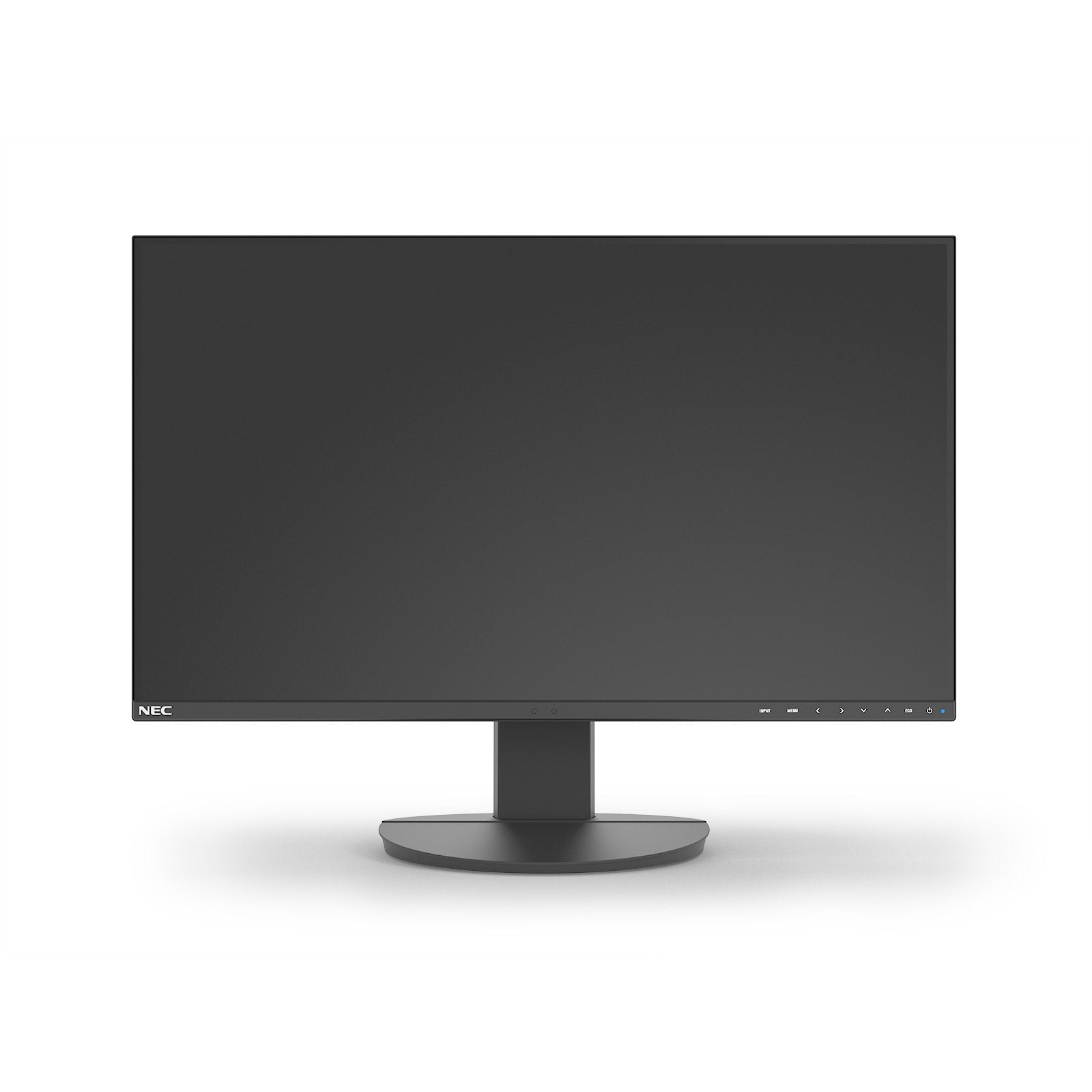

NEC MultiSync® EA272F LCD 27" Enterprise Display

NEC MultiSync® EA272F LCD 27" Enterprise Display

In stock

SKU:60005033

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out
Color

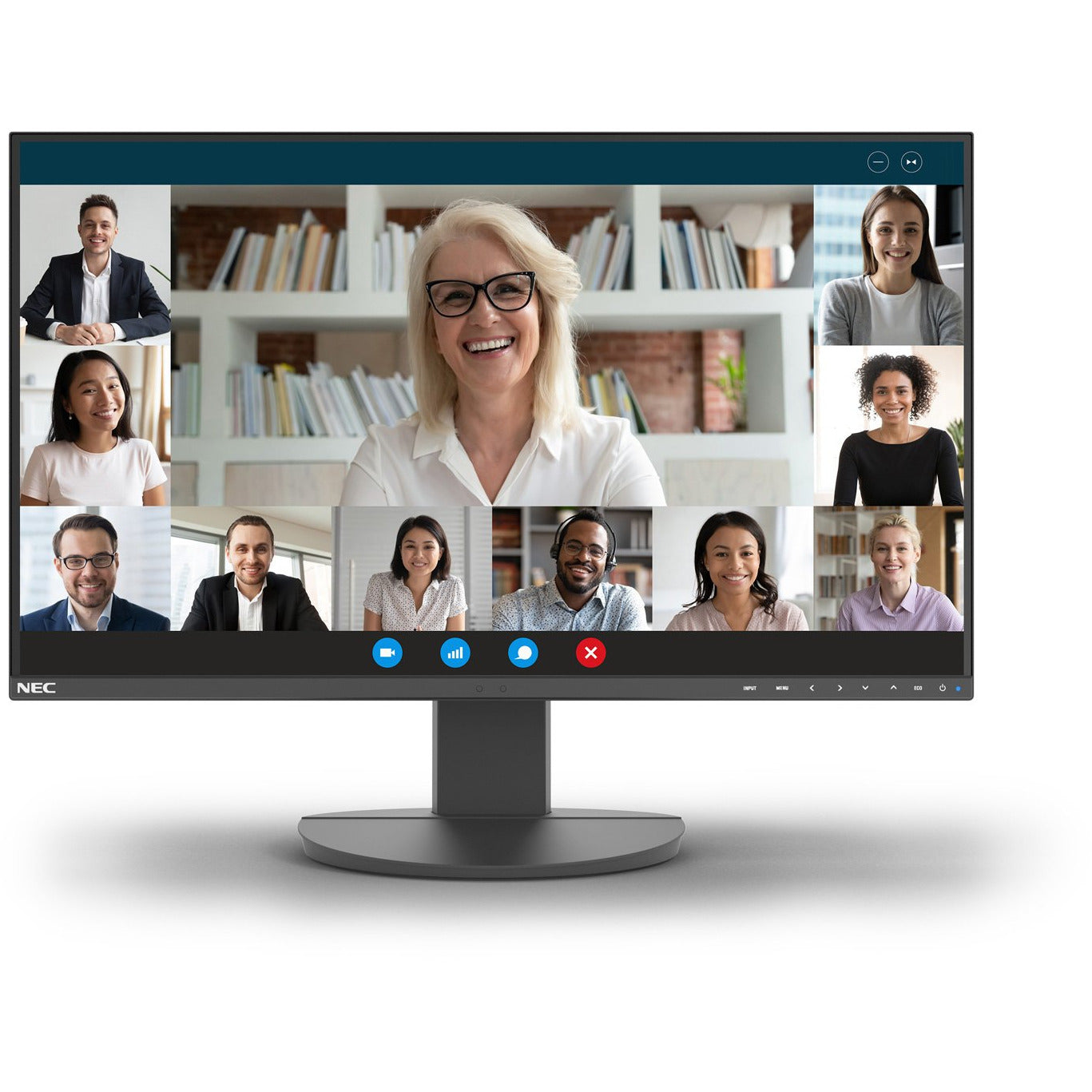

Powering workspace communications

Powering your PC/notebook and all your devices through a single cable, the MultiSync® EA272F is your workspace hub; no docking station required, the 65W USB-C connection means an efficient, clutter-free workstation from which to manage your communications. Easily increase your display area using DisplayPort-out to daisy-chain multiple displays, no additional cabling required.

User comfort is fundamental with full height adjustment, tilt, pivot and swivel supporting customised personal setup, whilst built-in low blue light technologies guard against eye fatigue without compromising true-to-life colour performance. Available in black or white, the 27” EA272F complements office interior design and ergonomics.

The connectivity advantage continues beyond USB Type-C with DisplayPort, HDMI, VGA and USB A for fully future-proof flexibility supporting new open office standards in hot desking and ‘bring your own device.’

Benefits

  • In-demand display size – the popular 27.0” display with Full HD resolution is the perfect size for busy office workspaces.
  • Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable

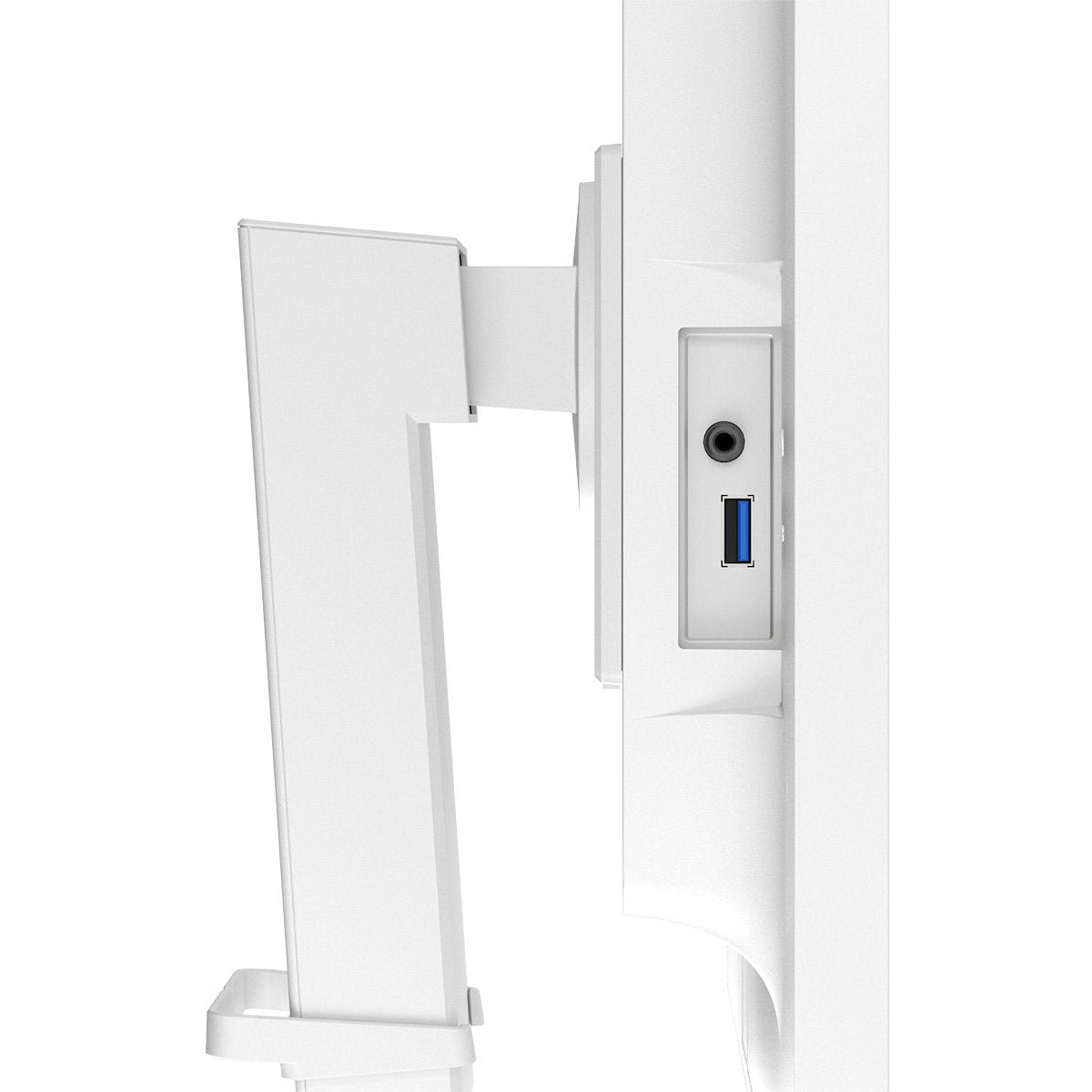

  • Future-proof flexibility – wide connectivity provides high-level flexibility with DP, HDMI, USB Type C, USB A and audio output.
  • Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed
  • Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.

DISPLAY

Panel Technology AH-IPS LCD with LED Backlight
Screen Size [inch/cm] 27 / 69
Screen Aspect Ratio 16:9
Colour Gamuts 102 % sRGB; 75.5% AdobeRGB, 72% NTSC
Pixel Pitch [mm] 0.311
Brightness (typ.) [cd/m²] 250
Contrast Ratio (typ.) 1000:1 (5000:1 dynamic contrast ratio)
Response Time (typ.) [ms] 6
Colours [Mio.] 16.777

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 55 - 75

RESOLUTION
Optimum Resolution
1920 x 1080 at 60 Hz
Supported
1024 x 768;1280 x 1024;1280 x 720;1280 x 960;1440 x 900;1680 x 1050;1920 x 1080;640 x 480;720 x 400 (70 Hz);800 x 600

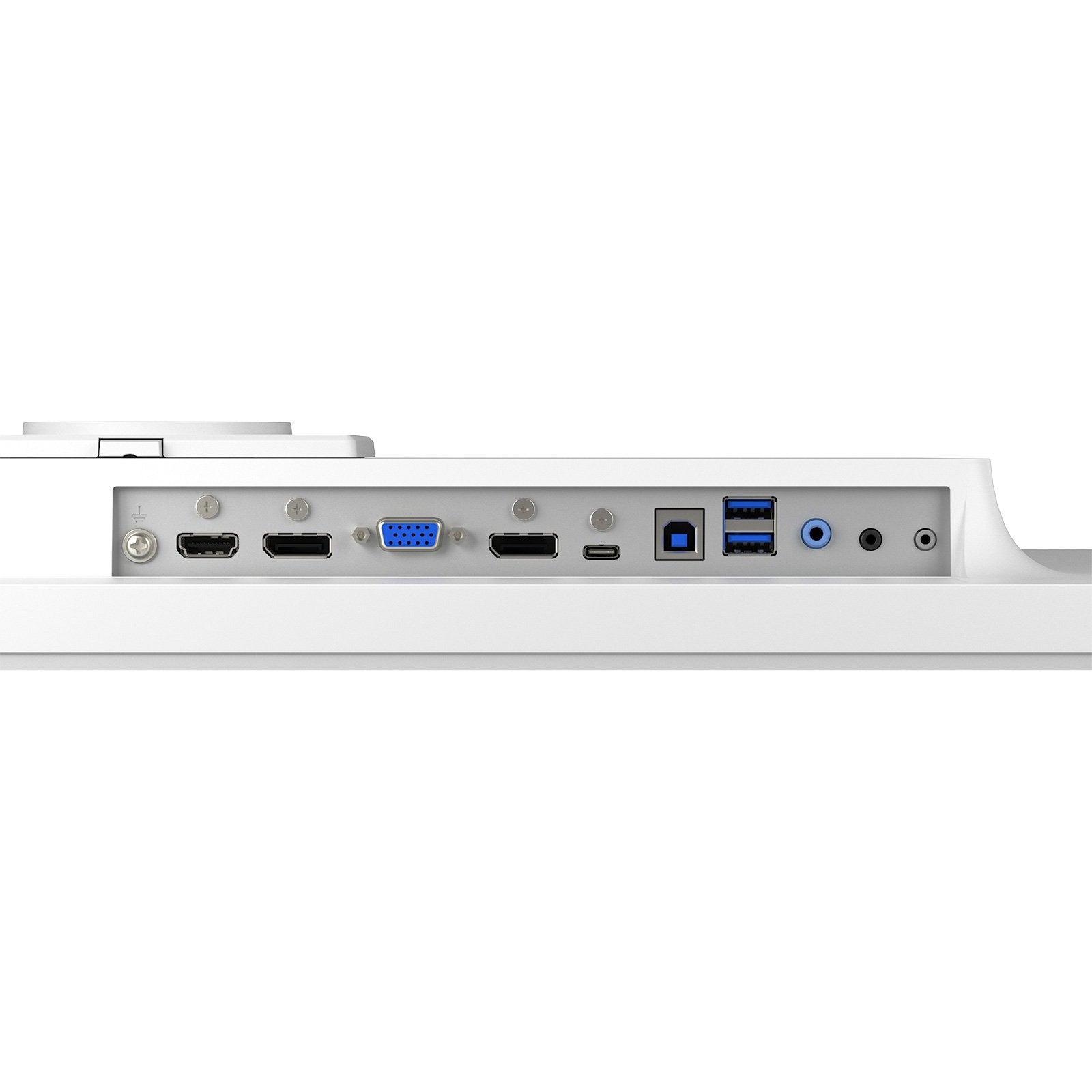

CONNECTIVITY
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x HDMI; 1 x USB Type C; USB ver. 3.1 (3 down / 1 up)
Analog 1 x VGA

ELECTRICAL
Power Consumption on Mode [W] 15 (Eco Mode 2); 21 (typ.)
Power Savings Mode [W] 3
Power Supply 0.85 A/0.45 A; 100-240 V; integrated power supply

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 85
Storage Temperature [°C] -10 to 60

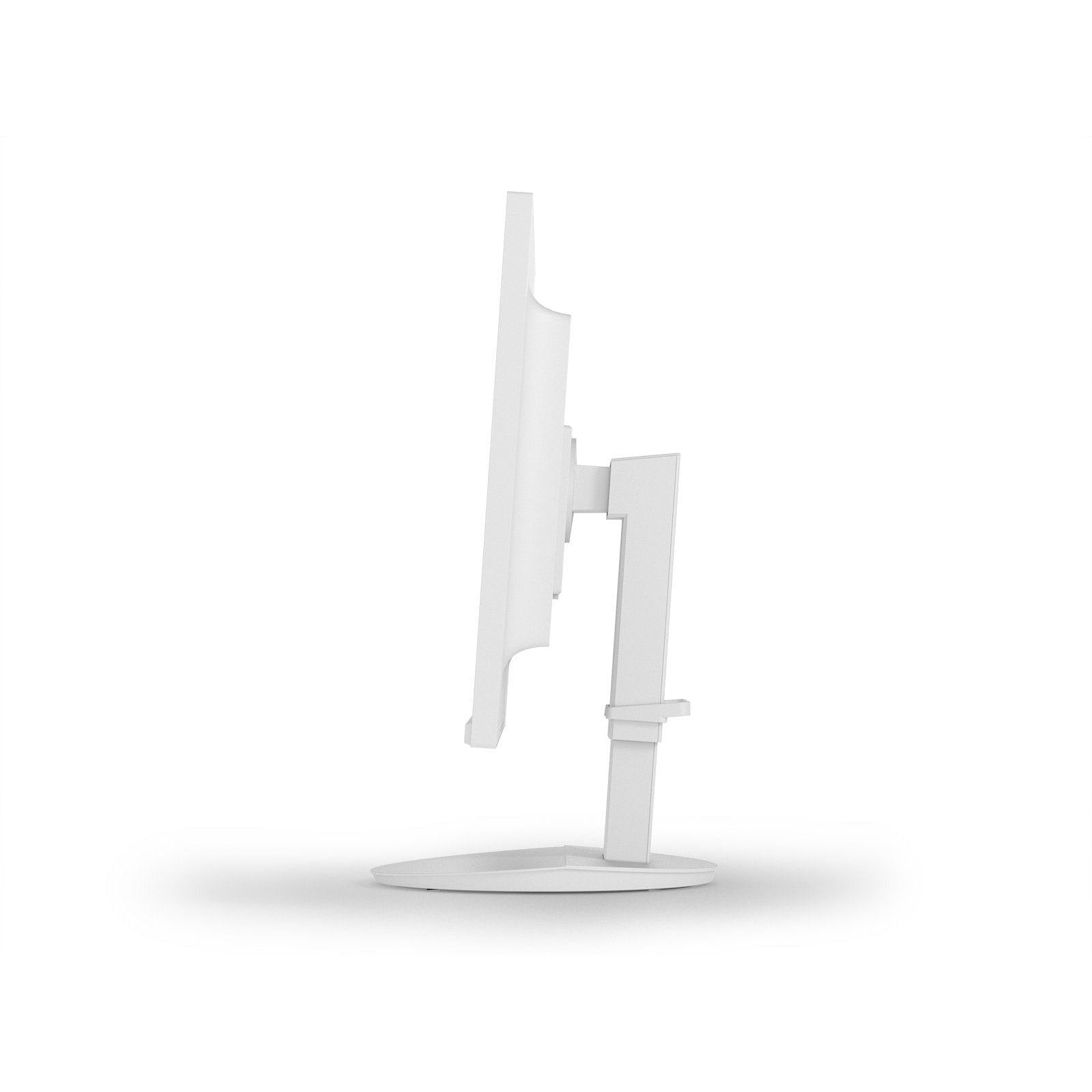

ERGONOMICS
Height adjustable stand [mm] 150 (Landscape mode)
Screen Tilt [°] -5 to 35
Screen Swivel [°] -170 to 170
Screen Rotate [°] -90 to 90 (landscape to portrait mode)

MECHANICAL
Bezel Width [mm] 0.8 (left and right); 0.8 (top); 15.8 (bottom)
Dimensions (W x H x D) [mm] 359.8 x 628.4 - 651.6 x 250 (Portrait mode); 610.2 x 377.3 - 527.3 x 250 (Landscape mode)
Weight [kg] With stand: 9.2

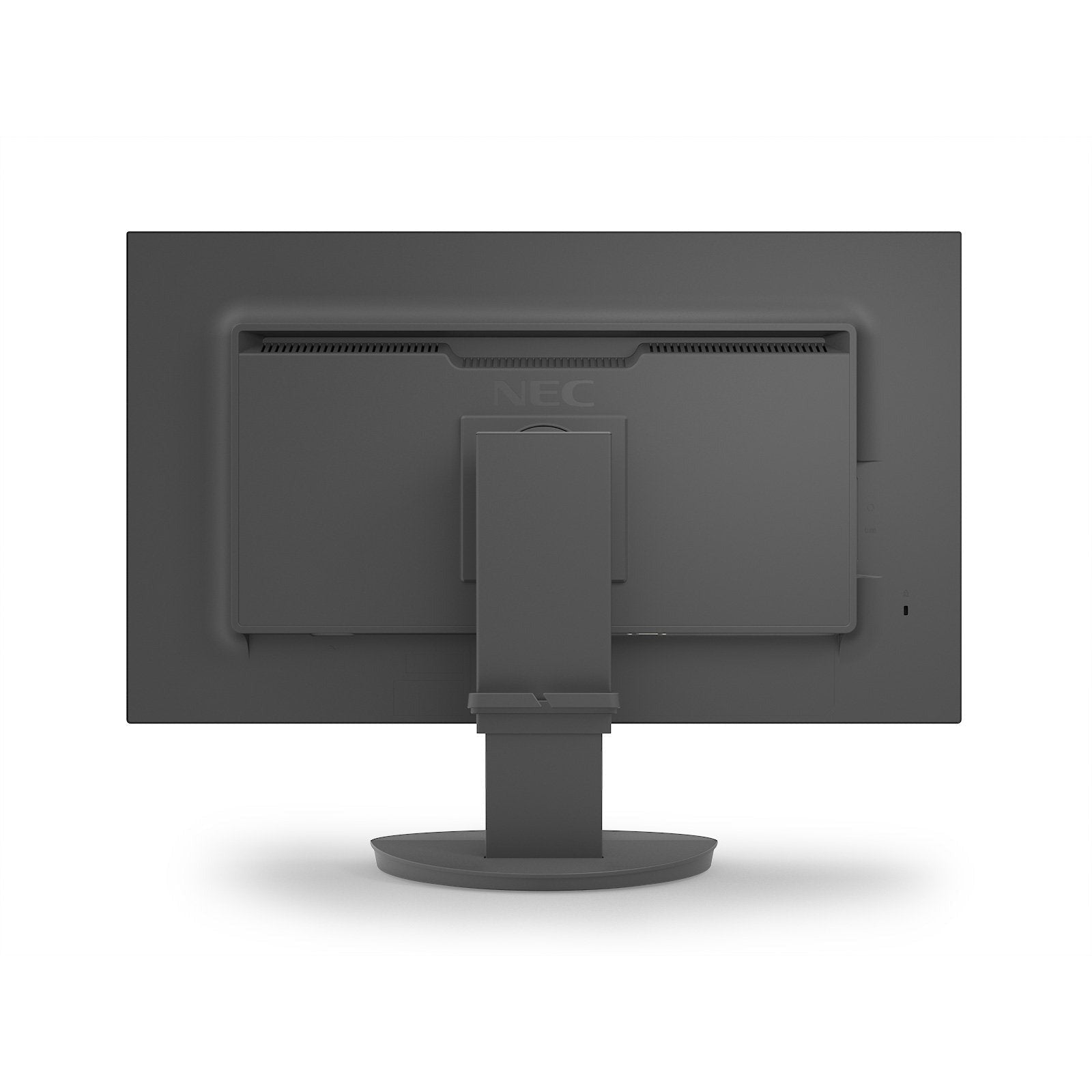

VESA Mounting [mm] 100 x 100

ADDITIONAL FEATURES
Special Characteristics Ambient light sensor for optimized brightness levels; Auto Contrast; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM simulation; EcoModes; ErgoDesign®: Height adjustable stand (150 mm) with 90° Pivot features; Human Sensor; LED Backlight Technology; Quick release Stand and Handle; USB ver. 3.1 (3 down / 1 up); Versatile and easy installation (VESA standard) with NaViSet and NaViKey; Windows 10 compatible

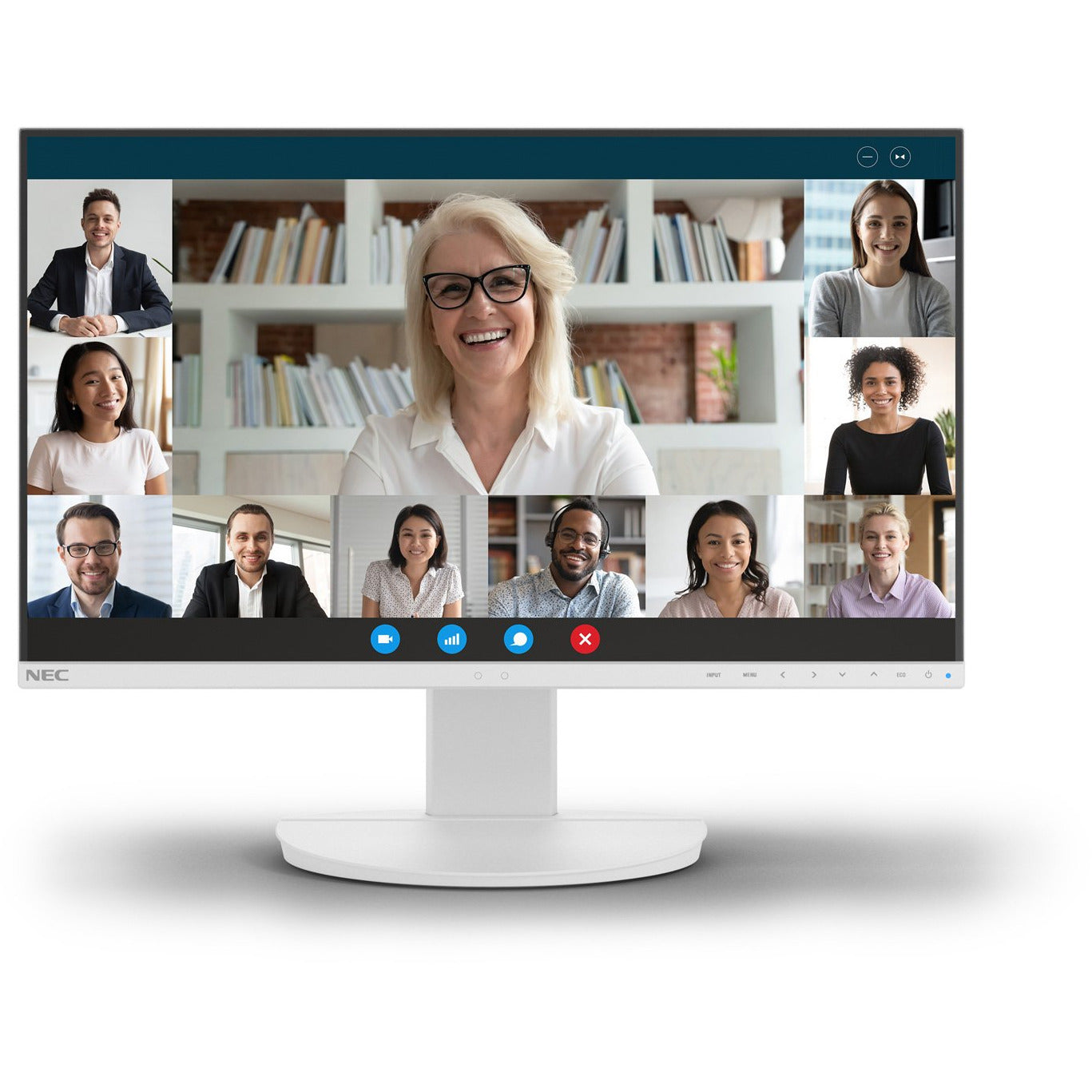

Colour Versions Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play DDC2B/2Bi; EDID Standard; VESA DDC/CI
Audio Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV Mode; EcoMode; Factory Preset; Fine Adjust (analog); Human Sensing; Intelligent Power Management; Language Select; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One Touch Recovery; Power-Off Timer; sRGB
Shipping Content Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; Setup Guide; USB Cable; USB-C Cable
Safety and Ergonomics CE; EAC; EnergyStar 8.0; ErP; FCC Class B; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TCO Edge 2.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Warranty 3 years warranty incl. backlight; optional 4th to 5th year warranty extension

GREEN FEATURES
Energy Efficiency Ambient light sensor; Auto brightness; Carbon Footprint Meter / Carbon Savings Meter; ECOMode; Energy consumption: 15 kWh/1000 h; Energy efficiency class: D; Human sensor; LED backlight technology
Ecological Materials Efficient mechanical design for minimised packaging; Minimal use of harmful material
Ecological Standards ErP compliant; WEEE
