NEC

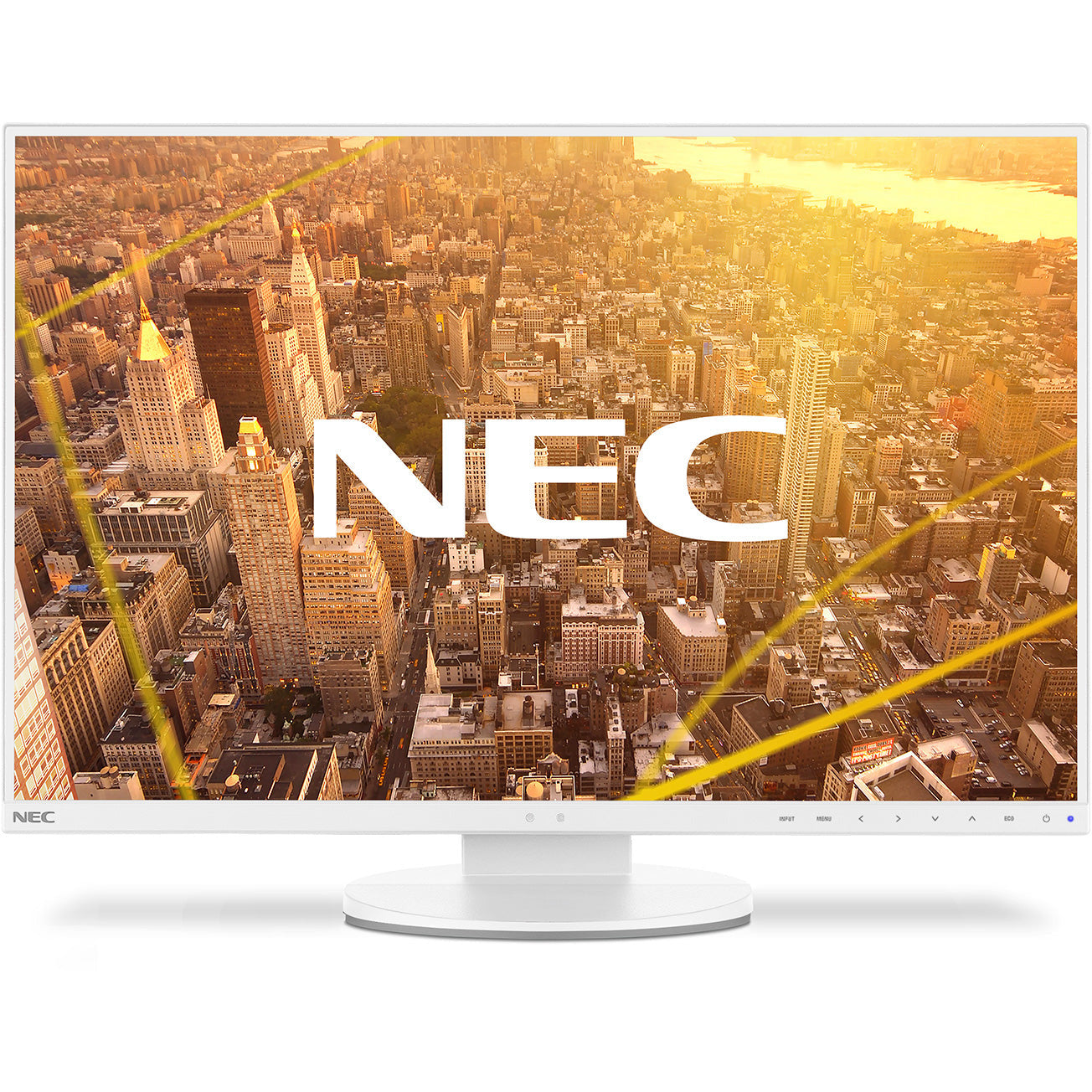

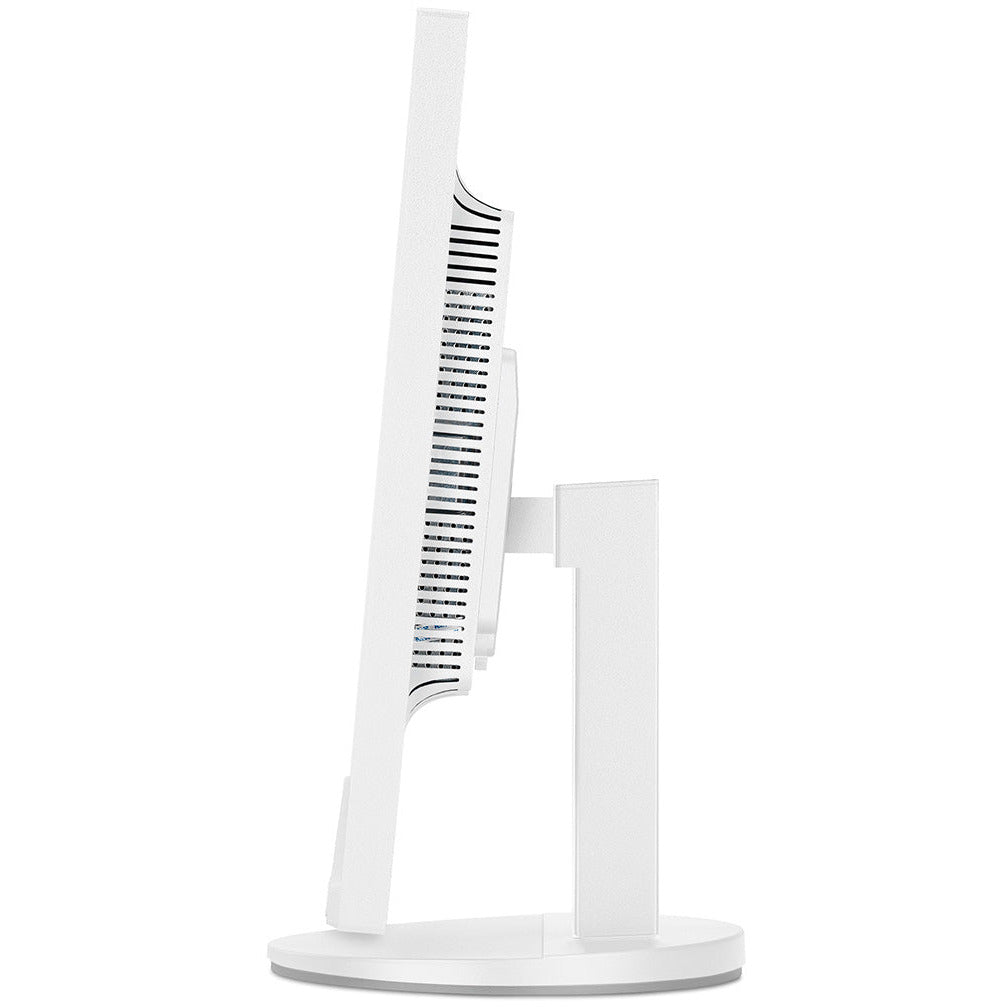

NEC MultiSync® EA245WMi-2 LCD 24" Enterprise Display

NEC MultiSync® EA245WMi-2 LCD 24" Enterprise Display

Out of stock

SKU:60004486

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out
Color

NEC MultiSync® EA245WMi-2 Ultra-Thin Bezel - The Office benchmark, combining sleek and elegant design with health-conscious performance

The 24” ultra-thin bezel display targeting ultimate office productivity, performance and quality, fulfils the demand for future-ready design. With its full height adjustability from 0 to 150 mm and 170° swivel functionality this display ensures perfect individual ergonomic set-up supporting best productivity. Ensuring the well-being of the user, built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates the effect of flickering. The users’ eyes are protected whilst ensuring a true-to-life display colour performance from all viewing angles. The LED backlight panel with AH-IPS technology supports a high display brightness of 300 cd/m² and in parallel lowers power consumption.

The ultra-narrow bezel display reduces the display footprint without compromising on screen size and gives an office a fresh professional interior with its sleek and elegant design.

Benefits

  • Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
  • Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.
  • Auto-Adjust Power Consumption – to minimize unnecessary power usage, the Human and Ambient Light Sensors adjust the display brightness according to user presence and room lighting conditions.
  • Future-Ready Design – best in form and function design with 3-sided ultra-narrow bezel gives an office a fresh professional interior.
  • Business Class Image Quality – Advanced High-Performance IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction.

DISPLAY

Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24 / 61
Screen Aspect Ratio 16:10
Pixel Pitch [mm] 0.270
Brightness (typ.) [cd/m²] 300
Contrast Ratio (typ.) 1000:1 (5000:1 dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 5
Colours [Mio.] 16.77

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 95
Vertical Frequency [Hz] 56 - 75

RESOLUTION
Optimum Resolution
1920 x 1200 at 60 Hz
Supported
1024 x 768;1280 x 1024;1280 x 720;1280 x 768;1280 x 960;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1680 x 1050;1920 x 1080;1920 x 1200;640 x 480;800 x 600

CONNECTIVITY
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x DVI-D; 1 x HDMI; USB ver. 3.0 (3 down / 1 up)
Analog 1 x D-sub 15 pin

ELECTRICAL
Power Consumption on Mode [W] 18 (Eco Mode 2); 22 (typ.); 50 (max.)
Power Savings Mode [W] 0.3
Power Supply internal power supply

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80

ERGONOMICS
Height adjustable stand [mm] 150
Screen Tilt / Swivel [°] -5 to +35; -170 to +170
Screen Rotate [°] -90 to 90 (landscape to portrait mode)

MECHANICAL
Bezel Width [mm] 0.8 (left/right/top)
Dimensions (W x H x D) [mm] With stand: 531.5 x 515.4 x 250
Weight [kg] 6.7
VESA Mounting [mm] 100 x 100

ADDITIONAL FEATURES
Special Characteristics Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM preset; DICOM simulation; EcoModes; Human Sensor; LED Backlight Technology; NaViSet Administrator 2; Quick release Stand and Handle; sRGB Support; Touch Sensor Keys; USB ver. 3.0 (3 down / 1 up)
Colour Versions Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play VESA DDC2B; VESA DDCi
Audio Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV Mode; EcoMode; Fine Adjust (analog); Human Sensing; Intelligent Power Management; Language Select; LED Brightness; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One Touch Recovery; Power-Off Timer; sRGB
Shipping Content Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Setup Guide; USB Cable
Safety and Ergonomics CE; EnergyStar 8.0; Flicker-free; Low Blue Light; TCO 8.0
Warranty 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension

GREEN FEATURES
Energy Efficiency Ambient light sensor; Energy consumption: 16 kWh/1000 h; Energy efficiency class: E; Human sensor; Intelligent Power Management
Ecological Materials Downloadable manuals
Ecological Standards Energy Star 8.0; TCO 8.0
