NEC MultiSync® EA241F LCD 23.8" Enterprise Display
NEC MultiSync® EA241F LCD 23.8" Enterprise Display
In stock
SKU:60004786

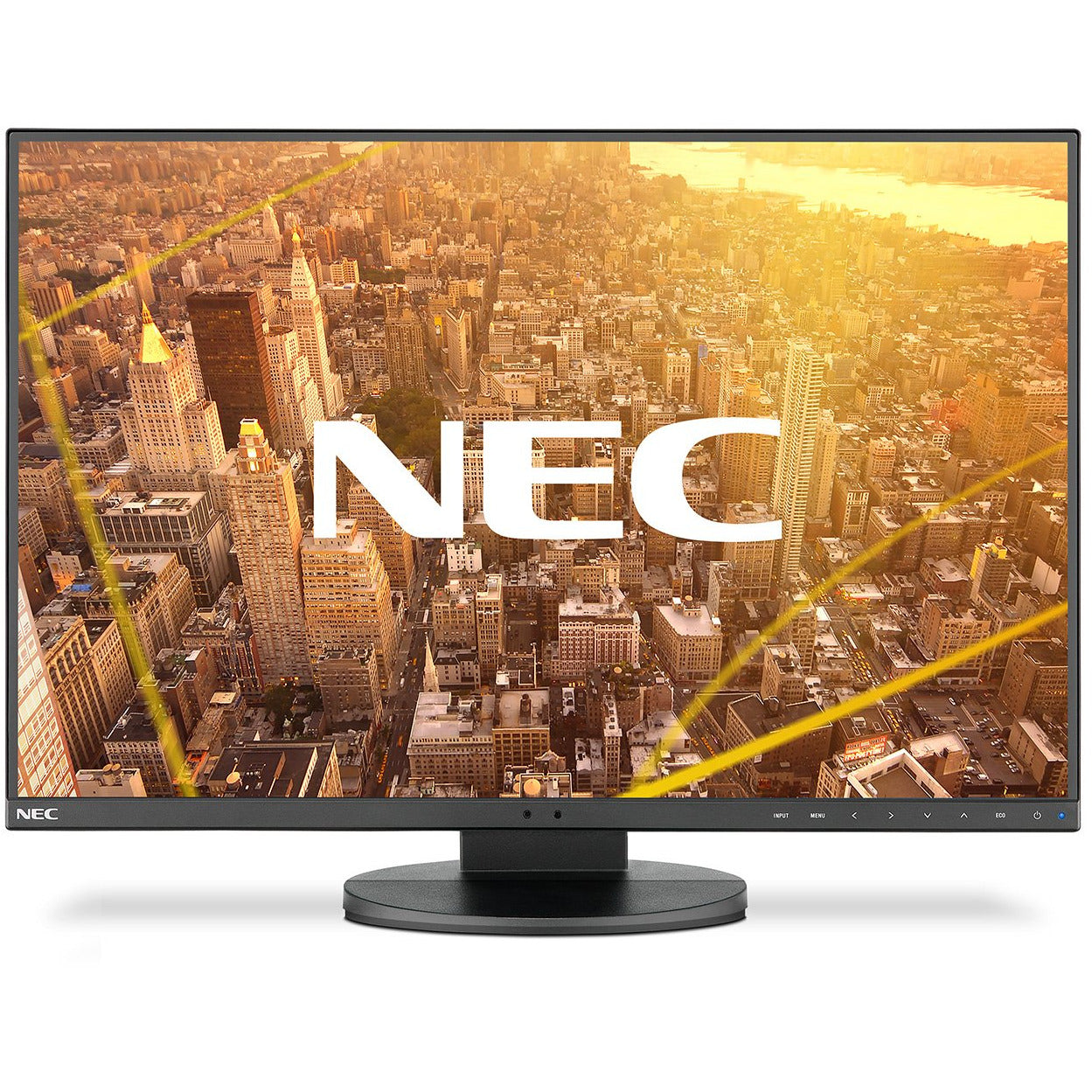

NEC MultiSync® EA241F Ultra-Narrow Bezel – 23.8-inch FHD with full connectivity
NEC’s new 23.8-inch desktop display comes with the features needed to maximise office productivity. This includes its outstanding visual capabilities, class leading ergonomics and full range of connectivity that allows you to connect the display to existing platforms.
The new display is entering the most demanding display market in terms of size. The EA241F’s sleek look makes it ideal for multi-screen usage while also adding a touch of elegance to the office space. The three-sided narrow bezel design reduces its footprint without comprising on screen size. The display also ensures best in class ergonomics that meet all safety regulations. The height adjusts from the desk level up to 150 mm, which puts it in step with the new standards for an ergonomic workspace.
Benefits
- In-demand display size – the popular 23.8” display with Full HD resolution is the perfect size for busy office workspaces.
- Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
- Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.
- Auto-Adjust Power Consumption – to minimize unnecessary power usage, the Human and Ambient Light Sensors adjust the display brightness according to user presence and room lighting conditions.
- Ease of multi-display control – manage the settings of up to 5 displays in a multi-monitor configuration via the master display with ControlSync® technology.
DISPLAY
Panel Technology | IPS TFT with W-LED backlight |
Screen Size [inch/cm] | 24 / 60.47 |
Screen Aspect Ratio | 16:9 |
Colour Gamuts | 101.6 % sRGB; 75.3% AdobeRGB, 72% NTSC |
Pixel Pitch [mm] | 0.275 |
Brightness (typ.) [cd/m²] | 250 |
Contrast Ratio (typ.) | 1000:1 (5000:1 dynamic contrast ratio) |
Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
Response Time (typ.) [ms] | 5 (grey-to-grey) |
Colours [Mio.] | 16.78 (6-bit per colour) |
SYNCHRONISATION RATE
Horizontal Frequency [kHz] | 31.5 - 83 |
Vertical Frequency [Hz] | 50 - 75 |
RESOLUTION
Optimum Resolution |
1920 x 1080 at 60 Hz
|
Supported |
1024 x 768;1280 x 1024;1280 x 720;1280 x 960;1440 x 900;1680 x 1050;1920 x 1080;640 x 480;720 x 400;720 x 480;720 x 576;800 x 600
|
CONNECTIVITY
Digital | 1 x DisplayPort; 1 x DVI-D (with HDCP); 1 x HDMI; USB ver. 3.1 (3 down / 1 up) |
Analog | 1 x D-sub 15 pin |
ELECTRICAL
Power Consumption on Mode [W] | 11 (Eco Mode 2); 15 (shipping); 47 (max.) |
Power Savings Mode [W] | 0.31 |
Power Supply | 0.9 A/0.5 A; 100-240 V; internal power supply |
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] | +5 to +35 |
Operating Humidity [%] | 20 to 80 |
Storage Humidity [%] | 10 to 85 |
Storage Temperature [°C] | -10 to 60 |
ERGONOMICS

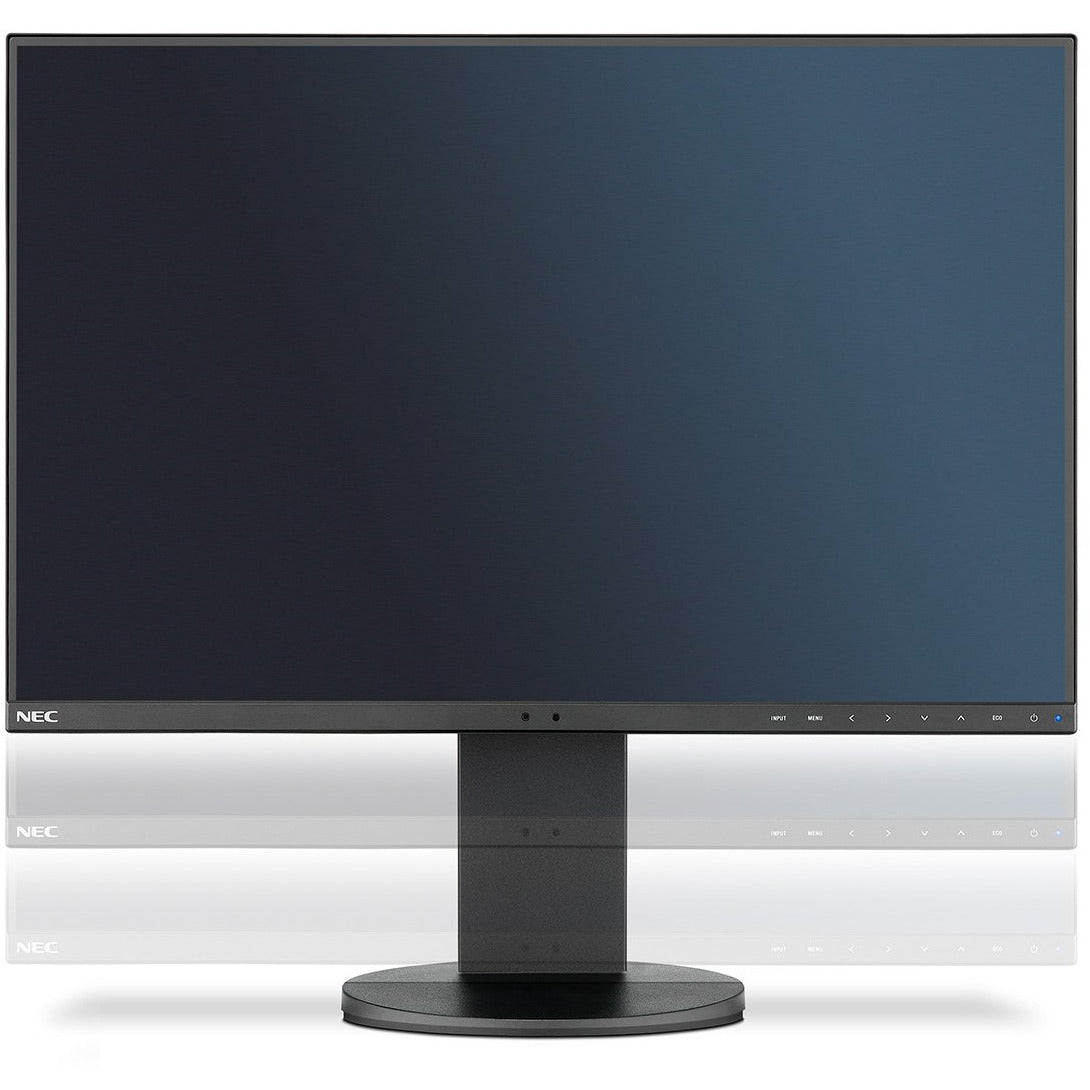

Height adjustable stand [mm] | 150 (Landscape mode) |
Screen Tilt [°] | -5 to 35 |
Screen Swivel [°] | -170 to 170 |
Screen Rotate [°] | 0 to 90 (landscape to portrait mode) |
MECHANICAL
Bezel Width [mm] | 0.8 (left/right/top); 15.8 (bottom) |
Dimensions (W x H x D) [mm] | 319.1 x 555.6 - 615.4 x 250 (Portrait mode); 537.7 x 336.6 - 486.6 x 250 (Landscape mode) |
Weight [kg] | With stand: 6.1; Without stand: 3.6 |
VESA Mounting [mm] | 100 x 100 (4 points) |
ADDITIONAL FEATURES
Colour Versions | Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
Cable Management | yes |
Plug and Play | DDC2B/2Bi; VESA DDC/CI; VESA DDC2Bi |
Audio | Integrated Speakers (1 W + 1 W) |
Adjust Functions | Advanced NTAA (Advanced Non-Touch-Auto-Adjustment) |
Shipping Content | Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; USB Cable |
Safety and Ergonomics | CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
Warranty | 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension |
GREEN FEATURES
Energy Efficiency | Ambient light sensor; Energy consumption: 11 kWh/1000 h; Energy efficiency class: C; Human sensor |
Ecological Standards | Energy Star 8.0; ErP compliant; RoHS compliant; TCO 8.0; WEEE |
