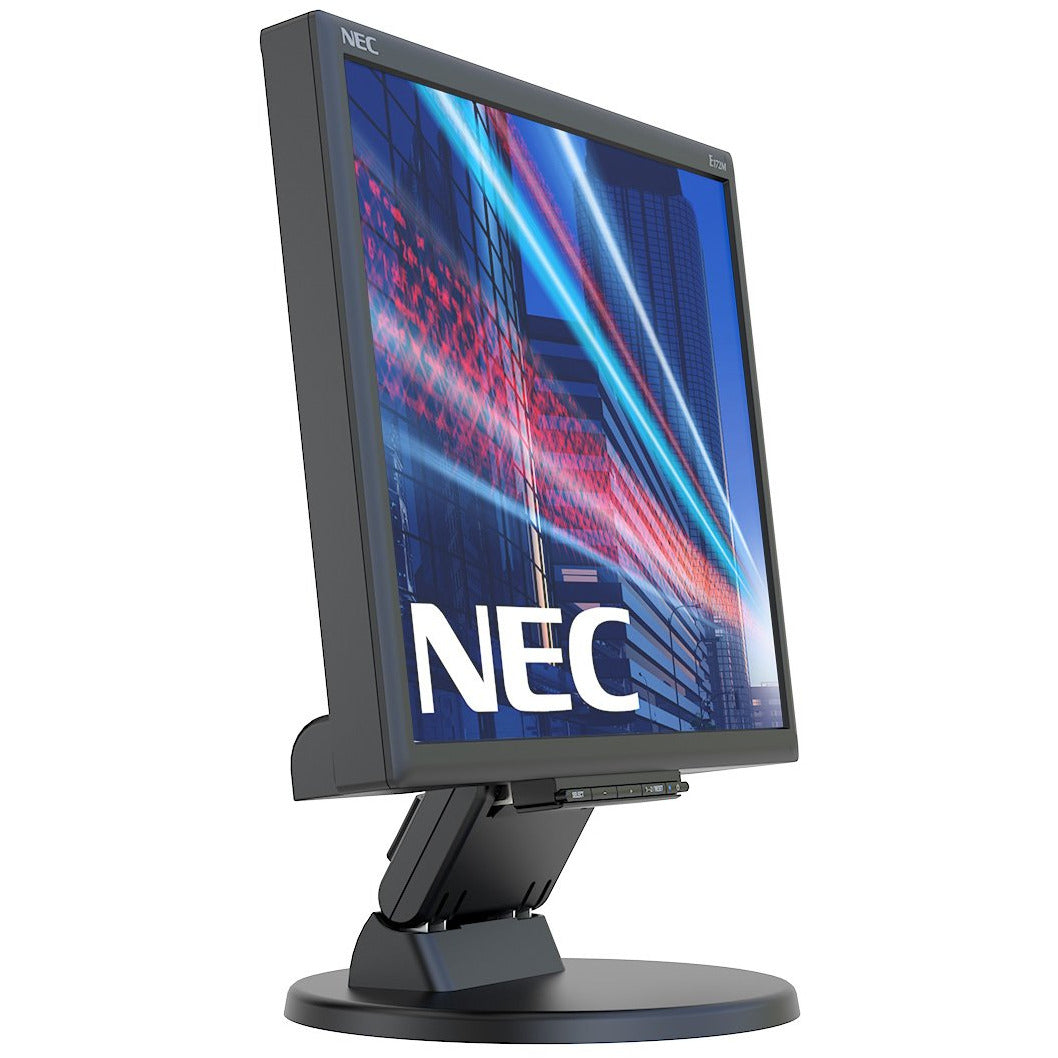

NEC MultiSync® E172M LCD 17" Enterprise Display

NEC MultiSync® E172M LCD 17" Enterprise Display

Out of stock

SKU:60005020

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Boost your productivity

while being environmentally friendly with the 17” NEC MultiSync® E172M, an eco-conscious LED backlit LCD desktop monitor that enhances your computing experience. The LED backlighting allows for lighter weight and increased power savings compared to previous generation models, a carbon footprint meter for tracking the conservation of green gas emissions and Intelligent Power Manager (IPM) system.

These advantages, combined with an ergonomic design make this model ideal for corporate environments.

Benefits

  • Input – Display can be used with one digital (DVI-D) and one analogue input.
  • Affordable Green – low power consumption with latest W-LED backlight technology, EcoMode function and Carbon Footprint Meter / Carbon Savings Meter.
  • Ergonomic Office – full height adjustability (50 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
  • Vesa Mount (100 mm) – allows to install the monitor via various mounting solutions.
  • NaViSet Compatible – for comprehensive network-wide asset management and easier remote support.
DISPLAY
Panel Technology TN with W-LED backlight
Screen Size [inch/cm] 17 / 43
Pixel Pitch [mm] 0.264
Brightness (typ.) [cd/m²] 250
Contrast Ratio (typ.) 1000:1
Viewing Angle [°] 170 horizontal / 160 vertical (typ. at contrast ratio 10:1); 170 horizontal / 170 vertical (typ. at contrast ratio 5:1)
Response Time (typ.) [ms] 5
Colours [Mio.] 16.7

SYNCHRONISATION RATE

Horizontal Frequency [kHz] 31.5 - 81.1
Vertical Frequency [Hz] 56 - 76

RESOLUTION

Optimum Resolution
1280 x 1024 at 60 Hz
Supported
1024 x 768;1152 x 864;1152 x 870;1280 x 960;640 x 480;720 x 400;800 x 600;832 x 624

CONNECTIVITY

Digital 1 x DisplayPort; 1 x HDMI
Analog 1 x VGA

ELECTRICAL

Power Consumption on Mode [W] 14 (typ.); 19 (max.); 9 (Eco Mode)
Power Savings Mode [W] < 0.4
Power Supply 0.4 A/0.2 A; 100-120 V/220-240 V; internal power supply

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80

ERGONOMICS

Height adjustable Stand [mm] 50
Screen Tilt [°] -5 to +20

MECHANICAL

Bezel Width [mm] 14.2 (left and right); 17.5 (top and bottom)
Dimensions (W x H x D) [mm] 368 x 358.5 - 408.5 x 230 (Landscape mode)
Weight [kg] With stand: 4; Without stand: 2.8
VESA Mounting [mm] 100 x 100

ADDITIONAL FEATURES

Special Characteristics 17" (5:4) Highly efficient panel with white LED backlight saves more than 30 % energy; Carbon Savings Meter; NaViSet Administrator 2; Rapid Response Technology; Versatile installation (VESA standard), with integrated speakers (1+1 W); Windows 8 compatible
Colour Versions Black Front Bezel, Black Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play DDC2B/2Bi; EDID Standard; VESA DDC/CI
Audio Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions Auto Adjust; Brightness; Colour Temperature Control; Contrast; Fine Adjust (analog); Language Select; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; Volume
Shipping Content DisplayPort Cable; Monitor; Power Cable; Setup Guide
Safety and Ergonomics CE; EAC; EnergyStar 8.0; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Warranty 3 years warranty incl. backlight

GREEN FEATURES

Energy Efficiency Energy consumption: 9 kWh/1000 h; Energy efficiency class: C; LED backlight technology
Ecological Standards Energy Star 8.0; ErP compliant; RoHS compliant; TCO 8.0
