NEC

NEC 55" Du-Co Room System LCD 55" Dual Collaboration Room System

NEC 55" Du-Co Room System LCD 55" Dual Collaboration Room System

Out of stock

SKU:40001570

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

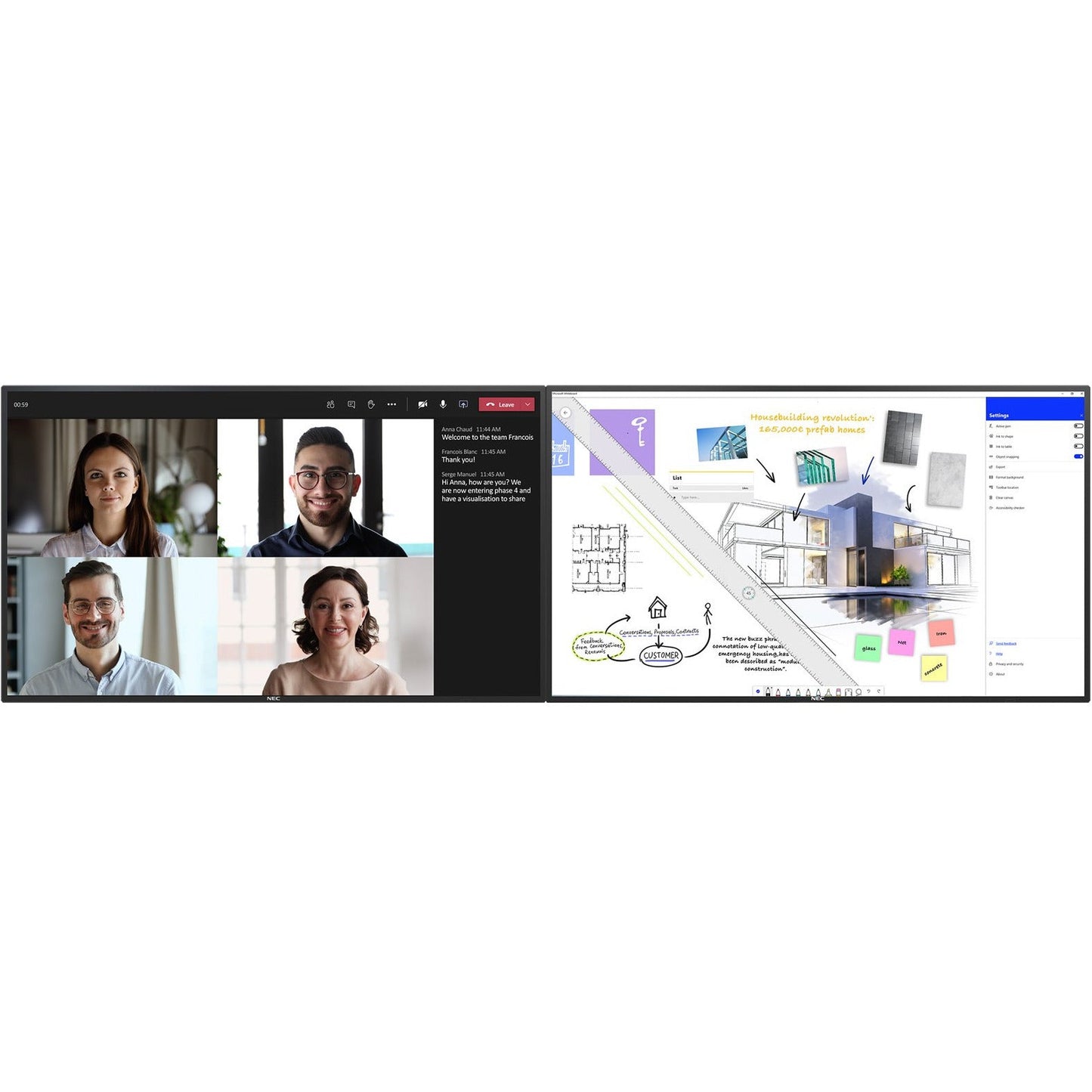

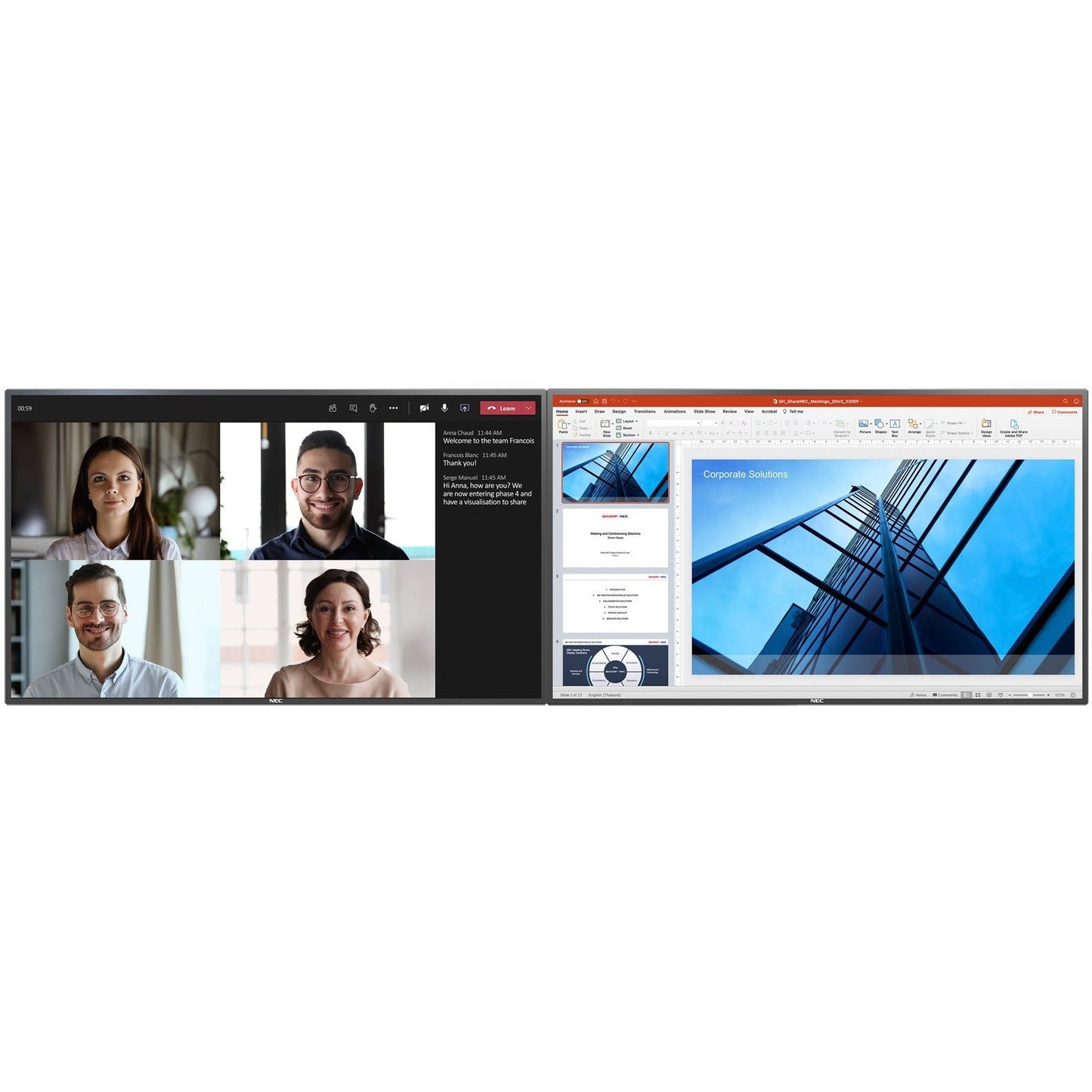

Dual-Screen Room System for creative and interactive hybrid meetings

The 55” NEC Dual-Screen Room System combines two displays, an interactive NEC MultiSync® M551 IGB and an identically designed non-interactive MultiSync® M551 IGB non-touch, into a comprehensive user-friendly system. It is ideally suited for meeting and collaboration environments, whether for fully present or hybrid team meetings. With a sleek and elegant design, the display solution seamlessly fits into modern office spaces.

When working with an interactive and a non-interactive display in a dual-screen scenario, users no longer need to compromise between design and functionality. With the 55” NEC Du-Co Room System, users not only benefit from a visually pleasing solution but also an enhanced usability. Equipped with an InGlass™ touch display, the system offers a best-in-class pen-on-paper writing experience. Optimised for video conferencing (VC) room systems, the display solution facilitates creative processes in hybrid meetings, such as in Microsoft Teams or Zoom.

Benefits

  • Don't compromise on design – combining an interactive and non-interactive display with the same sleek and elegant design.
  • Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.
  • Both displays featuring NEC Open Modular Intelligence (OMI) slot-in technology – choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel® Smart Display Modules (Intel® SDM) for tailor-made solutions.
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Be more productive – get a free version of FlatFrog Board for Rooms! FlatFrog Board whiteboard software makes hybrid work easy and equally productive for everyone.

Display

Panel Technology
  • IPS with Edge LED backlights
  • IPS with Edge LED backlights
Screen Size [inch/cm]
  • 55 / 138.8
  • 55 / 138.8
Aspect Ratio
  • 16:9
  • 16:9
Brightness (without glass) [cd/m²]
  • 500
  • 500
Contrast Ratio (default)
  • >
  • 8000:1
  • >
  • 8000:1
Viewing Angle [°]
  • 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  • 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
  • 1,076 (10bit)
  • 1,076 (10bit)
Response Time (typ.) [ms]
  • 8
  • 8
Panel Refresh Rate [Hz]
  • 60
  • 60
Supported Orientation
  • Face Up 1
  • Landscape
  • Portrait
  • Face Up 1
  • Landscape
  • Portrait

Touch

Touch Technology
  • InGlass™
  • -
Number of Touches
  • Real multi-touch up to 20 touches
  • -
Response Time [ms]
  • ≤ 15
  • -
Touch Method
  • Finger
  • Gloves
  • Stylus (≥ 2 mm)
  • -
Supported Operating System
  • Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android
  • Default Mouse: Windows XP, Windows Vista, Mac OS X
  • Raspberry Pi
  • -
Data Interface
  • USB-HID
  • -
Accuracy [mm]
  • <
  • 1
  • -
Palm Rejection
  • yes
  • -
Windows Ink
  • yes
  • -

Glass

Type
  • Premium toughened glass, anti-glare coating
  • Premium toughened glass, anti-glare coating
Thickness [mm]
  • 3
  • 3
Haze Level [%]
  • ≦ 5 ± 3
  • ≦ 5 ± 3
Hardness [H]
  • 7
  • 7

Resolution

Native Resolution
  • 3840 x 2160
  • 3840 x 2160
Supported Resolutions
  • 1024 x 768
  • 1280 x 1024
  • 1280 x 720
  • 1360 x 768
  • 1366 x 768
  • 1400 x 1050
  • 1440 x 900
  • 1600 x 1200
  • 1650 x 1050
  • 1900 x 1200
  • 1920 x 1080
  • 1920 x 2160
  • 2560 x 1440
  • 2560 x 1600
  • 3840 x 2160
  • 4096 x 2160
  • 1024 x 768
  • 1280 x 1024
  • 1280 x 720
  • 1360 x 768
  • 1366 x 768
  • 1400 x 1050
  • 1440 x 900
  • 1600 x 1200
  • 1650 x 1050
  • 1900 x 1200
  • 1920 x 1080
  • 1920 x 2160
  • 2560 x 1440
  • 2560 x 1600
  • 3840 x 2160
  • 4096 x 2160

Synchronisation Rate

Horizontal Frequency [kHz]
  • 26 - 91.1
  • 26 - 91.1
Vertical Frequency [Hz]
  • 23 - 86
  • 23 - 86

Connectivity

Input Video Digital
  • 1 x DisplayPort (with HDCP)
  • 2 x HDMI (with HDCP)
  • 1 x DisplayPort (with HDCP)
  • 2 x HDMI (with HDCP)
Input Audio Digital
  • 1 x DisplayPort
  • 2 x HDMI
  • 1 x DisplayPort
  • 2 x HDMI
Input Control
  • LAN 100Mbit
  • remote control wire (3,5mm jack)
  • RS232
  • LAN 100Mbit
  • remote control wire (3,5mm jack)
  • RS232
Input Data
  • 1 x USB 2.0 (MediaPlayer)
  • 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue
  • 1 x 3,5 mm jack
  • 1 x 3,5 mm jack
Input Detect
  • Custom
  • First
  • Last
  • Custom
  • First
  • Last
PiP/PbP
  • Quad-Split
  • scalable picture size
  • Triple-Split
  • Quad-Split
  • scalable picture size
  • Triple-Split

Open Modular Intelligence

Intel® SDM
  • accepts Intel® Smart Display Modules Large and Small up to 66 W
  • accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot
  • RPi Compute Module 4
  • RPi Compute Module 4

Sensors

Temperature Sensor
  • Integrated, 3 sensors, triggered actions programmable
  • Integrated, 3 sensors, triggered actions programmable

Electrical

Power Consumption Eco/max. [W]
  • 110 shipping
  • 110 shipping
Power Savings Mode [W]
  • <
  • 0.5
  • <
  • 2 (Networked Standby)
  • <
  • 0.5
  • <
  • 2 (Networked Standby)
Power Management
  • VESA DPMS
  • VESA DPMS
Power Supply
  • 100-240 V AC
  • 50/60 Hz
  • internal
  • 100-240 V AC
  • 50/60 Hz
  • internal

Environmental Conditions

Operating Temperature [°C]
  • +0 to +35
  • +0 to +35
Operating Humidity [%]
  • 20 to 80
  • 20 to 80
Storage Humidity [%]
  • 10 to 90
  • 10 to 90
Storage Temperature [°C]
  • -20 to 60
  • -20 to 60

Mechanical

Dimensions (W x H x D) [mm]
  • 1,284.5 x 757.3 x 70.9
  • 1,284.5 x 757.3 x 70.9
Weight [kg]
  • 38.5
  • 38
Bezel Width [mm]
  • 18.4 (left and right)
  • 18.4 (top and bottom)
  • 18.4 (left and right)
  • 18.4 (top and bottom)
VESA Mounting [mm]
  • 300 x 300 (FDMI)
  • 4 holes
  • M6
  • 300 x 300 (FDMI)
  • 4 holes
  • M6
Ingress Protection
  • IP5x (front)
  • IP2x (back)
  • IP5x (front)
  • IP2x (back)
Packaging Dimensions (W x H x D) [mm]
  • Box 1: 1,430 x 920 x 250
  • Box 2: 1,430 x 920 x 250
Packaging Weight [kg]
  • Box 1: 47
  • Box 2: 46

MediaPlayer

Supported File Storage / File System
  • USB 2.0 / FAT16, FAT32
  • USB 2.0 / FAT16, FAT32
Supported Image Formats
  • JPG (baseline, progressive, RGB, CMYK)
  • max. resolution 15360 x 8640
  • JPG (baseline, progressive, RGB, CMYK)
  • max. resolution 15360 x 8640
Supported Video Formats
  • MPG (MPEG1/2/4, max res 1080p@30Hz)
  • MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz)
  • TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz)
  • audio: LPCM, MP3, AAC
  • WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
  • MPG (MPEG1/2/4, max res 1080p@30Hz)
  • MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz)
  • TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz)
  • audio: LPCM, MP3, AAC
  • WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats
  • MP3 (MP3)
  • max. bit-rate 320 kBit/s
  • MP3 (MP3)
  • max. bit-rate 320 kBit/s

Available Options

Accessories
  • Presence Sensor (KT-RC3)
  • Soundbar (SP-ASCM-IQ2
  • SP-ASCM-2)
  • Speaker (SP-RM3a)
  • Wall mount (L20PNWALL90EU)
  • Soundbar (SP-ASCM-IQ2
  • SP-ASCM-2)
  • Speaker (SP-RM3a)
  • Wall mount (L20PNWALL90EU)

Green Features

Energy Efficiency
  • Energy consumption: 100 kWh/1000 h
  • LED backlight
  • Energy consumption: 100 kWh/1000 h
  • LED backlight
Ecological Standards
  • EnergyStar 8.0
  • EnergyStar 8.0

Additional Features

Special Characteristics
  • DICOM Simulation
  • HDMI ARC
  • Powered USB Port (10 W)
  • DICOM Simulation
  • HDMI ARC
  • Powered USB Port (10 W)
Safety and Ergonomics
  • CE
  • EAC
  • RoHS
  • CE
  • EAC
  • RoHS
Pixel Failure Class
  • ISO 9241-307, Class 1
  • ISO 9241-307, Class 1
Audio
  • Integrated Speakers (10 W + 10 W)
  • Integrated Speakers (10 W + 10 W)
Shipping Content
  • 2 x Stylus
  • 2x AAA batteries
  • Display
  • HDMI Cable
  • Power Cable
  • Remote Control
  • Setup Manual
  • USB cable
  • 2x AAA batteries
  • Display
  • HDMI Cable
  • Power Cable
  • Remote Control
  • Setup Manual
Warranty
  • 3 years warranty incl. backlight
  • additional services available
  • 3 years warranty incl. backlight
  • additional services available
Operating Hours
  • 24/7
  • 24/7
External Control
  • AMX NetLinx Support
  • ASCII Control Commands
  • Crestron Connected
  • HDMI CEC
  • HTTP Browser
  • PJLink
  • Scheduled Timer
  • SNMP
  • AMX NetLinx Support
  • ASCII Control Commands
  • Crestron Connected
  • HDMI CEC
  • HTTP Browser
  • PJLink
  • Scheduled Timer
  • SNMP
Remote Management
  • Automated Email Alerts
  • NEC NaViSet Administrator 2
  • Automated Email Alerts
  • NEC NaViSet Administrator 2
Security
  • Disable HW Buttons
  • Disable IR Functionality
  • Emergency Notification
  • Disable HW Buttons
  • Disable IR Functionality
  • Emergency Notification
