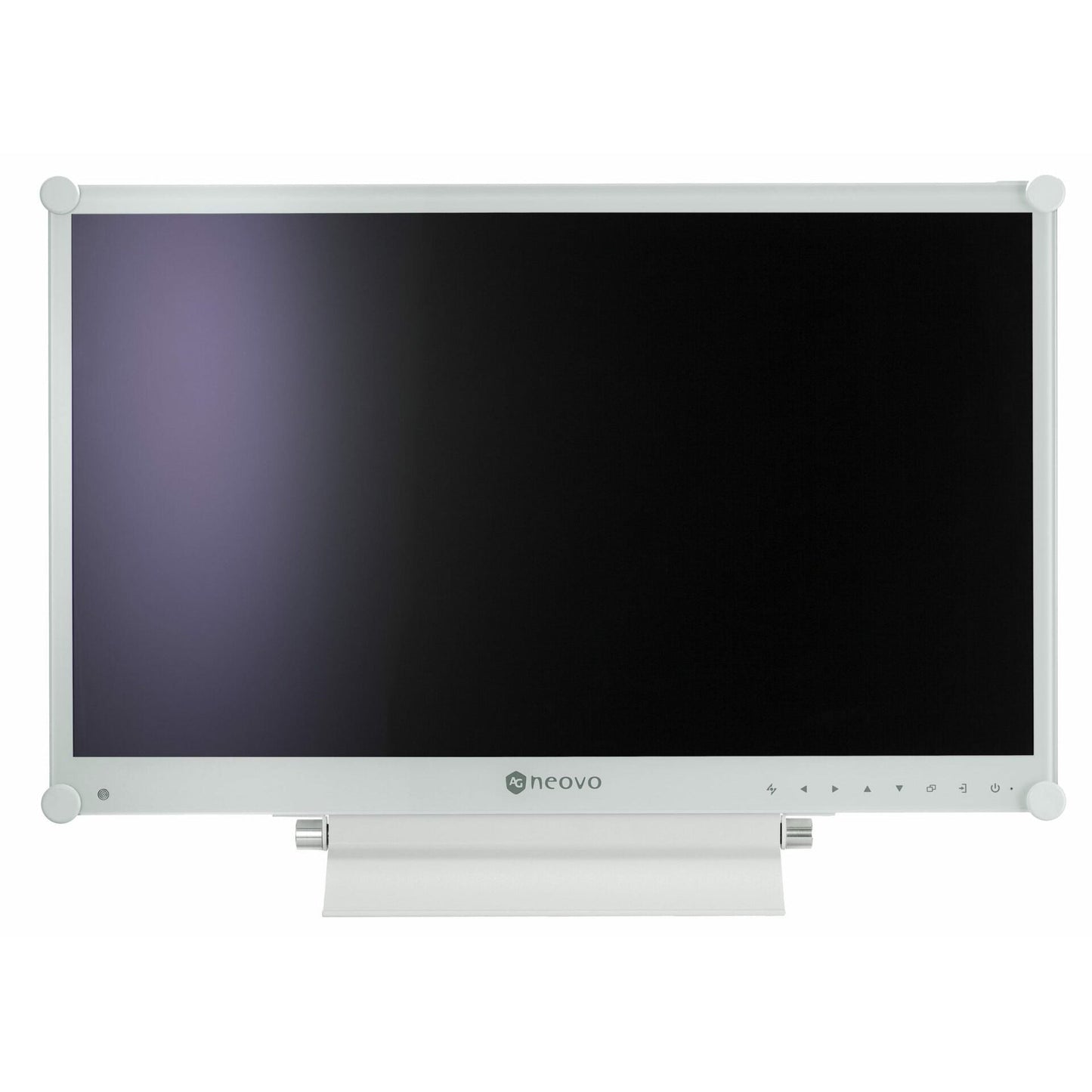

AG Neovo MX-24 24-Inch 1080p DICOM Compatible Monitor
AG Neovo MX-24 24-Inch 1080p DICOM Compatible Monitor
Out of stock
SKU:MX-24
Couldn't load pickup availability
Features
- Full HD 1920 x 1080 resolution
- Compatible with DICOM Part 14 standard
- Certified with IEC/EN 60601-1 and IEC/EN 60601-1-2
- Medical adapter certified to the IEC/EN 60601-1 medical design
- NeoV Optical Glass screen and metal housing for clinical hygiene

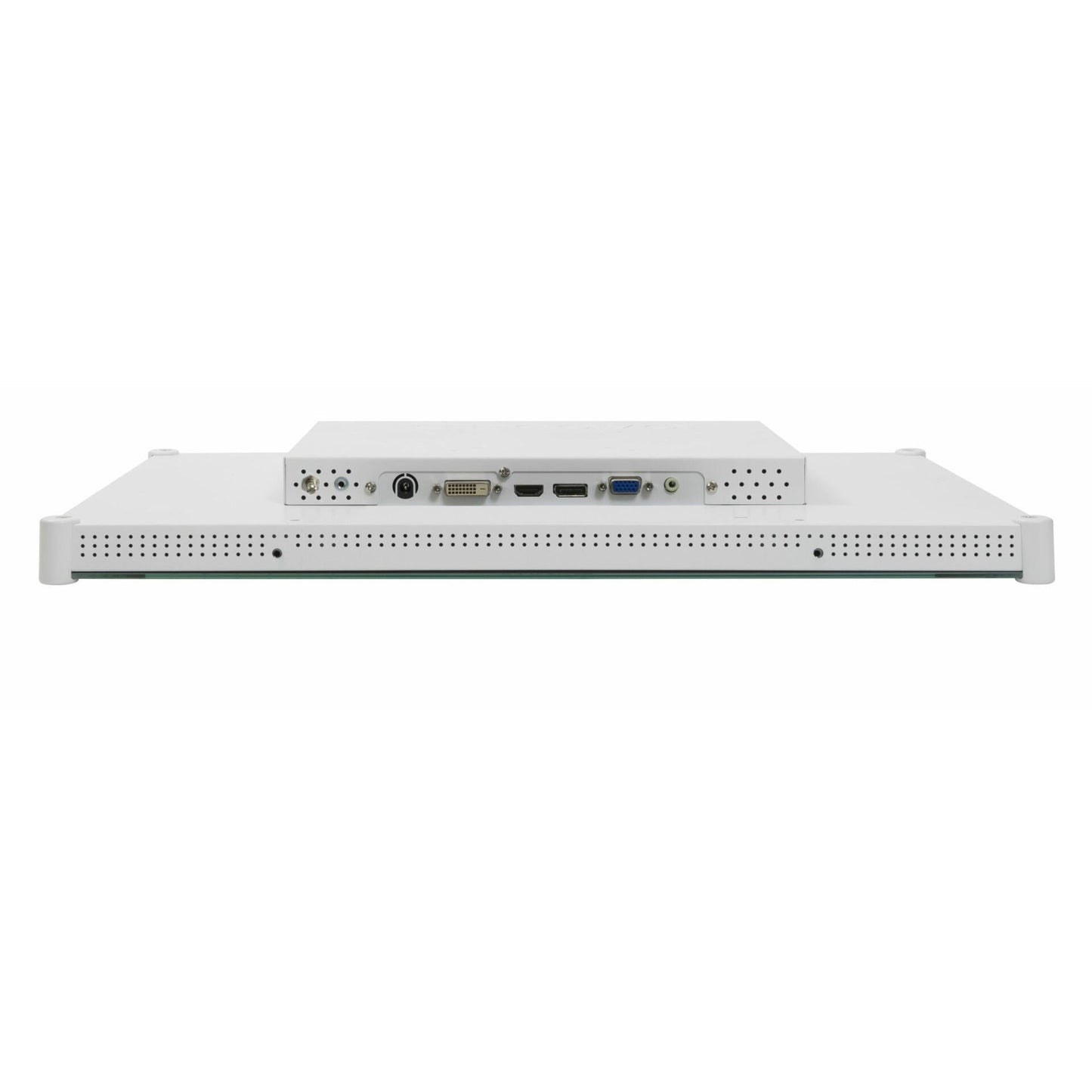

- Versatile connectivity: VGA, DVI, HDMI, DisplayPort inputs
The MX-24 is a 24-inch DICOM monitor featuring Full HD 1080p resolution, certified with IEC/EN 60601-1 and IEC/EN 60601-1-2 medical electrical equipment standard, with medical-grade low-voltage power supply. Compatible with DICOM Part 14 standard, it ensures accurate and excellent medical image quality, colour reproduction, and image contrast. Equipped with NeoV™ Optical Hard Glass, the MX-24 withstands alcohol and other commonly used cleaning solutions, allowing medical professionals to sanitize it easily.
EASY CLEAN AND ROBUST PROTECTION
The special design of NeoV Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.
DICOM PART 14 CALIBRATION
DICOM Part 14 calibration corrects gamma and luminance to achieve the smooth grayscale for the accurate and consistent appearance of clinical data and other medical images.
IEC/EN 60601-1 AND IEC/EN 60601-1-2 CERTIFIED MONITOR AND POWER SUPPLY
In addition to medical-grade power supply, the MX-Series is fully certified with IEC/EN 60601-1 and IEC/EN 60601-1-2 that ensures safety, performance and reliability.
PIP/PBP SUPPORT
This 24-Inch DICOM monitor enhances work efficiency with PiP/PbP support for multitasking.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 23.8"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.274 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 20,000,000:1 (DCR)
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Response Time
- 5 ms
- Surface Treatment
- Seriesant1-Glare Treatment (Haze 40%),3H Hard Coating
Frequency
- Frequency (H)
- 24 kHz-83 kHz
- Frequency (V)
- 50 Hz-75 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.4 x 1
- DVI
- 24-Pin DVI-D
- VGA
- 15-Pin D-Sub x 1
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 2W x 2
Power
- Power Supply
- External
- Power Requirements
- DC 12V
- 2.5A
- On Mode
- 18W (On)
- Standby Mode
- < 0.5W
- Off Mode
- < 0.3W
Glass
- Thickness
- 3.0 mm (0.12")
- Reflection Rate
- < 1%
- Transmission Rate
- > 97%
- Hardness
- > 9H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 10%-90% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 5%-95% (non-condensing)

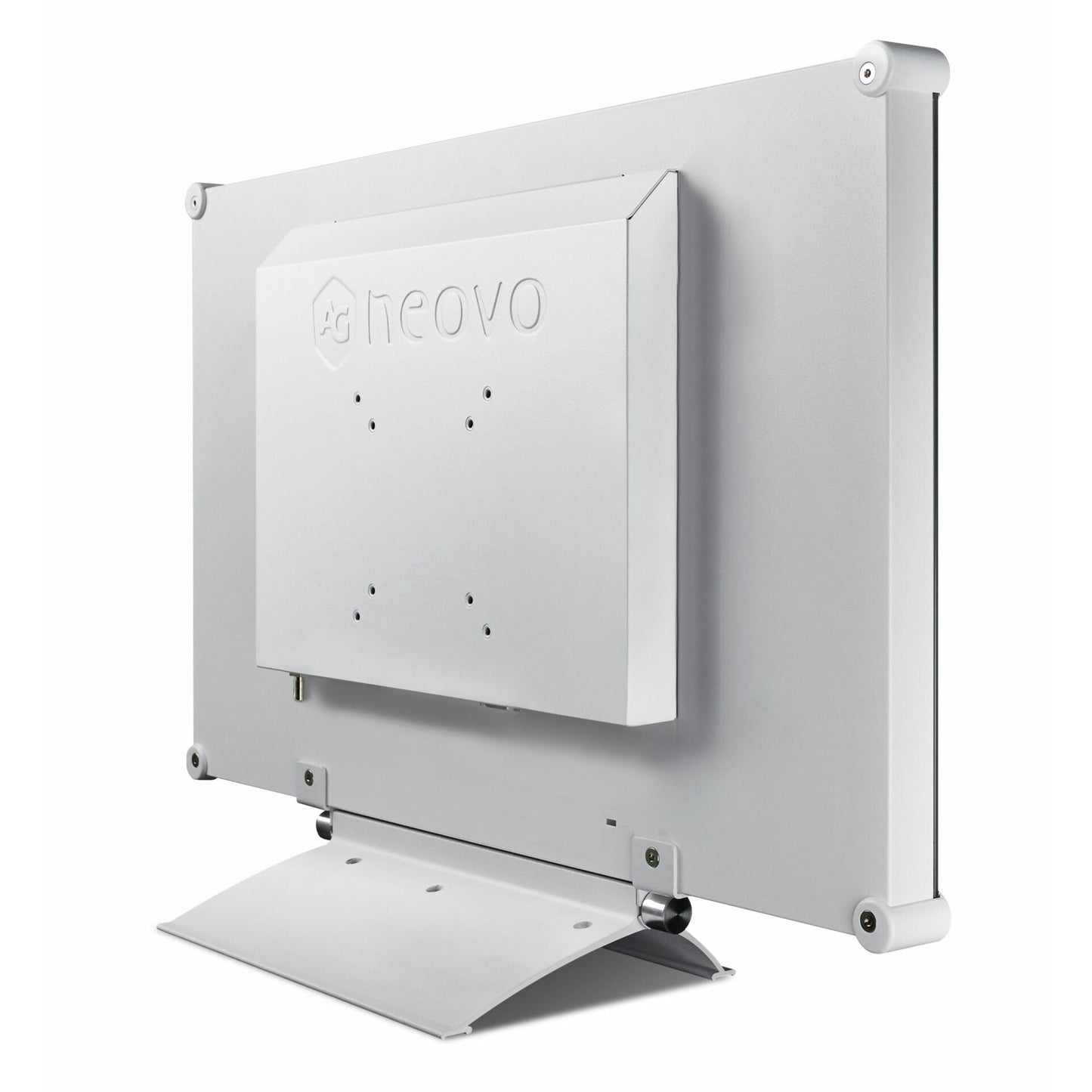

Mounting
- VESA FPMPMI
- Yes (100 x 100 mm & 75 x 75 mm)
Stand
- Tilt
- 3° to 21°
Security
- Kensington Security Slot
- Yes
Dimensions
- Product with Base (W x H x D)
- 562.4 x 392.8 x 196.0 mm (22.1" x 15.4" x 7.7")
- Product w/o Base (W x H x D)
- 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2")
- Packaging (W x H x D)
- 672.0 x 517.0 x 249.0 mm (26.5" x 20.4" x 9.8")
Weight
- Product with Base
- 7.8 kg (17.2 lb)
- Product w/o Base
- 7.0 kg (15.4 lb)
- Packaging
- 10.9 kg (24.0 lb)
Regulation Approval
- Certifications & Compliance
Accessories
- Supplied
- Audio Cable
- Power Adaptor
- Power Cord
- Quick Start Guide
- VGA Cable
Optional Accessories
- Handle
- HDL-02
- Ceiling Mount (Landscape only)
- CMP-01 + WMK-03
- Wall Mount (Landscape only)
- PMK-01
- WMA-01
- WMK-01
- WMK-03
- Desk mount (Landscape only)
- DMC-01
- DMC-02D
- DMS-01D
- ES-02
