Chief (legrand AV)

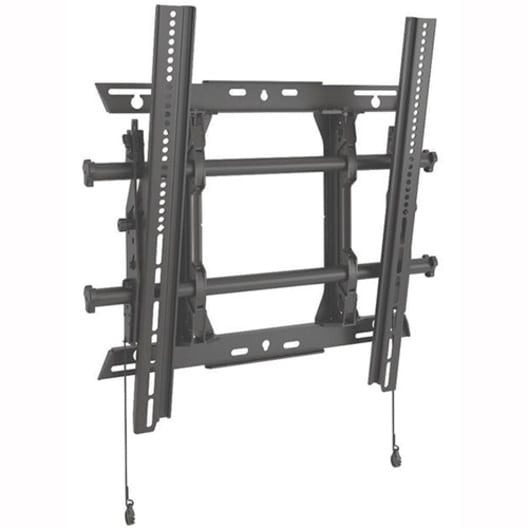

Chief MTMP UNIVERSAL

Chief MTMP UNIVERSAL

Low stock

MTMP1U

Login to see price
Login to see price Login to see price
Sale Sold out

Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security.

The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Dimensions & Measurements
Depth
8.1 cm (3.2 in)
Height
62.2 cm (24.5 in)
Lateral Shift
26.4 cm (10.4 in)
Manual Height Adjustment
25.4 mm (1 in)
Minimum Depth
8.1 cm (3.2 in)
Overall Dimensions
24.5" x 20.88" x 3.2" (622x530x81mm)
Shipping Weight
11.5 kg (25.3 lbs)
Tilt
+5° / -12°
Typical Screen Size
43" - 47" (1092mm - 1194mm) and stretch aspect displays with compatible mounting patterns
Wall Stud Compatibility In
16" (406mm) and single stud and weight capacity is reduced to 125 lbs (56.7 kg) for single stud mounting
Weight Capacity
90.7 kg (200 lbs)
Width
53 cm (20.9 in)
Characteristics & Features
Adjustability
  • Height Adjustable
  • Lateral Shift
  • Micro-Adjustable
  • Tilt
Application
Wall
Color
Black
Number of Displays
1
Orientation
Portrait
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
100 x 100 - 571 x 600mm
Certifications & Warranties
Certifications
  • OSHPD
  • TUV
  • UL Listed
