Micro PC Intel Atom® Quad Core

Micro PC Intel Atom® Quad Core

Out of stock


Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Make your Digital Signage a success

Whilst securing low initial and operational costs, the Intel-based computing system includes all professional requirements for reliable and compelling signage applications. It supports static and dynamic content up to crisp Full HD video playback. It’s a perfect entry to signage playback performance for convincing advertisements and information, in a thin, small sized standalone form-factor for simple integration. Delivering performance for basic digital signage applications, this external computing solution is used to power media players for retail signage, menu board play-out systems for QSR, information displays in museums and enterprises and much more.

Delivering Genuine Benefits

  • Performance and value you can rely on - Intel® Quad Core Atom Processor (“Cherry Trail”) with Integrated Intel® Graphics
  • Stunning pictures - Integrated Intel HD Graphics is ideally suited for numerous Digital Signage applications including static content and Full HD video playback
  • Make a good connection - simple device fixing to the rear of the display and the possibility to power up directly from the display’s USB output; this Micro PC solution enables smartly connected signage playout, especially for the NEC C-Series large format displays.
  • Fan-less design - ensuring silent operation plus increased durability and reliability
  • High usage flexibility - wide connectivity options include 3 USB ports, HDMI, mSD Card slot, Gigabit Ethernet and integrated WiFi with 2.4 and 5GHz
  • Green and Economical - super low power consumption saves the wallet and the environment

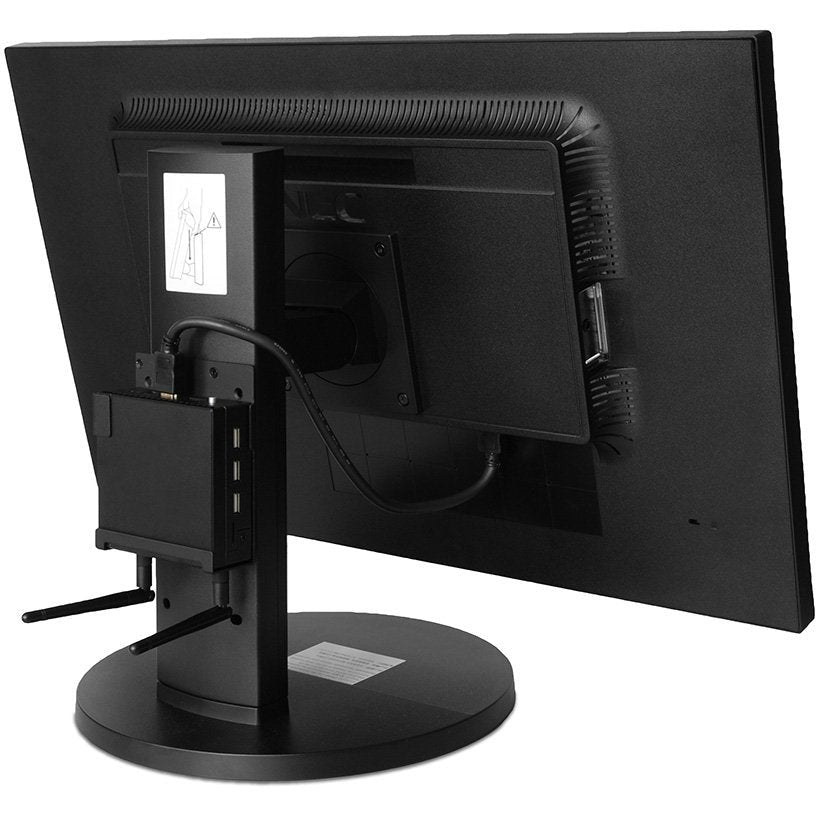

  • Space saving installation - the small form factor allows unobtrusive installation to the back of the display
  • One PC-System - for all displays involved even if an OPS-Slot for integrated operation is not available for all devices

Technical Specifications:

Order Codes

BOX-CRT-s2/32/no OS W A


BOX-CRT-s4/64/no OS W A


BOX-CRT-s2/32/W10IoT W A


BOX-CRT-s4/64/W10IoT W A


Product Information


Intel® Atom™ Processor x5-E8350, 2M Cache, 4 x 1,44 Ghz

Graphics Controller

Intel HD graphics


1 x 204 pin DDR3L (1600 MHz, 2-4GB)


eMMC 32-64GB, size of pre-loaded W10IoT Enterprise distribution ~17GB


64Mbit Flash ROM, AMI BIOS

Hardware WatchDog

System restarts if not prevented by Software program (1-255 step)

Wake On LAN / PXE

Yes (WOL / PXE)


2 x Antenna output (Wi-Fi supporting IEEE 802.11 a/b/g/n/ac),
1 x Power button,
1 x mSD card slot,
1 x USB 3.0,
3 x USB 2.0,
1 x Gigabit Ethernet (RJ45),
1 x D-sub 9-pin RS232

Standard Operating System

Windows 10 IoT Enterprise Edition

Power Consumption (Full Load) [w]

Min: 3.9

Max: 8.3

Operating Temperature

Ambient with air flow from 0°C to 45°C

Operating Humidity

0% to 90%, non-condensing

Chassis color


CMOS Battery

Metal Lithium Battery CR2032 3V


CE / FCC class B

Dimensions [mm]

Net: 93 x 97 x 32

Gross: 248 x 212 x 59

Weight [kg]

Net: 0.7

Gross: 1


Startup Manual, Support DVD


3 Years Warranty, Additional services available

Accessory kit

Universal power supply 5V/4A, HDMI cable, USB cable, mounting bracket
