Chief (legrand AV)

Chief Medium Universal Fixed Mount

Chief Medium Universal Fixed Mount

In stock

SKU:RMF3

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

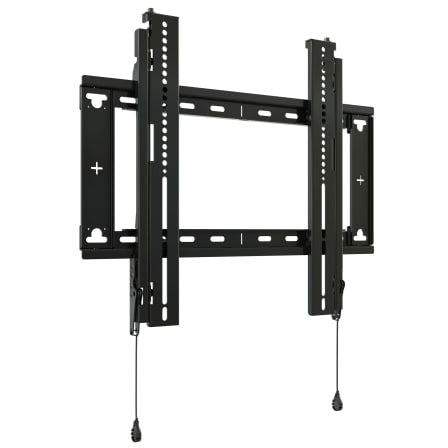

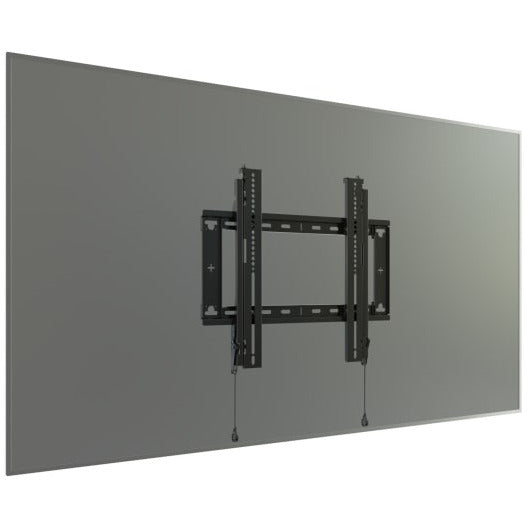

The Fit series RMF3 is a medium fixed display wall mount for 32” to 65” typical display sizes and supports mounting patterns up to 550 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.

  • Low-profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements
  • Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 550 x 450 mm
  • Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections
  • Theft deterrent security options (not included)
  • UL and TUV safety standards compliant
Dimensions & Measurements
Depth
2.5 cm (1 in)
Height
48.7 cm (19.2 in)
Manual Height Adjustment
19.1 mm (0.8 in)
Minimum Depth
2.5 cm (1 in)
Overall Dimensions
19.19" x 22" x 1" (559 x 487 x 25mm)
Shipping Weight
5.3 kg (11.7 lbs)
Typical Screen Size
32" - 65" (813mm -1651mm)
Weight Capacity
56.7 kg (125 lbs)
Width
55.9 cm (22 in)
Characteristics & Features
Adjustability
Fixed
Application
Wall
Color
Black
Orientation
Landscape
Solution Type
Universal
VESA Mounting Pattern
up to 550 x 450 mm
Certifications & Warranties
Certifications
  • TUV
  • UL Listed
