Intel® SDM Slot-In PC Advanced
Intel® SDM Slot-In PC Advanced
Out of stock
SKU:100015614
Couldn't load pickup availability

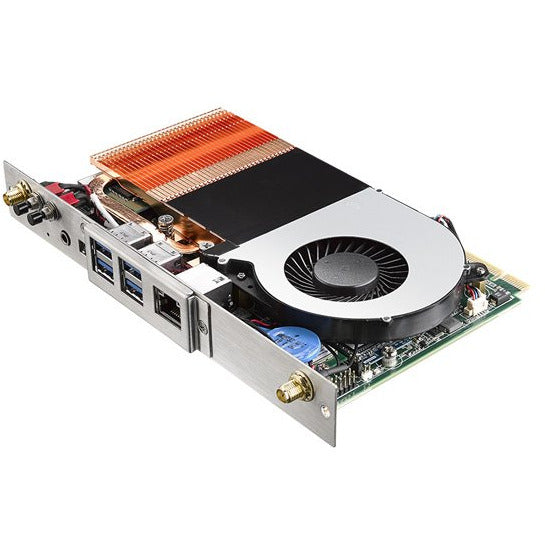

Intel® Smart Display Module (SDM) 8th Generation - The Advanced Core i5 SDM
This Core i5 powered Intel® SDM Large Slot-in PC supports a wide variety of applications such as interactive signage applications, vidoe walls and more complex intelligent signage installation where sensor and other data is processed and displayed in real time.
Tailor-made solutions can be provided with a wide choice of solid-state drives, RAM and operating systems.
| CPU | Intel® Core™ i5-8400H Processor 4x3.5GHz |
| Graphics | Intel® UHD Graphics 630 integrated Graphics controller, HW Codec: H.265/HEVC, VP8, VP9, MPEG2, JPEG, VC1/WMV9. Direct3D 2015/11.2/11.1/10/9 ; OpenGL5.0 ; OpenCL 2.0/1.2/1.0 |
| RAM | 8GB dual channel - configuration options: 4GB, 16GB, 32GB |
| Storage | 128GB M.2 SSD (SATA) - configuration options: 64GB, 256GB, 512GB, 1024GB |
| Operating System | Windows 10 IoT LTSC 2019 x64bit (pre-loaded), different configurations available on request (Build-to-order) |
Benefits
- High Performance - the Core i5-8400H processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
- Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software.
- High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
- Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
- 100% compatibility and enhanced feature-set - in combination with supported NEC large format displays.
- Built for business - the vPro® technology and TPM chipset provide enhanced performance, security and remote management capabilities.
- High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
