Iiyama ProLite TE7504MIS-B3AG 75" Interactive 4K UHD LCD Touchscreen with Whiteboard Software

Iiyama ProLite TE7504MIS-B3AG 75" Interactive 4K UHD LCD Touchscreen with Whiteboard Software

Out of stock

SKU:TE7504MIS-B3AG

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Captivate your audience with the ProLite TE7504MIS-B3AG; a perfect solution for educational and corporate use. This 75’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS 9.0) is featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.

The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840x2160), 400cd/m2 and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module, ScreenSharePro and EShare app.

PURETOUCH IR

PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.

IIWARE

iiWare 9.0 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.

IIYAMA SHARE

Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

SECURITY

Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

DISPLAY CHARACTERISTICS

Design Thin bezel
Diagonal 74.5", 189.3cm
Panel IPS, direct LED, AG coated glass, zero air-gap, haze 25%
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 400 cd/m²
Light transmittance 88%
Static contrast 1200:1
Dynamic contrast 3500:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC
Horizontal Sync 30 - 135kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom) 14mm, 14mm, 43mm
Pixel pitch 0.4296mm
Bezel colour and finish black, matte

TOUCH

Touch technology PureTouch-IR
Touch points 20, 10pt writing (HID, only with supported OS)
Touch accuracy +- 1mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (max. 1920x1080 @60Hz)
Digital signal input HDMI x3 (v.2.0, max. 3840x2160 @60Hz, YUV444)
USB-C x1 (3.1, 3840x2160 @60Hz - RGB444 - (65W charging, Touch)
Audio input Mini jack x1
Monitor control input RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1
Audio output S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W
HDCP v.2.2
USB ports x6 (media playback / peripherals / storage – front side: 2x v.3.0, right side: 2x v.3.0, 1x v.2.0, 1x USB-C v.3.1)
RJ45 (LAN) x2 (Auto switch for PC & Android, 1000MB)

FEATURES

Integrated software iiWare 9.0 (Android OS 9.0) featuring Note, web browser, file manager, cloud drives, WPS office, BytelloShare and EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
Hardware Quad core A73 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory
Extra WiFi Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen
Kiosk mode yes
Max. non-stop operating time 24/7
Media playback yes
Glass thickness 3mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL
Control buttons Power, Power Indicator, Remote Sensor, Light Sensor
User controls general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system)
Blue light reducer yes
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)

MECHANICAL

Orientation landscape
Fanless design yes
VESA mounting 800 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED

Cables power, USB, HDMI
Touch pen x4 (Dual function tips)
Guides quick start guide, safety guide

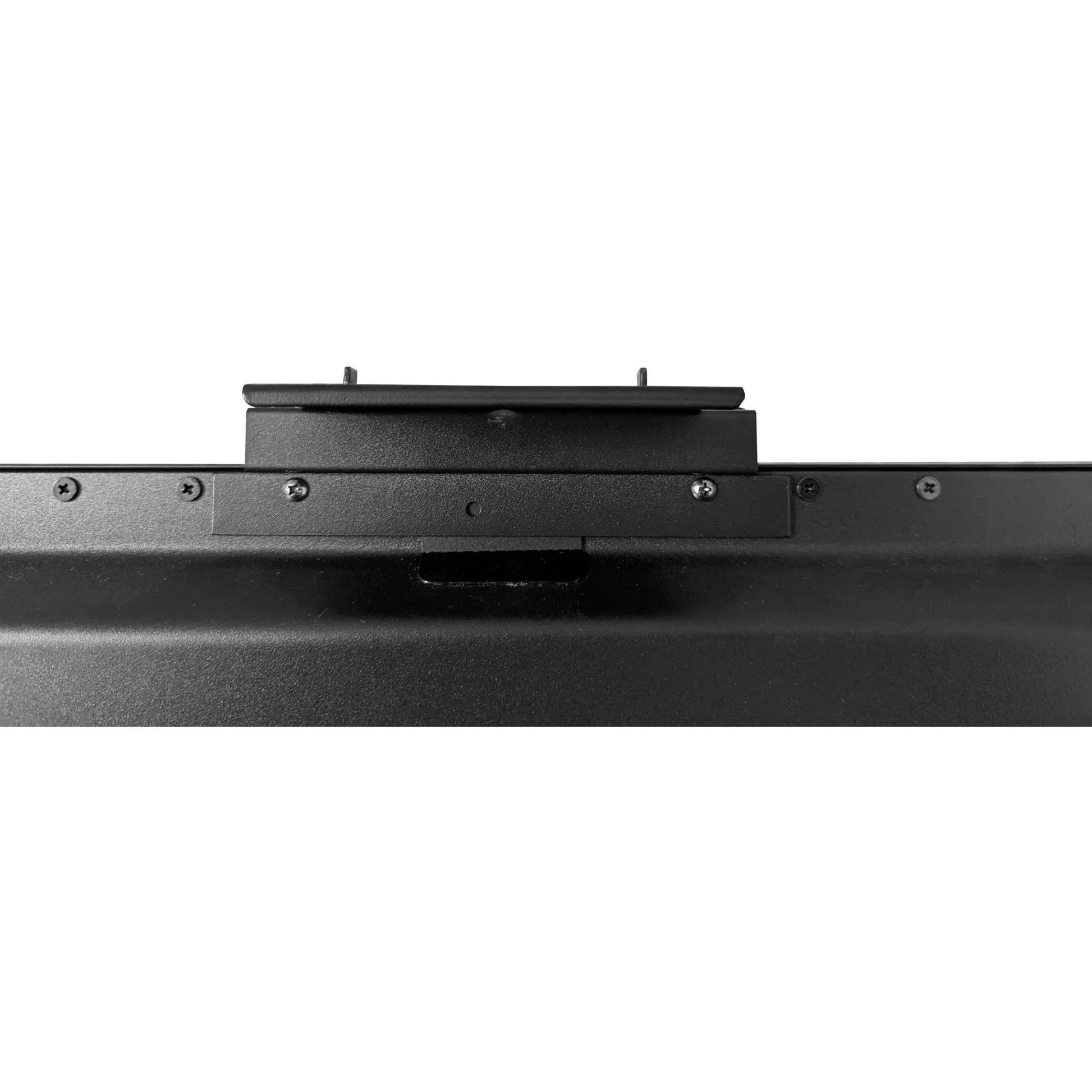

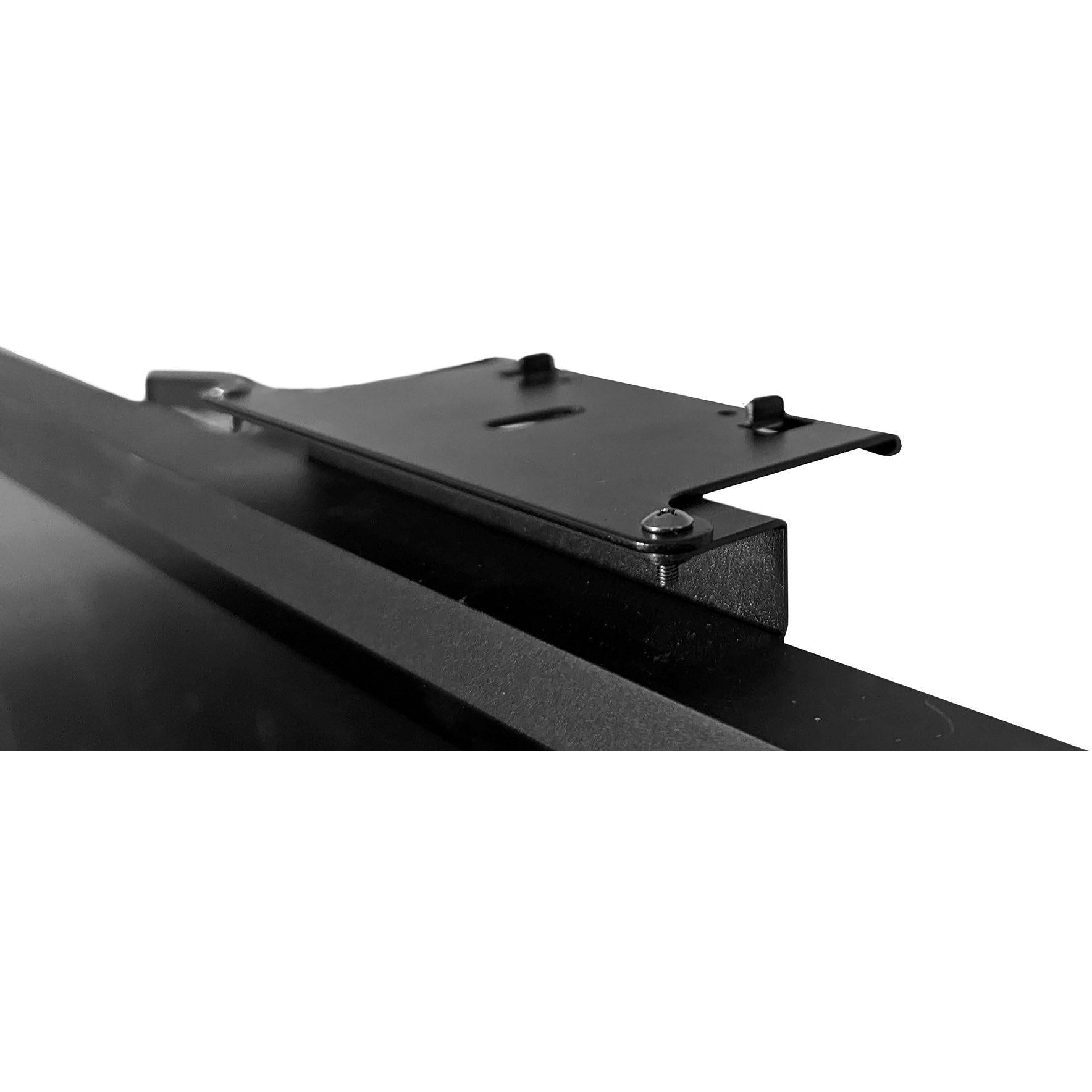

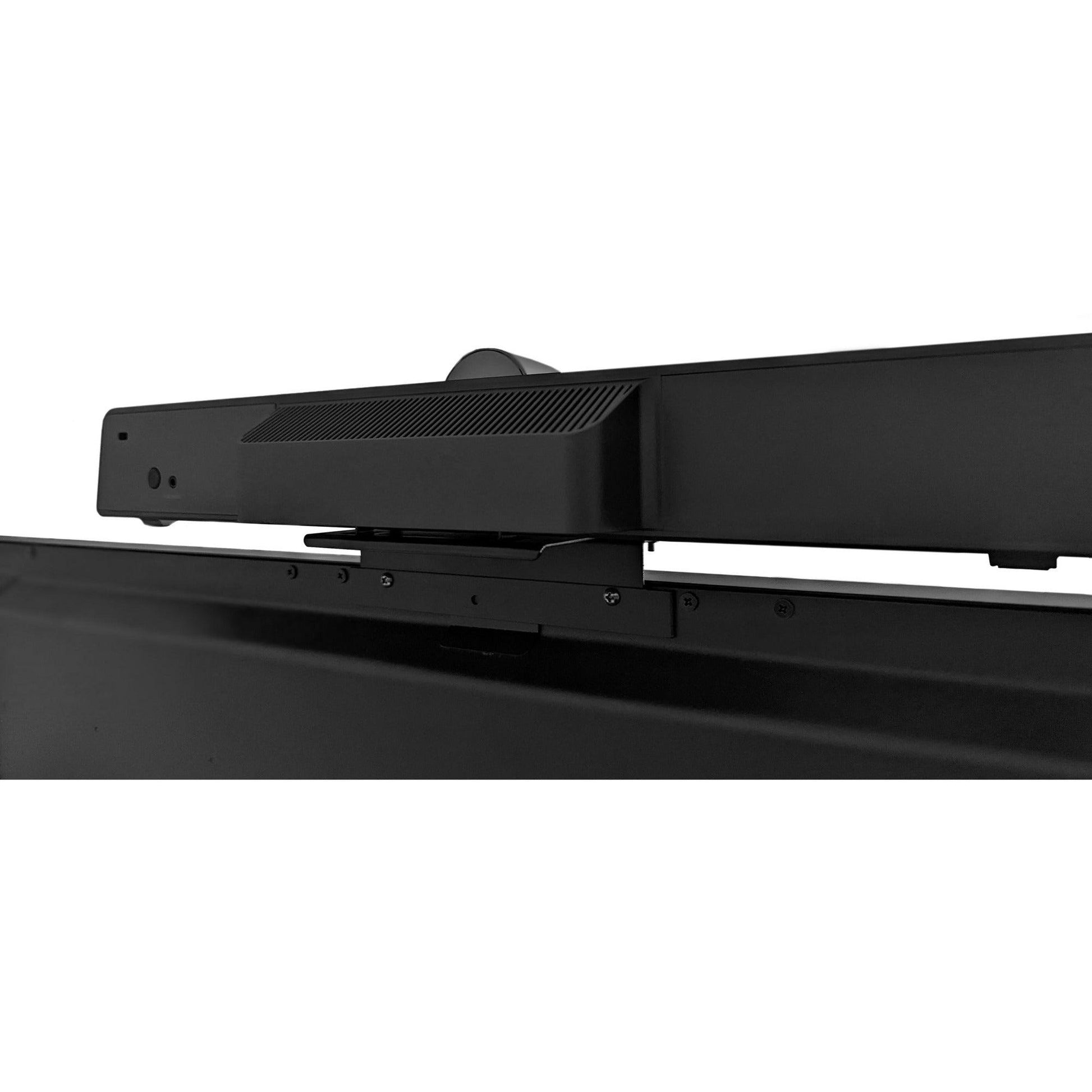

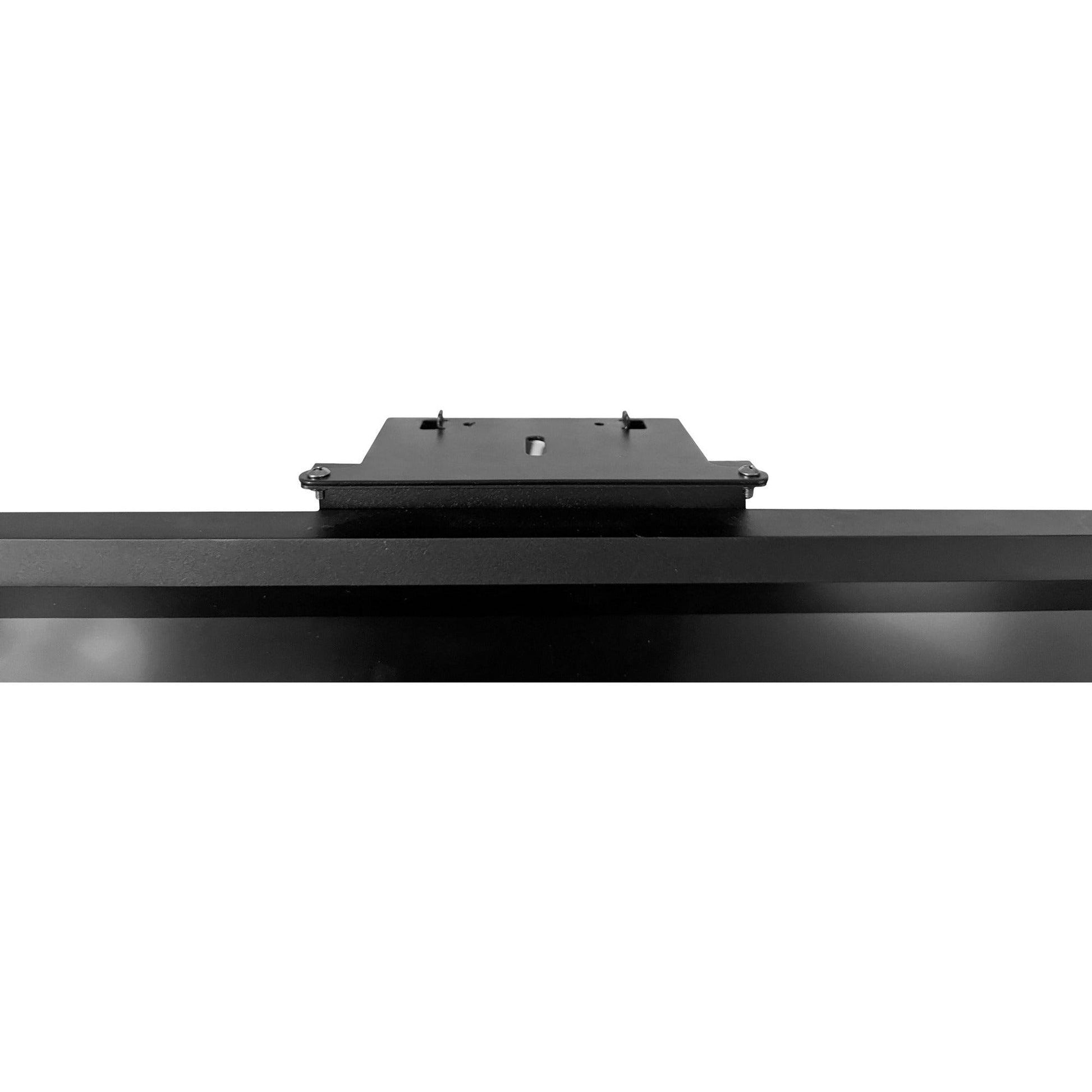

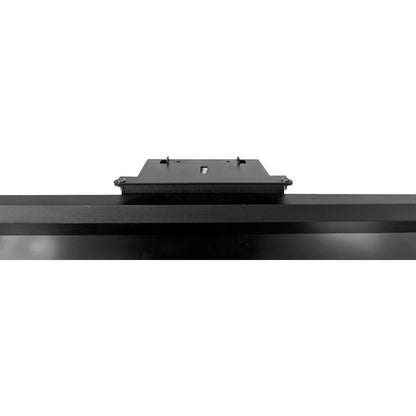

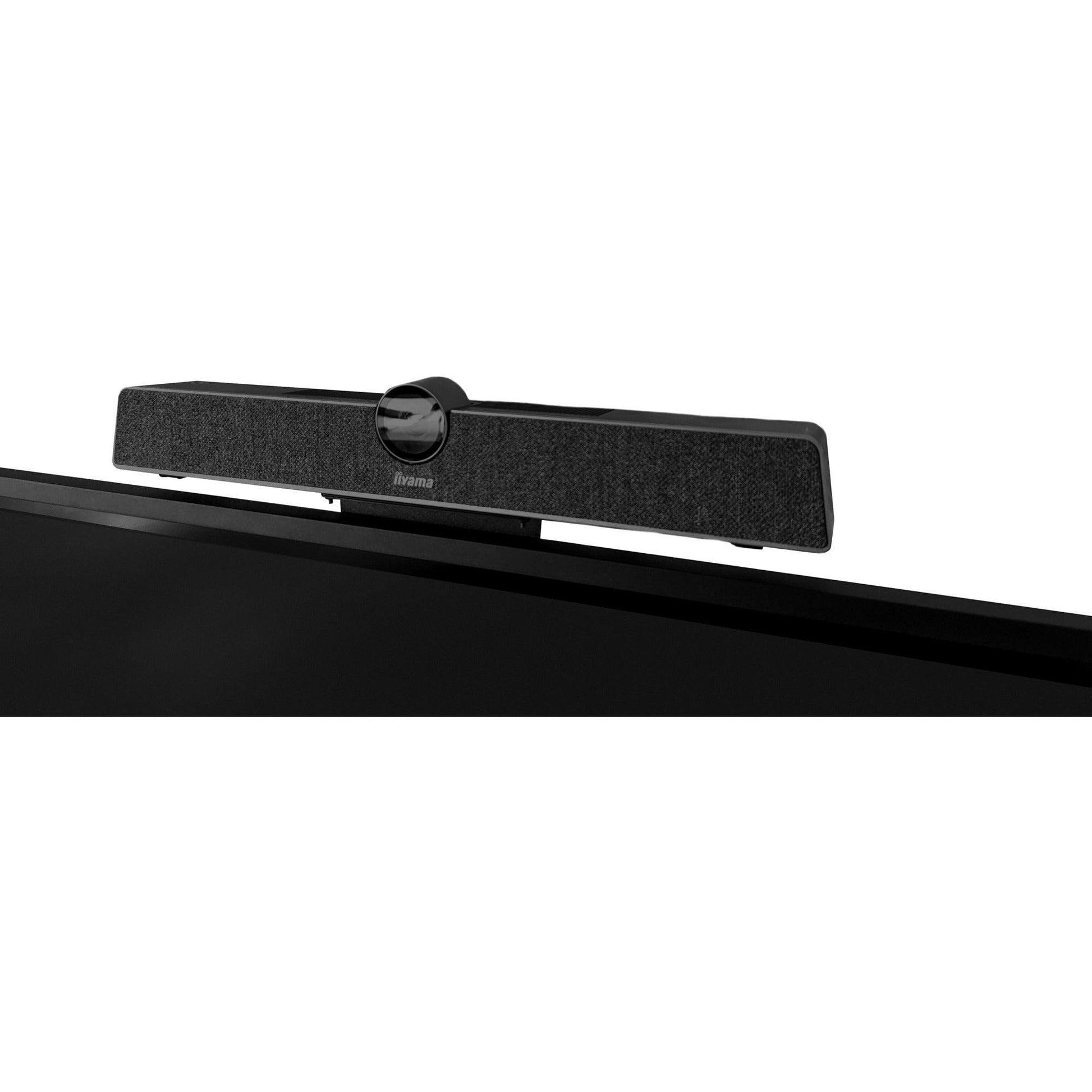

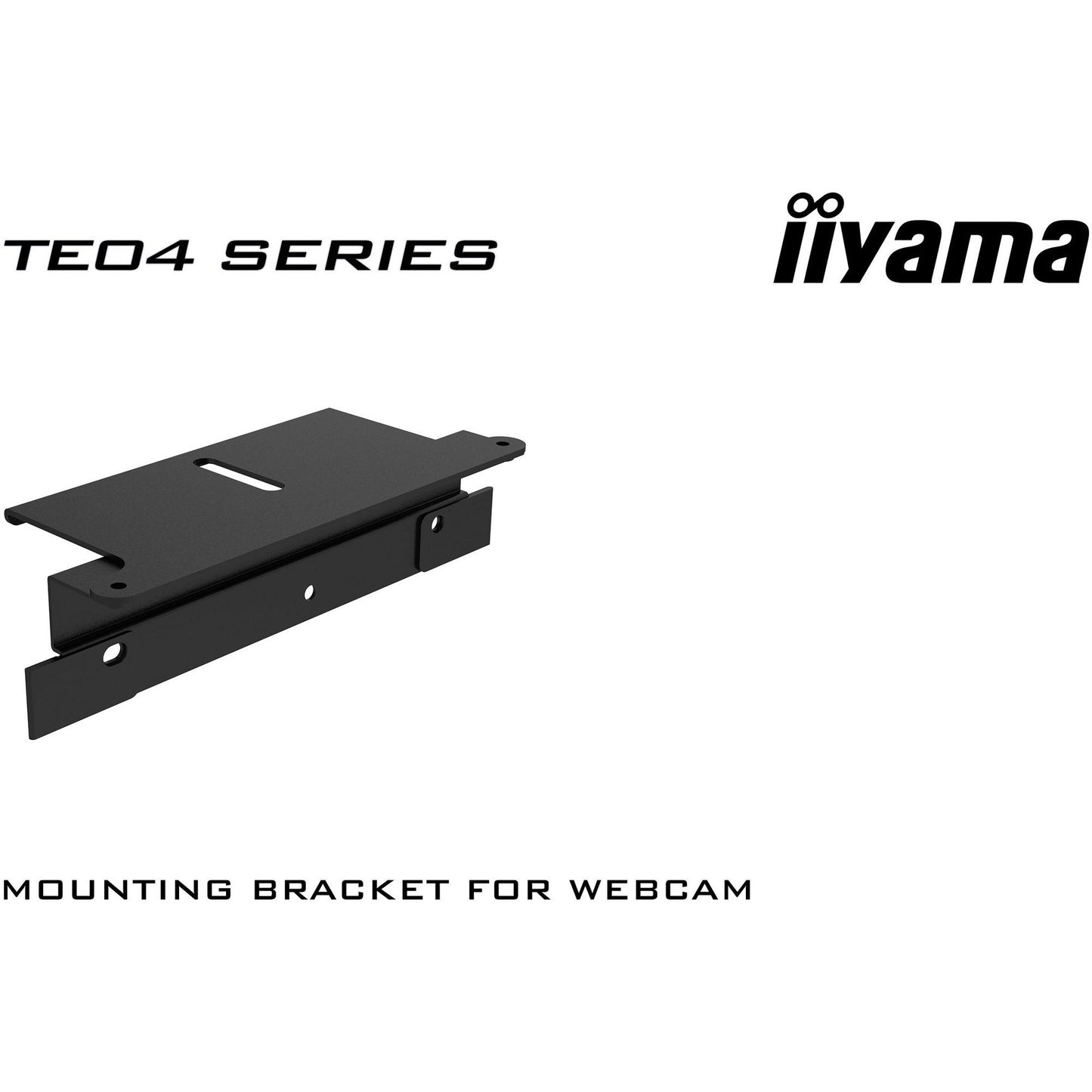

Other WiFi Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 263W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1709 x 1020 x 86mm
Box dimensions W x H x D 1863 x 225 x 1140mm
Pallet volume 4pcs
Weight (without box) 50.8kg
Weight (with box) 62kg
EAN code 4948570120437
