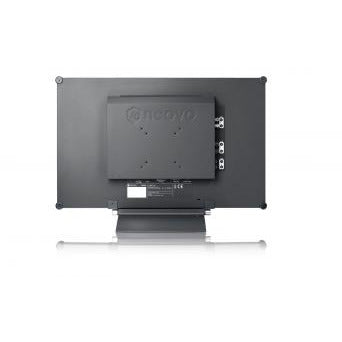

AG Neovo HX-24G 24-Inch 1080p SDI Monitor For Video Surveillance

AG Neovo HX-24G 24-Inch 1080p SDI Monitor For Video Surveillance

Low stock

SKU:HX-24G

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

Features:

  • Full HD 1920 x 1080 resolution
  • Versatile connectivity: VGA, DVI, HDMI, DisplayPort, SDI, Composite (BNC) inputs
  • Supports multiple SDI formats: 3G / HD / SD-SDI
  • SDI and Composite (BNC) loop-through output ports
  • Anti-Burn-in technology prevents image ghosting

The HX-24G is a 24-inch SDI monitor to broadcast live video footage over a long distance in a surveillance environment. With SDI input and output looping functionality, the monitor allows to receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos in the light of ultra-low latency and signal interruption to multiple SDI monitors. The HX-24G fulfils the need for high-quality image details to real-time video surveillance monitoring such as official authorities, law enforcement, banks, casinos, jewellery and luxury stores, police patrol cars, private properties.

SUPPORT HD-SDI AND 3G-SDI STANDARDS

The HX-24G 24-inch SDI monitor supports both HD-SDI and 3G-SDI standards at Full HD image quality. Users don’t need to sacrifice the video quality and image details when zooming in the cameras during live video and playback mode to focus on their specific area of interest.


UNCOMPRESSED AND ULTRA-LOW LATENCY TRANSMISSION VIA LONG DISTANCE

The HX-24G supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring.

The maximum distances for SD-SDI, HD-SDI and 3G-SDI signal transmission via RG6 cables:
3G-SDI: 100M / RG6 Coaxial Cables
HD-SDI: 150M / RG6 Coaxial Cables
SD-SDI: 300M / RG6 Coaxial Cables

Note: Please ensure your installation requirements first.


EASY CONNECTION WITH SDI LOOP OUT FOR MULTIPLE MONITOR SETUPS

With HX-24G’s SDI loop-out port, CCTV installers can quickly connect the SDI A/V source to extra SDI monitors without the need for a converter. It’s an ideal solution for CCTV HD-SDI camera and broadcast monitoring.

Specifications:

Panel
  • Panel Type
  • VA
  • Panel Size
  • 23.8"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.274 mm
  • Brightness
  • 250 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 16.7M
  • Response Time
  • 5 ms
  • Surface Treatment
  • Seriesant1-Glare Treatment (Haze 40%),3H Hard Coating
Frequency
  • Frequency (H)
  • 24 kHz-83 kHz
  • Frequency (V)
  • 50 Hz-75 Hz
Signal Input
  • SDI
  • BNC x 1
  • DisplayPort
  • x 1
  • HDMI
  • 1.4 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
  • Composite
  • BNC x 1
Signal Output
  • SDI
  • BNC x 1
  • Composite
  • BNC x 1
External Control
  • RS232 In
  • 2.5 mm Phone Jack
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Stereo Audio Jack (RCA)
  • Internal Speakers
  • 2W x 2
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 12V
  • 2.75A
  • On Mode
  • 18 W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.0 mm (0.12")
  • Reflection Rate
  • < 1%
  • Transmission Rate
  • > 97%
  • Hardness
  • > 9H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-90% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-95% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm & 75 x 75 mm)
Stand
  • Tilt
  • 3° to 21°
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 562.4 x 392.8 x 196.0 mm (22.1" x 15.4" x 7.7")
  • Product w/o Base (W x H x D)
  • 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2")
  • Packaging (W x H x D)
  • 672.0 x 517.0 x 249.0 mm (26.5" x 20.4" x 9.8")
Weight
  • Product with Base
  • 8.1kg (17.9lb)
  • Product w/o Base
  • 7.3 kg (16.1lb)
  • Packaging
  • 11.2kg (24.7lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • WEEE
  • RoHS
  • REACH
  • EAC
  • BSMI
  • FCC
Accessories
  • Supplied
  • Audio Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide
  • VGA Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • DMC-02D
  • DMS-01D
  • ES-02
