Hikvision DS-DT60P-02HDI20NO/U 20 Ports 3-in-1 LED Controller

• Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
• Adopts the 1 U rackmount chassis and industrial grade chassis system.
• Provides buttons on the front panel to change brightness and other parameters.
• Provides indicators on the front panel to indicate the power status, signal access status, and running status.
• Supports 2 channels of video signal input. The DVI resolution is 1920 × 1200@60 Hz. The HDMI 2.0 resolution is 4096 × 2160@60 Hz.
• Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
• Supports 20 channels of loading output with the maximum loading capacity of 13 MP. The maximum width is 32760 pixels and maximum height is 8192 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
• Supports the RGB and YUV 444 image loading output without image quality loss.
• Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
• Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.
• Supports opening the signal source windows on the display and roaming window.
• Supports the video wall configuration and window visualization.
• Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.
• Supports cascading management and unified control of multiple LED controllers through the network.
• Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
• Supports custom EDID settings.
• Supports dual backup of the power supplies and dual backup of LED controller network ports.
• Supports custom cable alignment without rectangular frame limit.
• Supports the operation through the client or the LED controller web page.
• Supports configuring the background.
• Supports configuring the startup logo.
• Supports configuring the screen dehumidification.
• Supports using the remote control to control the screen to display the remote UI menu.
• Supporting adjusting the brightness, contrast, hue, and other parameters of the output image.
• Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
• Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
• Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
• Supports eye protection mode to protect the vision of the viewer.
• Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
• Supports viewing the loading relationship between the device and LED screen.
• Supports viewing abnormal screen positioning during running.
• Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
• Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
• Supports connecting to the central control device and IoT device through RS-485 port.
• Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
• Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
• Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
• Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.
• Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.
• Supports HDMI 2.0 and DVI loop output. The maximum HDMI loop output is 4096 × 2160@60 Hz and the maximum DVI loop output is 1920 × 1200@60 Hz.

Specification

Processing Performance:

• Brightness Control: 1 to 100 tunable (level-by-level white balance)
• Frame Frequency: 25 Hz to 60 Hz
• Grey Level: 256
• Display Color: 16 MP
• Processing Depth: 8 bit
• Image Scaling: Supported

Product Model:

• Model: DS-DT60P-02HDI20NO/U

Chassis:

• Chassis Height: 1 U
• Chassis Width: 440 mm (17.32 inches)

Product Type:

• Type: LED controller

LED Controller Power:

• Average Consumption: ≤45 W
• Power Interface Quantity: 1
• Power Interface: 100 to 240 VAC, 50/60 Hz

Video Wall:

• Open Windows: 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
• Layers per Device: 7
• Scenes: 10
• Background Images: 1
• Background Resolution: Min. 640 × 480, Max. 1920 × 1200
• Background Format: JPG/JPEG
• Subtitles: 1 (supports Xiaomi font and custom font)
• Subtitle Width: 32760

General:

• Working Temperature: -10°C to 50°C
• Storage Humidity: 10% to 90%
• Working Humidity: 10% to 90%
• Storage Temperature: -10°C to 50°C
• Packaging Size (W × H × D): 589 mm × 103 mm × 410 mm (23.19" × 4.06" × 16.14")
• Net Weight: 3.35 kg (7.39 lb.)
• Gross Weight: 4.47 kg (9.85 lb.)
• Dimensions (W × H × D): 440 mm × 44.5 mm × 320.8 mm (17.32" × 1.75" × 12.63")

Packing List:

• 1 × AC power cord
• 1 × mounting bracket
• 2 × RS-485 green Phoenix contact for central control device
• 1 × regulatory compliance and safety information manual
• 3 × bar antenna
• 1 × RF remote control

Audio:

• Audio Input Interfaces: 2 (1 HDMI 2.0 + 1 embedded Android)
• Audio Output Interfaces: 1 (3.5 mm audio output)

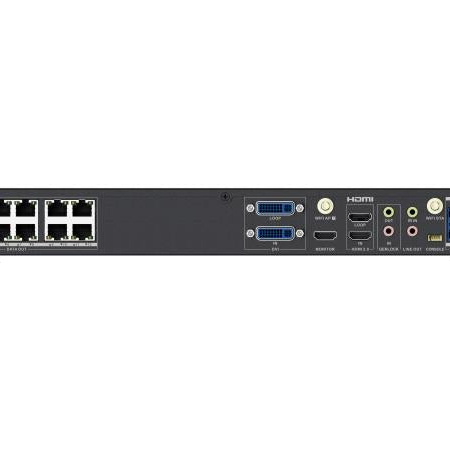

Video Input:

• Video Input Interfaces: 3 (1 HDMI 2.0 + 1 DVI + 1 embedded Android)

Max. Video Input Resolution:

• HDMI 2.0: 4K
• DVI: 1080p

Video Input Resolution (DVI Port):

• Max. Resolution: 1920 × 1200 @ 60 Hz
• Min. Resolution: 320 × 180 @ 60 Hz
• Supports custom resolution (Total ≤ 2.6 MP @ 60 Hz)
• Max. Width: 320 to 3840 (alignment: 2)
• Max. Height: 180 to 3840 (alignment: 1)
• Supports HDCP 1.4
• No interlacing signal input

Video Input Resolution (HDMI 2.0 Port):

• Max. Resolution: 4096 × 2160 @ 60 Hz
• Min. Resolution: 320 × 180 @ 60 Hz
• Supports custom resolution (Total ≤ 8.8 MP @ 60 Hz)
• Max. Width: 320 to 8192 (alignment: 2)
• Max. Height: 180 to 8192 (alignment: 1)
• Supports HDCP 2.2
• No interlacing signal input

Video Input Processing Features:

• Processing Depth: 8 bit
• Sampling Format: RGB 444, YUV 444, YUV 422, YUV 420

Video Output:

• Max. Video Output Resolution: 13 Million
• Video Output Resolution: RJ-45

Loading Capacity for Video Output to LED:

• Single Port Loading: 650,000
• Max. Width: 320 to 32760 (alignment: 2)
• Max. Height: 64 to 8192 (alignment: 1)
• LED Loading Interfaces: 20
• Video Loop Output Interfaces: 2
• 1 × HDMI 2.0
• 1 × DVI

Video Loop Output Resolution (DVI Port):

• Max. Resolution: 1920 × 1200 @ 60 Hz
• Min. Resolution: 320 × 180 @ 60 Hz
• Supports custom resolution (Total ≤ 2.6 MP @ 60 Hz)
• Max. Width: 320 to 3840 (alignment: 2)
• Max. Height: 180 to 3840 (alignment: 1)
• Supports HDCP 1.4
• No interlacing signal input

Video Loop Output Resolution (HDMI 2.0 Port):

• Max. Resolution: 4096 × 2160 @ 60 Hz
• Min. Resolution: 320 × 180 @ 60 Hz
• Supports custom resolution (Total ≤ 8.8 MP @ 60 Hz)
• Max. Width: 320 to 8192 (alignment: 2)
• Max. Height: 180 to 8192 (alignment: 1)
• Supports HDCP 2.2
• No interlacing signal input

Video Live View Output:

• Video Live View Output Interfaces: 1 (HDMI 1.4)
• Video Live View Output Resolution: 720p @ 60 Hz

System:

• System: Android 12
• Memory Capacity: 4 GB
• Storage Capacity: 32 GB
• CPU: 4-core 64-bit ARM Cortex-A55 2.0 GHz

Wireless:

• WIFI: STA 2.4 GHz, AP 2.4 & 5 GHz
• Bluetooth: Bluetooth 4.0
• Antenna: 3 × bar antenna
• Remote Control: Supports IR remote control and RF remote control

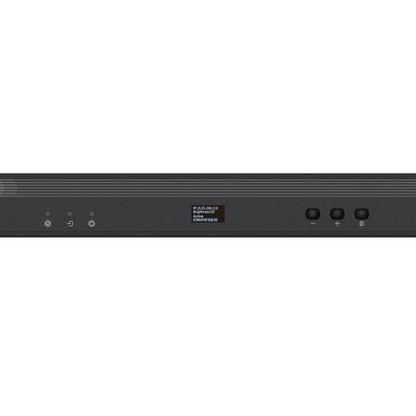

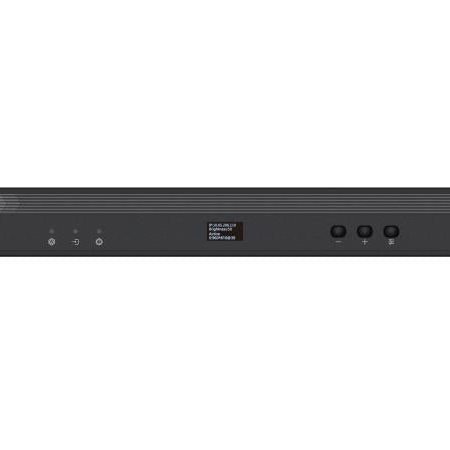

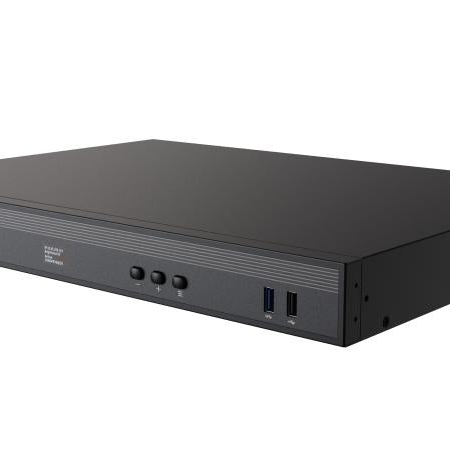

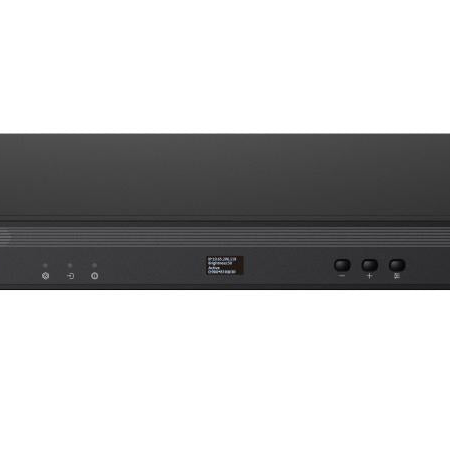

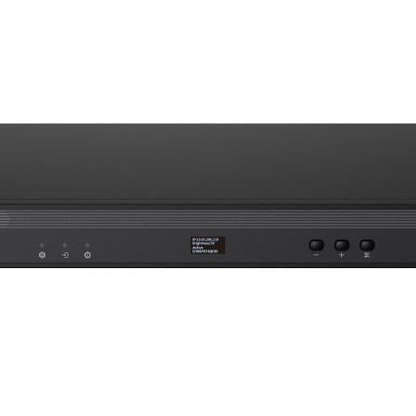

Front Panel:

• Screen: 128 × 64 OLED screen
• USB Ports: 1 × USB 2.0 + 1 × USB 3.0

Buttons:

• +: Increase brightness
• -: Decrease brightness
• Source: Change signal source

Indicators:

• Active: Device is running
• Source: Signal source accessed
• Error: Device operation exception

Power Switch:

• On: Device started and running
• Off: Device not powered on or not started

Control Interface:

• Control Network Port: 2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
• Connects to the external network and supports multi-device network cascade management
• IR Input: 1 × 3.5 mm connector (supports IR remote control)

Serial Interface:

• 1 × Debugging serial port (4-pin connector)
• 1 × RS-485 central control serial port (green Phoenix contact)
• 1 × RS-485 serial port for light perception (green Phoenix contact)
• Baud Rate: 115200, Data Bit: 8
• Power Switch: Button switch
