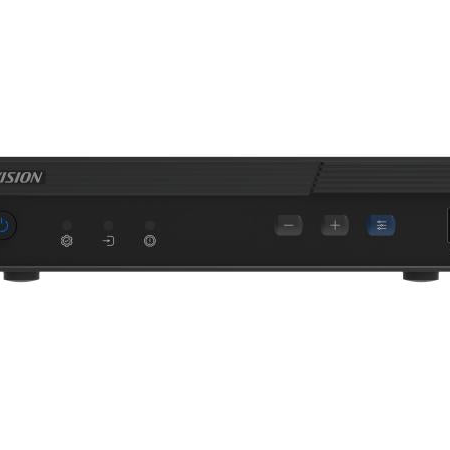

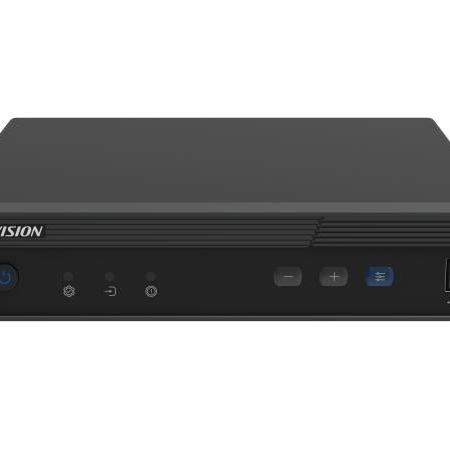

Hikvision DS-DT60C-01HI06NO 6 Ports LED Controller

• Adopts the rackmount chassis of 1 U height and half width and industrial grade chassis system.
• Provides buttons on the front panel for brightness adjustment and signal source switching.
• Provides indicators on the front panel to indicate the power status, signal access status, and running status.
• Supports 1 channel of HDMI 1.4 video signal input. The resolution is 1920 × 1200@60 Hz.
• Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
• Supports the RGB 444 image loading output without image quality loss.
• Supports 6 channels of loading output with the maximum loading capacity of 3.9 MP. The maximum width is 5120 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
• Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
• Supports full-screen zoom and custom zoom for video signal input.
• Supports cascading management and unified control of multiple LED controllers through the network.
• Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
• Supports custom EDID settings.
• Supports hot backup and backup between devices and network ports.
• Supports custom cable alignment without rectangular frame limit.
• Supports the operation through the client or the LED controller web page.
• Supports displaying the last frame when the signal is lost.
• Supports configuring and changing the background.
• Supports configuring the screen saver and startup logo.
• Supports configuring the screen dehumidification.
• Supports using the remote control to control the screen to display the remote UI menu.
• Supports using the buttons to adjust brightness, switch the signal source, and configure other functions
• Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
• Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
• Supports the HDR output to greatly enhance the image quality of the display, make the picture color more real and vivid, and make the details clearer.
• Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
• Supports eye protection mode to protect the vision of the viewer.
• Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
• Supports viewing the loading relationship between the device and LED screen.
• Supports viewing abnormal screen positioning during running.
• Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
• Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
• Supports connecting to the central control device and IoT device through RS-485 port.
• Supports docking device command and managing device by using the control network port and the protocols such as SDK and OTAP.
• Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.

Specification

Processing Performance:

• Brightness Control: 1 to 100 tunable (level-by-level white balance)
• Frame Frequency: 25 Hz to 60 Hz
• Grey Level: 256
• Display Color: 16 MP
• Processing Depth: 8 bit
• Image Scaling: Supported

Product Model:

• Model: DS-DT60C-01HI06NO

Chassis:

• Chassis Height: 1 U
• Chassis Width: Half-width

Product Type:

• Type: LED controller (supports controlling only receiving cards using hub ports)

LED Controller Power:

• Average Consumption: ≤ 13 W
• Power Interface Quantity: 1
• Power Interface: 100 to 240 VAC, 50/60 Hz

Video Wall:

• Background Images: 2
• Background Resolution: Min. 640 × 480, Max. 1920 × 1200
• Background Format: JPG/JPEG

General:

• Working Temperature: -10°C to 50°C
• Storage Humidity: 10% to 90%
• Working Humidity: 10% to 90%
• Storage Temperature: -10°C to 50°C
• Packaging Size (W × H × D): 353 mm × 89 mm × 237 mm (13.90" × 3.50" × 9.33")
• Net Weight: 1.01 kg (2.23 lb.)
• Gross Weight: 1.55 kg (3.42 lb.)
• Dimensions (W × H × D): 210 mm × 42 mm × 177.4 mm (8.27" × 1.65" × 6.98")

Packing List:

• 1 × AC power cord
• 1 × connecting bracket
• 1 × mounting bracket
• 1 × RS-485 green Phoenix contact for central control device
• 1 × regulatory compliance and safety information manual
• 1 × RF remote control

Audio:

• Audio Input Interfaces: 1 (embedded HDMI input)
• Audio Output Interfaces: 1 (3.5 mm audio output)

Video Input:

• Video Input Interfaces: 1 (HDMI 1.4)
• Max. Video Input Resolution: 1080P

Video Input Resolution:

• Max. resolution: 1920 × 1200 @ 60 Hz
• Min. resolution: 320 × 180 @ 60 Hz
• Supports custom resolution (max. total resolution: 2.6 MP @ 60 Hz)
• Max. width: 144 to 4096 (alignment: 2)
• Max. height: 144 to 4096 (alignment: 1)
• Supports HDCP 1.4
• Interlacing signal input: Not supported

Video Input Processing Features:

• Processing Depth: 8 bit
• Sampling Format: RGB 444, YUV 444, YUV 422

Video Output:

• Max. Video Output Resolution: 3.9 Million
• Loading Capacity for Video Output to LED:
• Single mesh port load: 650,000
• Max Width: 144 to 5120 (alignment: 2)
• Max Height: 64 to 5120 (alignment: 1)
• LED Loading Interfaces: 2 (RJ-45)

Wireless:

• Remote Control: Supports IR remote control

Front Panel:

• USB Port: 1 × USB 2.0
• Buttons:
• +: Increase brightness
• -: Decrease brightness
• Source: Change signal source

Indicator:

• Active: Device is running
• Source: Signal source accessed
• Error: Device operation exception

Power Switch:

• On: Device started and running
• Off: Device not powered on or not started

Control Interface:

• Control Network Port: 2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
• IR Input: 1 × 3.5 mm connector (supports IR remote control)

Serial Interface:

• 1 × Debugging serial port (4-pin connector)
• 1 × RS-485 central control serial port (green Phoenix contact)
• Baud rate: 115200, Data bit: 8
