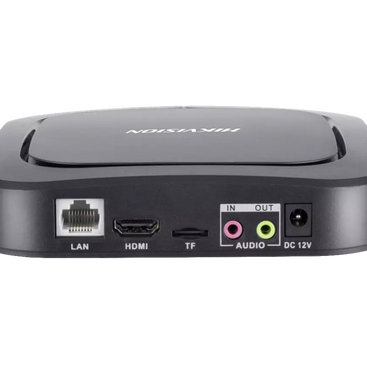

Hikvision DS-D60E-B Digital Signage Box
Hikvision DS-D60E-B Digital Signage Box
Out of stock
SKU:DS-D60E-B
- Variable Materials Supports static and dynamic materials, including the application, pictures, audio, video, PDF, streaming media, webpage, live video, third-party data, etc.
- Flexible Program Schedule Supports free schedule and district display of multiple materials. Supports variable display modes: display by day, display by week, custom display, etc.
- Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, timed brightness/volume, and screenshot previewing.
- Organization Feature 5-level organization is available for managing materials, programs, terminals, and users.
- Multilevel User Permission Supports creating custom users, and allocating permission for users according to user level.
- Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver to secure safe for broadcast contents. Encryption of data storage and transmission to avoid data tampering.
- Arbitrary Direction Remote Control The remote control, adopting wireless communication in 433 MHz, can control the information distribution box in arbitrary direction.
Specification
Built-in System
- Processor Intel? Core i5 9400H
- CPU Clock Speed2.5GHz
- Platform ArchitectureIntel? Coffeelake
- PCHIntel? Z370
- GraphicsIntel? UHD Graphics 630
- Memory8G
- Storage256G
- NICIntegrated 10/100/1000M Adaption
- Cooling SystemSingle Brass & Single Fan
Interface
- Network InterfaceRJ45×1
- Data Transmission InterfaceBluetooth 4.2
- Antenna2
- Video OutputHDMIx1, DPx1
Power
- Input Voltage12V-19V DC
- Max. Consumption60W
- Standby Consumption0.5W
Working Environment
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
General
- ColorBlack
- Product Dimensions (W × H × D)180×195×30mm
- Net WeightAbout 1.24kg
