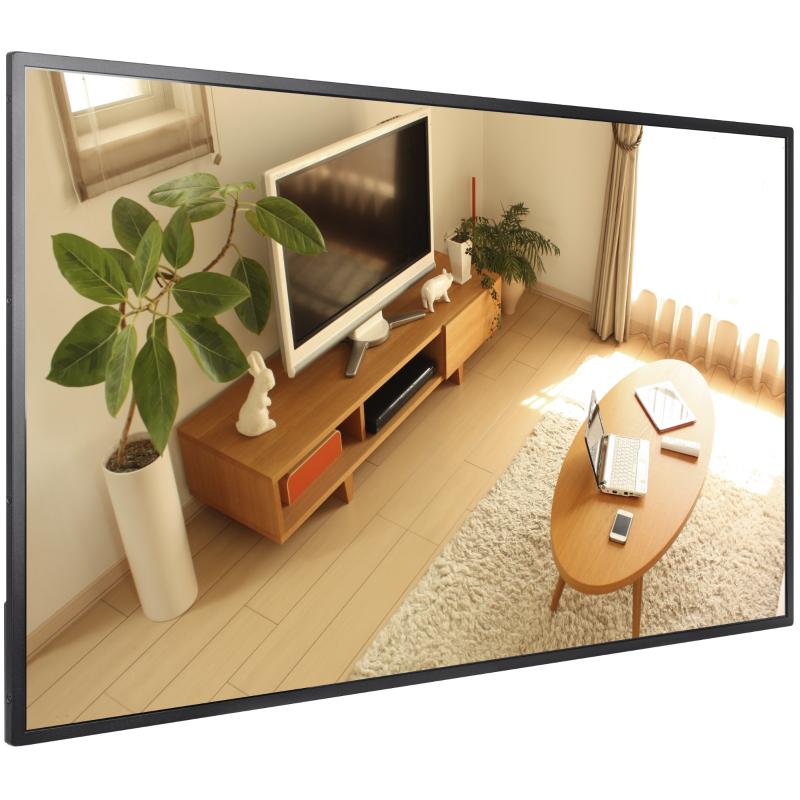

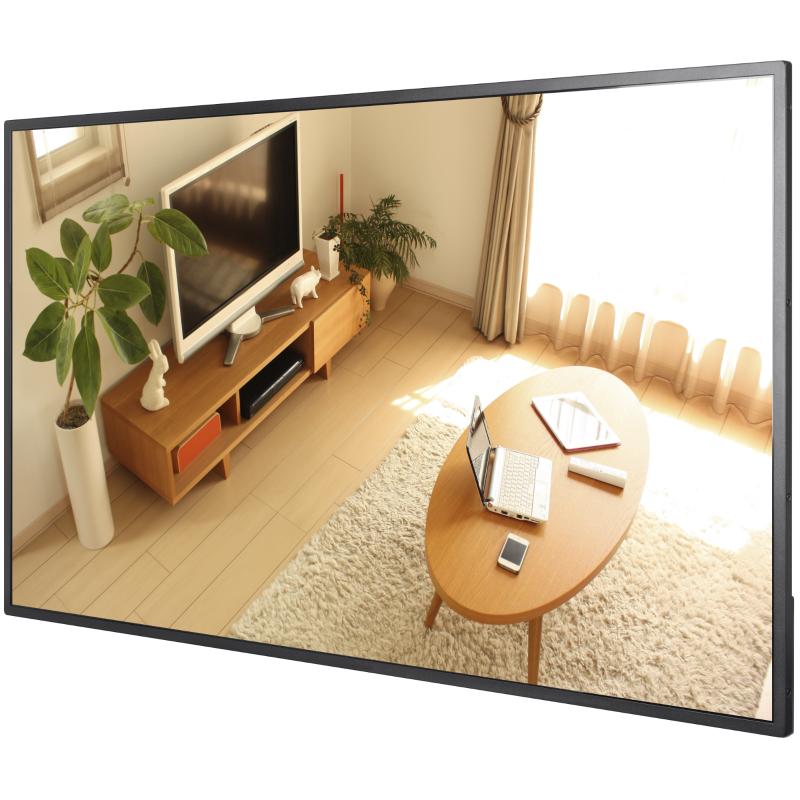

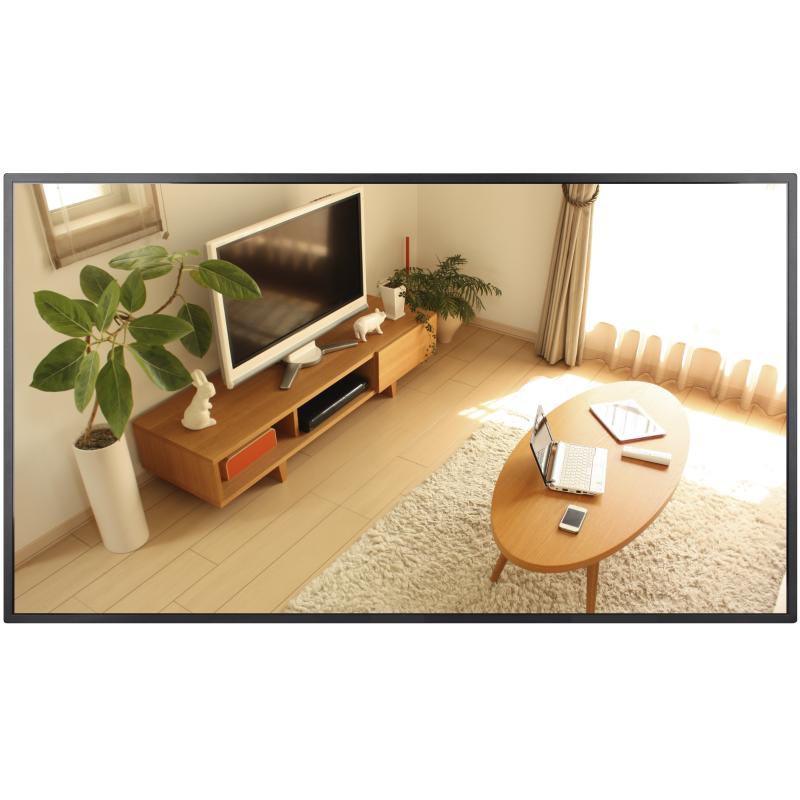

Hikvision DS-D6043UN-B 43" 4K Narrow Bezel Digital Signage Display

Hikvision Digital Signage Displays combine sleek design with powerful functionality, featuring a slim frame, plastic shell appearance, and an all-in-one design for modern aesthetics. These displays deliver stunning visuals with industrial A+ panels, auto-coloring, and an image-enhancing engine, ensuring exquisite image quality. They support a variety of materials, including static and dynamic content like pictures, audio, video, scrolling subtitles, PDFs, webpages, live video, and more. With flexible program scheduling, users can easily customize playback by day, week, loop, or create unique schedules with multiple materials and playback modes. Centralized management allows remote control of one or more screens, enabling functions like timed startup/shutdown, brightness/volume adjustments, and program updates via USB or remote release. Advanced organizational permissions support a 5-level structure for managing materials, programs, terminals, and users, with customizable user roles and permissions. Multiple security safeguards, including encryption for data storage and transmission, a three-level approval process for materials and schedules, and secure password management, ensure reliable and mistake-free operation.Specification

• Display
• Screen Size43 inch
• Resolution3840 × 2160
• Active Display Area941.184 (H) mm × 529.416 (V) mm
• Pixel Pitch0.2451 (H) mm × 0.2451 (V) mm
• BacklightD-LED
• Viewing Angle178°(H)/178°(V)
• Brightness500 cd/m²
• Contrast Ratio4000:1
• Color Depth10 bit (8 bit + FRC)
• Response Time8 ms
• Color Gamut72% NTSC
• Reliability7 × 24 h
• Refresh Rate60 Hz

• Built-in System
• Operation SystemAndroid 8.1
• ProcessorCortex-A17, 4-core, main frequency 1.6 GHz
• Memory2 GB
• Built-in Storage16 GB EMMC

• Interface
• Video & Audio InputAUDIO IN × 1，HDMI × 2 , VGA× 1
• Video & Audio OutputAUDIO OUT × 1, speaker (8 Ω 5 W) × 2
• Network InterfaceLAN × 1，Wi-Fi × 1
• Data Transmission InterfaceUSB 2.0 × 2, TF Card × 1, BT 4.0 × 1

• Power
• Standby Consumption≤ 0.5 W
• Input Voltage100 to 240 VAC, 50/60 Hz
• Power Consumption≤ 110 W

• Working Environment
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉）
• Working Humidity10% to 80% RH (Condensation)
• Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉）
• Storage Humidity5% to 90% RH (Condensation)

• General
• Material TypeDAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
• Mounting TypeWall mounting (horizontally or vertically)
• Product Dimensions (W × H × D)

  967.18 mm × 555.42 mm × 72.44 mm (without wall-mounted backboard) (38.08'' × 21.87'' × 2.85'')

  967.18 mm × 555.42 mm × 92.24 mm (with wall-mounted backboard) (38.08'' × 21.87'' × 3.63'')

• Package Dimensions (W × H × D)1172 mm × 703 mm × 192 mm (46.14'' × 27.68'' × 7.56'')
• Net Weight11.39 kg (25.11 lb.)
• Gross Weight14.75 kg (35.52 lb.)
• Packing ListDigital signage × 1, power cord × 1, remote control × 1, wall-mounted backboard × 1, package of mounting bolts × 1, wall-mounted screw × 4, desiccative × 1, quick start guide × 1
