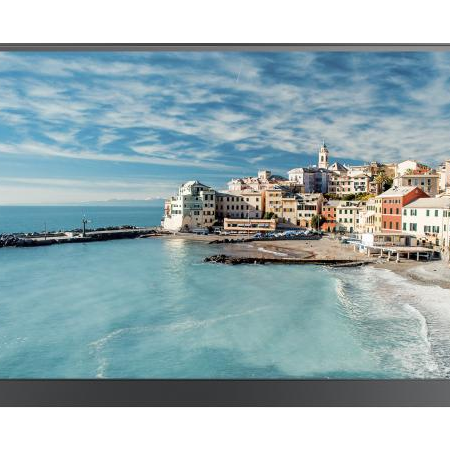

Hikvision DS-D6022FN-B 22" Digital Signage Display

Hikvision Digital Signage Displays combine sleek design with powerful functionality, featuring a slim frame, plastic shell appearance, and an all-in-one design for modern aesthetics. These displays deliver stunning visuals with industrial A+ panels, auto-coloring, and an image-enhancing engine, ensuring exquisite image quality. They support a variety of materials, including static and dynamic content like pictures, audio, video, scrolling subtitles, PDFs, webpages, live video, and more. With flexible program scheduling, users can easily customize playback by day, week, loop, or create unique schedules with multiple materials and playback modes. Centralized management allows remote control of one or more screens, enabling functions like timed startup/shutdown, brightness/volume adjustments, and program updates via USB or remote release. Advanced organizational permissions support a 5-level structure for managing materials, programs, terminals, and users, with customizable user roles and permissions. Multiple security safeguards, including encryption for data storage and transmission, a three-level approval process for materials and schedules, and secure password management, ensure reliable and mistake-free operation.

Specification

• Display
• Viewing Angle178°(H)/178°(V)
• Contrast Ratio3000:1
• Screen Size21.5 inch
• Active Display Area478.656 mm（H） × 260.28 mm （V）
• BacklightELED
• Pixel Pitch0.24795 (H) mm × 0.24795 (V) mm
• Resolution1920 × 1080@60 Hz
• Brightness250 cd/m²
• Color Depth8 bit, 16.7 M
• Response Time6.5 ms
• Color Gamut72% NTSC
• Reliability7 × 24 h
• Refresh Rate60 Hz

• Built-in System
• Operation SystemAndroid 8.1.0
• CPUCortex-A17, 4-core, main frequency 1.6 GHZ
• Memory2 GB
• Built-in Storage16 GB

• Internal Function
• Loudspeaker2 × built-in speaker, 8 Ω 5 W

• Interface
• Video & Audio InputAUDIO IN × 1
• Video & Audio OutputAUDIO OUT × 1
• Network InterfaceLAN × 1, Wi-Fi
• Data Transmission InterfaceUSB 2.0 × 2, TF Card × 1, BT4.0 × 2, Wi-Fi

• Power
• Standby Consumption≤ 10 W
• Input Voltage100 to 240 VAC, 50/60 ± 3 Hz
• Power Consumption≤ 40 W

• Working Environment
• Working Temperature0 ℃ to 40 ℃ (32 °F to 104 °F)
• Working Humidity20% to 90% RH
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Storage Humidity5% to 90% RH
• General
• Material Type

  DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1,

  MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX,

  OTA, IMY, JPG, JPEG, BMP, GIF, PNG

• Mounting TypeWall-Mounted
• Product Dimensions (W × H × D)

  516.75 (W) × 320.03 (H) × 46.55 (D) mm (without wall-mounted backboard) (20.34'' × 12.60'' × 1.83'')

  516.75 (W) × 320.03 (H) × 53.55 (D) mm (with wall-mounted backboard) (20.34'' × 12.60'' × 2.11'')

• Package Dimensions (W × H × D)593 (W) × 434 (H) × 157 (D) mm (23.35'' × 17.09'' × 6.18'')
• Net weight3.03 Kg (6.68 lb)
• Gross weight4.63 Kg (10.21 lb)
• Packing ListWall-mounted backboard × 1, screws M3 × 6, power cord × 1, remote control × 1, battery × 2, screw package × 1
