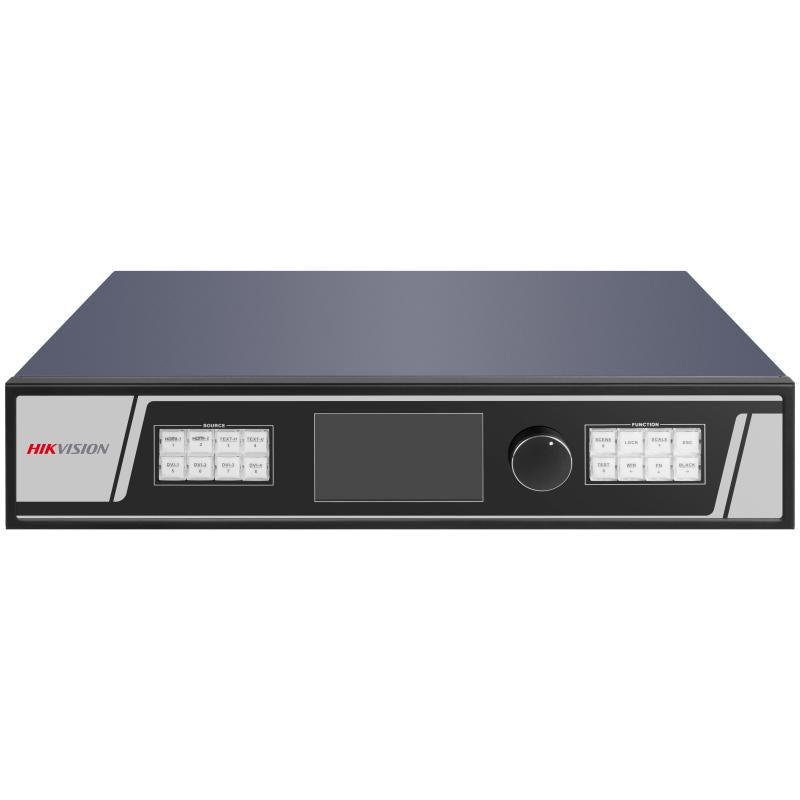

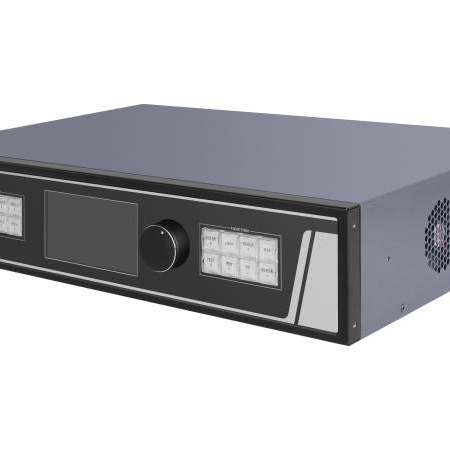

Hikvision DS-D42V24-H LED Control Card

• Multiple Signal Interfaces: 6 channels of video signal input (2 × HDMI 2.0 and 4 × DVI), 6 channels of video signal output (2 × HDMI 2.0 and 4 × DVI); 1 channel of HDMI 1.4 output for pre-monitoring; 1 channel of 3D signal synchronization output for 3D display.
• Ultra-Large Load Capacity: 24 channels of network interface with the resolution of up to 13.27 MP.
• HDR Output: Provides more lively and colorful image with high quality and clear details.
• Multi-Windows Display: Free layout of 9 windows with 6 signal input windows and 3 picture/text windows; free switching, cutting, stitching, and zooming in/out.
• Output Signal Pre-Monitoring: Sends the output signal to your monitor through the HDMI interface.
• Self-Stitching Display: Larger scale stitching display achievable through self-stitching of multiple controllers (a cascade of up to 4 controllers allowed), ensuring the synchronization within different controllers.
• Scenes Configurable: Up to 10 scenes can be configured and saved as templates for convenience.
• EDID Settings Customizable: HDCP 2.2 protocol for high-bandwidth digital content protection.

Specification

Product Type

• Product TypeLED Display Controller

Interface

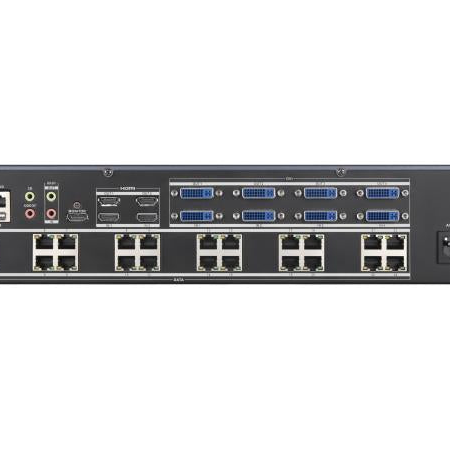

• Video & Audio Input
• 2 × HDMI interface, Max. resolution: 4096 × 2160@60 Hz
• 4 × DVI interface, Max. resolution: 1920 × 1200@60 Hz

Video & Audio Output

• 1 × HDMI interface for pre-monitoring, Max. resolution: 1920 × 1080@60 Hz
• 2 × HDMI interface, Max. resolution: 4096 × 2160@60 Hz
• 4 × DVI interface, Max. resolution: 1920 × 1200@60 Hz
• 24 × network interface

Control Interface

• 1 × RJ45 10/100/1000 MB self-adaptive

Processing Performance

• Max. Load Capacity13.27 MP
• Brightness Control1 to 100 levels adjustable (gradual white balance)
• Frame Frequency60 Hz
• Grey Level16 bit
• Max. Resolution of Bar Display5000 × 256 pixels
• Display Color2^16× 2^16 × 2^16
• Processing Depth8 bit, 10 bit

Power

• Max. Consumption72 W
• Average Consumption24 W
• Input Voltage100 to 240 VAC
• Working Environment
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 80%
• Storage Temperature-10 ℃ to 60 ℃ (14 ℉ to 140 ℉)
• Storage Humidity10% to 80%

General

• Product Dimensions (W × H × D)442 mm × 338.5 mm × 92 mm (17.40'' × 13.33'' × 3.62'')
• Package Dimensions (W × H × D)572 mm × 396 mm × 163 mm (22.52'' × 15.59'' × 6.42'')
• Net Weight5.25 kg (11.57 lb.)
• Gross Weight7.25 kg (15.98 lb.)
• Packing ListQuick start guide × 1, remote control × 1, power cable × 1
