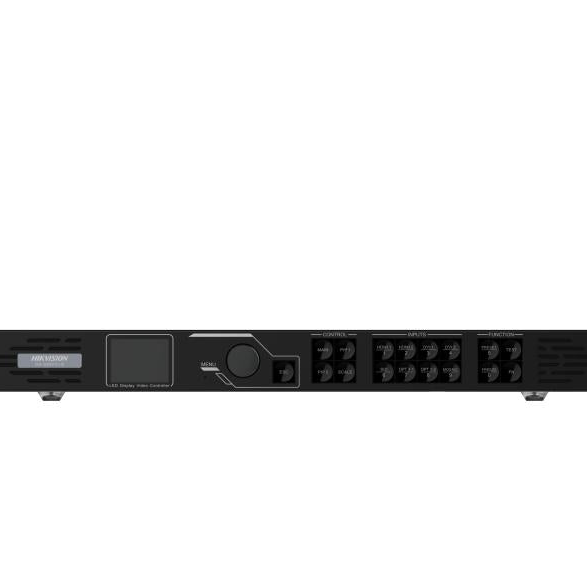

Hikvision DS-D42V10-N LED Controller

Hikvision DS-D42V10-N LED Controller

Out of stock

DS-D42V10-N

Login to see price
Login to see price Login to see price
Sale Sold out
  • Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device
  • Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled
  • An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
  • The mosaic source is composed of several input connectors of the same type.
  • Work with software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality
  • Up to 4 units cascaded for image mosaic
  • Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma

Specification

      • Processing Performance
      • Brightness Control1-100 Levels
      • Frame Frequency25HZ-60HZ
      • Grey Level256
      • Display Color1 Billion
      • Processing Depth8bit
      • Image ScalingSupport
      • Product Model
      • Product ModelDS-D42V10-N
      • Chassis
      • Chassis Height1.12U
      • Chassis Width351.2mm
      • Product Type
      • Product TypeLED Controller
      • LED Controller Power
      • Average Consumption≤28W
      • Number of power interfaces1
      • Power interface specifications100-240V~，1.6A，50/60Hz
      • General
      • Working Temperature0°C ～ 45°C
      • Storage Humidity10% ～ 95%
      • Working Humidity20% ～ 90%
      • Storage Temperature-20°C ～ 70°C
      • Packaging Size (W × H × D)521.0mm ×517.0mm ×102.0mm
      • Net Weight4kg
      • Gross Weight6.8kg
      • Dimensions (W × H × D)483.6mm×351.2mm×50.1mm
      • Packing ListDS-D42V10-N*1,Power Cable *4,Ethernet Cable *1,HDMI Cable *1,HDMI TO DVI Cable *1,USB Cable*1
      • Audio Input
      • Audio Input Interface(s)1
      • Audio Input Interface TypeHDMI inline
      • Video Input
      • Video Input Interface(s)5
      • Video Input Interface Type2 HDMI1.4+1 3G-SDI+2 DVI
      • Max. Input Resolution4K*1K
      • Video Input Resolution

        HDMI1.4 interface

        Maximum support of 3840 x 1080@60Hz /3840 x 2160@30Hz Video source input.

        Supports HDCP 1.4.

        Interlaced signal input is not supported.

        Supports two HDMI 1.4 splicing inputs.

        Support custom resolution.

        Custom maximum width: 4092 (4092 x) 1136@60Hz ）

        Custom maximum height: 3981 (1060 x 3981@60Hz ）

        HDMI 1.4 1 supports LOOP loop output.



        SDI interface

        Supports ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video source inputs.

        Single channel support 1920 x 1080@60Hz Video source input.

        Support de interlacing processing.

        Input resolution and bit depth settings are not supported.

        Supports 3G-SDI Loop output.



        DVI interface

        Maximum support of 3840 x 1080@60Hz /3840 x 2160@30Hz Video source input.

        Supports HDCP 1.4.

        Interlaced signal input is not supported.

        Supports two HDMI 1.4 splicing inputs.

        Support custom resolution.

        Custom maximum width: 4092 (4092 x) 1136@60Hz ）

        Custom maximum height: 3981 (1060 x 3981@60Hz ）

        DVI supports LOOP loop output.

        Supports two DVI splicing inputs.

        DVI 1 supports LOOP loop output.

      • Video Input Processing Characteristics

        Processing depth 8

        Sampling format

        RGB:444

        YUV:4:4:4

        YUV:422

      • Video Output
      • Max. Output Resolution6.5 Million
      • Loading Capacity for Video Output to LED

        Single port with load 650000

        Width 1~10240

        Height 1~8192

      • LED Loading Interfaces10
      • LED Loading Interface TypeRJ45
      • Number of video ring pass output interfaces2
      • Video looping output interface typeHDMI 1.4+DVI
      • Video looping output resolution3840*1080@60Hz
      • Audio Output
      • Audio Output Interface(s)NA
      • Audio Output Interface TypeNA
      • Front Panel
      • ScreenLCD screen
      • Key

        "\"knob\"\": Select menus, adjust parameters, and confirm operations.

        \"ESC\"\": Exit the menu or cancel the operation.

        \"MAIN/PIP 1/PIP 2\"\": Layer on, off, and layer state display.

        \"SCALE\"\": Full screen auto zoom shortcut key, adaptively fills the window with the lowest priority to full screen.

        \"PRESET\"\": Enter the scene settings menu.

        \"TEST\"\": Enter the test screen settings menu.

        \"FREEZE\"\": Freeze the output screen.

        \"FN\"\": Customizable function shortcut key.

        \"HDMI1/HDMI2/DVI1/DVI2/SDI\"\" Input source status display, supporting one click switching of the main window input source."

      • pilot lamp

        "\"MAIN/PIP 1/PIP 2\"\": Long blue light: The layer is turned on.

        Blue flashing: The layer is currently being edited.

        Long white light: The layer is not turned on.

        \"SCALE\"\":Long blue light: Full screen automatic scaling is enabled.

        Long white light: Full screen auto zoom is not enabled.

        \"HDMI1/HDMI2/DVIDVI2/SDI\"\": Long blue light: There is an input source connected.

        Blue flashing: No input source connected, already used by the layer.

        Long white light: No input source connected or input source abnormal.

      • Control Interface
      • Control network port

        "1 RJ45, 10M/100M/1000M adaptive Ethernet ports

        Connect and control the computer or router."

      • 3D interfaceNA
      • IR inputNA
      • Serial Interface1, 1 debug serial port (RJ45)
      • Light perceptionLIGHT SENSOR：Connect the optical probe to obtain ambient brightness, which can achieve automatic adjustment of screen brightness.
      • USB2 x USB 2.0
      • On-offSwitch
