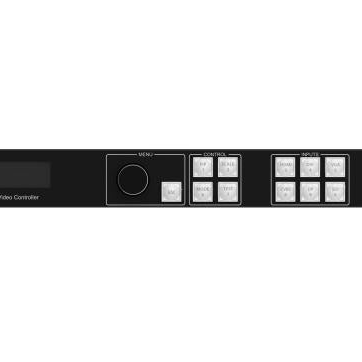

Hikvision DS-D42V04-N LED Controller

Hikvision DS-D42V04-N LED Controller

Out of stock

DS-D42V04-N

Login to see price
Login to see price Login to see price
Sale Sold out
  • 4x Gigabit Ethernet outputs, capable of loading up to 2,300,000 pixels
  • White balance calibration and color gamut mapping based on different features of LEDs used by screens, to ensure the reproduction of true colors
  • New engine adopted, enabling exquisite image display with a good sense of depth, without flickering and scanning lines
  • Adjustable PIP position and size, free control at will
  • Seamless high-speed switching and fade effect supported, to present professional-quality images
  • New-generation pixel level calibration technology adopted, ensuring a fast and efficient calibration process
  • Independent external audio output supported
  • High bit-depth video input: 10-bit and 8-bit

Specification

  • Processing Performance
  • Brightness Control1-100 Levels
  • Frame Frequency25HZ-60HZ
  • Grey Level256
  • Display Color1 Billion
  • Processing Depth8bit
  • Image ScalingSupport
  • Product Model
  • Product ModelDS-D42V04-N
  • Chassis
  • Chassis Height1.12 U
  • Chassis Width301.2mm
  • Product Type
  • Product TypeLED Controller
  • LED Controller Power
  • Average Consumption≤28W
  • Number of power interfaces1
  • Power interface specifications100-240V，1.6A，50/60Hz
  • General
  • Working Temperature0°C~ +45°C
  • Storage Humidity10%~95%
  • Working Humidity20% ～ 90%
  • Storage Temperature'-20°C~ +70°C
  • Packaging Size (W × H × D)550.0mm×175.0mm×400.0mm
  • Net Weight4KG
  • Gross Weight6.8kg
  • Dimensions (W × H × D)483.6mm×301.2mm×50.1mm
  • Packing List1×DS-D42V04-N,1×Power Cable，1×USB Cable，1×HDMItoDVI Cable，1×HDMI Cable,1×Ethernet Cable
  • Audio Input
  • Audio Input Interface(s)1
  • Audio Input Interface TypeHDMI inline
  • Video Input
  • Video Input Interface(s)4
  • Video Input Interface Type2 HDMI1.3+1 3G-SDI+1 DVI
  • Max. Input Resolution2K
  • Video Input Resolution

    HDMI1.3 interface

    Supports 1920 x 1200@60Hz Video source input.

    Supports HDCP1.4. Not supporting interlaced signal input.

    Support custom resolution.

    Custom maximum width: 3840 (3840 x) 648@60Hz ）

    Custom maximum height: 2784 (800 x 2784@60Hz ）

    Support front-end device push input: 600 x 3840@60Hz

    HDMI 1.3-1 supports LOOP loop output.



    SDI interface

    Supports ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video source inputs.

    Single channel support 1920 x 1080@60Hz Video source input.

    Support de interlacing processing.

    Input resolution and bit depth settings are not supported.

    Supports 3G-SDI Loop output.



    DVI interface

    Supports 1920 x 1200@60Hz Video source input.

    Supports HDCP1.4.

    Interlaced signal input is not supported.

    Support custom resolution.

    Custom maximum width: 3840 (3840 x) 648@60Hz ）

    Custom maximum height: 2784 (800 x 2784@60Hz ）

    Support front-end device push input: 600 x 3840@60Hz

    DVI supports LOOP loop output.

  • Video Input Processing Characteristics

    Processing depth 8

    Sampling format:

    RGB:444

    YUV:4:4:4

    YUV:422

  • Video Output
  • Max. Output Resolution2.6 Million
  • Loading Capacity for Video Output to LED

    Single port with load 650000

    Width 1~10240

    Height 1~8192

  • LED Loading Interfaces4
  • LED Loading Interface TypeRJ45
  • Number of video ring pass output interfaces2
  • Video looping output interface typeHDMI 1.3+DVI
  • Video looping output resolution1920×1200@60Hz
  • Audio Output
  • Audio Output Interface(s)NA
  • Audio Output Interface TypeNA
  • Front Panel
  • ScreenLCD screen
  • Key

    "\"knob\"\": Select menus, adjust parameters, and confirm operations.

    \"ESC\"\": Exit the menu or cancel the operation.

    \"MAIN/PIP 1/PIP 2\"\": Layer on, off, and layer state display.

    \"SCALE\"\": Full screen auto zoom shortcut key, adaptively fills the window with the lowest priority to full screen.

    \"PRESET\"\": Enter the scene settings menu.

    \"TEST\"\": Enter the test screen settings menu.

    \"FREEZE\"\": Freeze the output screen.

    \"FN\"\": Customizable function shortcut key.

    \"HDMI1/HDMI2/DVI/SDI\"\" Input source status display, supporting one click switching of the main window input source."

  • pilot lamp

    "\"MAIN/PIP 1/PIP 2\"\": Long blue light: The layer is turned on.

    Blue flashing: The layer is currently being edited.

    Long white light: The layer is not turned on.

    \"SCALE\"\":Long blue light: Full screen automatic scaling is enabled.

    Long white light: Full screen auto zoom is not enabled.

    \"HDMI1/HDMI2/DVI/SDI\"\": Long blue light: There is an input source connected.

    Blue flashing: No input source connected, already used by the layer.

    Long white light: No input source connected or input source abnormal.

  • Control Interface
  • Control network port

    "1 RJ45, 10M/100M/1000M adaptive Ethernet ports

    Connect and control the computer or router."

  • 3D interfaceNA
  • IR inputNA
  • Serial Interface1, 1 debug serial port (RJ45)
  • Light perceptionLIGHT SENSOR：Connect the optical probe to obtain ambient brightness, which can achieve automatic adjustment of screen brightness.
  • USB2 x USB 2.0
  • On-offSwitch
