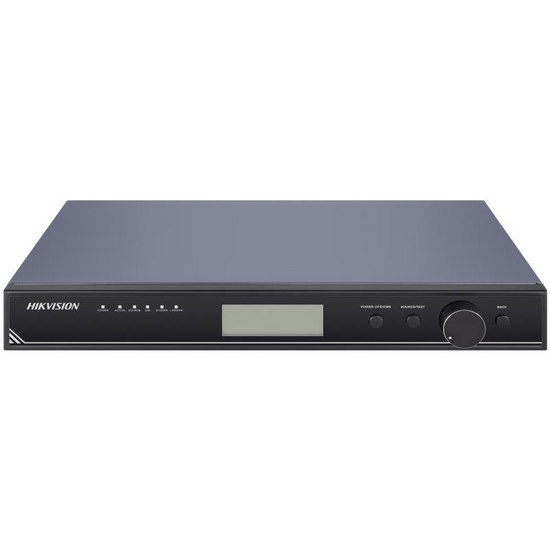

Hikvision DS-D42C20-H LED Control Card

Hikvision DS-D42C20-H LED Control Card

Low stock

DS-D42C20-H

Login to see price
Login to see price Login to see price
Sale Sold out
  • 20-ch gigabit Ethernet output ports, up to 4096 × 2160@60 Hz signal source access. 1-ch HDMI 2.0 output, and 1-ch HDMI 1.4 live view output.
  • 2-ch HDMI 2.0 input interfaces: Supports 4096 × 2160@60 Hz, up to 7680 × 1080@60 Hz.
  • Automatic signal source search: Enables automatic signal source search by default.
  • 3D synchronized signal input and output interface: The sending card can process 3D signals, and the single card supports 3840 × 1080p@120 Hz input and output.
  • Audio device access: The sending card, with audio input and output interfaces, supports audio device access.
  • Light sensor expansion: The sending card has a light sensor expansion interface, and the light sensor adjustment function can be enabled without adding a multi-functional card.
  • Dual-mode remote control expansion interfaces: Equipped with infrared and USB RF Wi-Fi expansion interfaces. The dual-mode supports remote control.
  • Large load capability: 10 MP.
  • Cloud upgrade: The system program supports remote upgrade on cloud.
  • Supports remote control, with the screen displaying remote control UI menu.
  • Scene management: You can customize and switch scenes out of various options.
  • Multi-controller auto splicing and cascade display for synchronization.
  • High refresh rate of 3840 Hz, nanosecond response time, and smooth video images.

Specification

Processing Performance

  • Brightness Control1-100 Levels
  • Frame Frequency25HZ-120HZ
  • Grey Level1024
  • Display Color1 Billion
  • Processing Depth10bit
  • Image ScalingSupport

Product Model

  • Product ModelDS-D42C20-H
  • Chassis
  • Chassis Height1.5 U
  • Chassis WidthFull Width

Product Type

  • Product TypeLED Controller
  • LED Controller Power
  • Average Consumption≤38W
  • Number of power interfaces1
  • Power interface specifications100～240 VAC, 50/60 Hz

General

  • Working Temperature0°C ~ 50°C
  • Storage Humidity10% ～ 90%
  • Working Humidity10% ～ 90%
  • Storage Temperature-10°C ~ 50°C
  • Packaging Size (W × H × D)576mm × 428 mm × 121 mm
  • Net Weight2.4KG
  • Gross Weight4.13KG
  • Dimensions (W × H × D)442 mm × 249.5 mm × 53mm
  • Packing ListAC power cord*1, 1U chassis accessory kit*1, Manual*1, Foot pad assembly*1

Audio Input

  • Audio Input Interface(s)3
  • Audio Input Interface Type2 HDMI inline + 1 line-in

Video Input

  • Video Input Interface(s)2
  • Video Input Interface Type2 HDMI2.0 (optional)
  • Max. Input Resolution4K

Video Input Resolution

  • HDMI2.0 interface
  • Maximum supported resolution: 4096*2160@60Hz
  • Minimum supported resolution: 320*180@60Hz
  • Customizable resolution, total resolution not more than 8.85 Million@60
  • Limit width: 320~8192 Alignment: 4 alignment
  • Limit height: 180~8192 Alignment: 1 alignment
  • Support HDCP1.4
  • Does not support interlaced signal input
  • Video Input Processing Characteristics
  • Processing depth 8/10bit

Sampling format:

  • RGB:444
  • YUV:444
  • YUV:422

Video Output

  • Max. Output Resolution13 Million
  • Loading Capacity for Video Output to LED
  • Single mesh port with load 65W
  • Width 480~7680;Alignment: 2 Alignment
  • Height 270~4320;Alignment: 1 alignment
  • LED Loading Interfaces20
  • LED Loading Interface TypeRJ45
  • Number of video ring pass output interfaces1
  • Video looping output interface typeHDMI 2.0
  • Video looping output resolution4096*2160@60Hz

Audio Output

  • Audio Output Interface(s)2
  • Audio Output Interface Type1 HDMI loop out +1 LINE OUT 3.5mm audio out
  • Front Panel
  • ScreenDigital Tube
  • Key
  • "\"+\"\": brightness increase
  • -\": brightness decrease
  • Source\": switch the signal source\""
  • pilot lamp
  • PWR: Power indicator
  • STAT:Status indicator
  • ASYNC: Internal Android source status light
  • SYNC: External source status light

Control Interface

  • Control network port
  • 2 RJ45, 10M/100M/1000M adaptive Ethernet ports
  • Used to connect to external networks, can support multi-device network cascade management
  • 3D interface1 SYNC for 3D signal configuration, 3-Core S-terminal
  • IR input
  • 1 x 3.5mm cradle
  • Support infrared remote control access
  • Serial Interface1, 1 debug serial port (RJ45)
  • Light perception1 light-sensitive aviation head
  • USB2 x USB 2.0
  • On-offSwitch
