Hikvision
Hikvision DS-D42C04-N LED Control Card
Hikvision DS-D42C04-N LED Control Card
Out of stock
SKU:DS-D42C04-N
Couldn't load pickup availability
- 4 Gigabit Ethernet output ports, with up to 1920 × 1200@60 Hz signal input
- HDMI input interface: 1920 × 1200@60 Hz
- DVI input interface: Up to 1920 × 1200@60 Hz
- Competent with load capacity: 2.3 MP
- 3480 Hz high refresh rate and nanosecond response time ensure smooth video pictures.
Specification

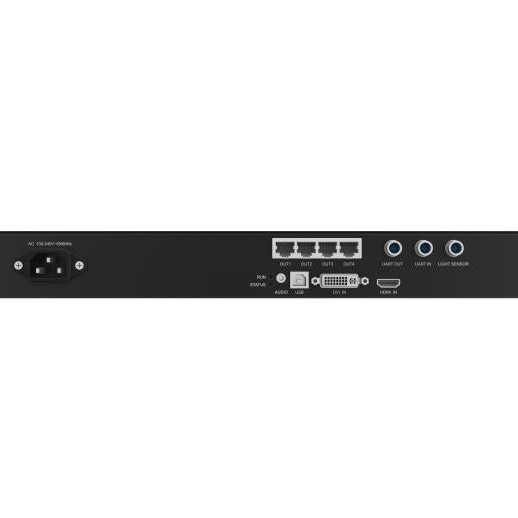

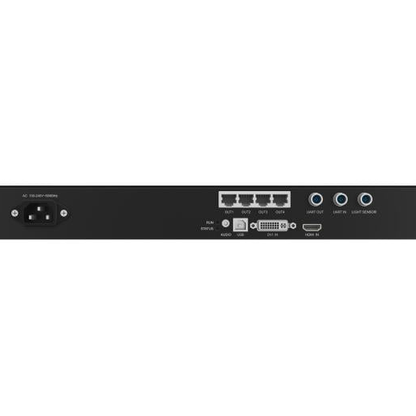

Interface:
- Video & Audio Input:
- 1 × DVI
- 1 × HDMI
- 1 × Audio input
- Video & Audio Output: 4 × RJ45 (typically for network connections)
- Network Interface: 4 network ports
- Control Interface: 1 × USB port
Processing Performance:
- Max Load Capacity: 2048 x 1152 @ 60Hz or 1920 x 1200 @ 60Hz
- Frame Frequency: 50/60 Hz
- Refresh Rate: 3840 Hz
- Processing Depth: 8-bit
- Grey Level: 16-bit
- Display Color: 281 trillion colors
- Brightness Control: Automatic or manual adjustment
Power:
- Max Consumption: 16 W
- Average Consumption: 16 W
- Input Voltage: AC100~240V @ 50/60Hz
Working Environment:
- Working Temperature: -10°C to 45°C (14°F to 113°F)
- Working Humidity: 10% to 90%
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Humidity: 10% to 90%
General:
- Product Dimensions: 428 mm × 250 mm × 44.4 mm (16.85" × 9.84" × 1.75")
- Package Dimensions: 550 mm × 440 mm × 175 mm (21.65" × 17.32" × 6.89")
- Net Weight: 2.9 kg (6.39 lb)
- Gross Weight: 5.5 kg (10.10 lb)
Packing List:
- 1 × Power cord
- 1 × USB cable
- 1 × DVI cable
