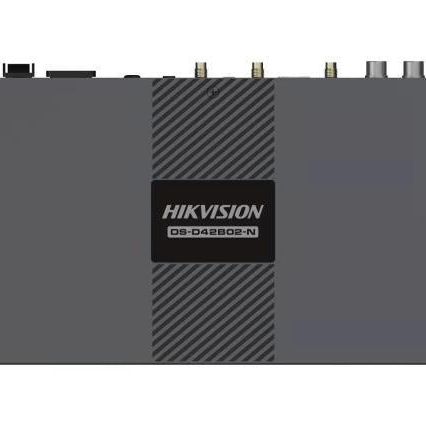

Hikvision DS-D42B02-N LED controller

Hikvision DS-D42B02-N LED controller

Out of stock

DS-D42B02-N

Login to see price
Login to see price Login to see price
Sale Sold out
  • Loading capacity up to 650,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
  • 2x Gigabit Ethernet ports
  • Allows for play content imported from a USB drive and firmware upgrade over USB

Specification

Processing Performance

  • Brightness Control1-100 Levels
  • Frame Frequency30HZ-60HZ
  • Grey Level256
  • Display Color1 Billion
  • Processing Depth8bit
  • Image ScalingSupport

Product Model

  • Product ModelDS-D42B02-N
  • Chassis
  • Chassis Height0.9U
  • Chassis Width3.12U

Product Type

  • Product TypeLED Controller
  • LED Controller Power
  • Average Consumption≤18W
  • Number of power interfaces1
  • Power interface specifications100-240V~，50/60Hz，0.6A

General

  • Working Temperature-20℃～+60℃
  • Storage Humidity0%RH～80%RH
  • Working Humidity0%RH～80%RH
  • Storage Temperature-40℃～+80℃
  • Packaging Size (W × H × D)385.0mm×280.0mm×75.0mm
  • Net Weight1234g
  • Gross Weight1653.6g
  • Dimensions (W × H × D)274.3mm×139.0mm×40.0mm

Packing List

  • "1x Wi-Fi omnidirectional antenna
  • 1x AC power cord
  • 1x Quick Start Guide
  • 1x Packing list"
  • Audio Input
  • Audio Input Interface(s)1
  • Audio Input Interface TypeHDMI INLINE

Video Input

  • Video Input Interface(s)1
  • Video Input Interface TypeHDMI1.4
  • Max. Input Resolution1080p@60hz
  • Video Input Resolution1080p@60hz
  • Video Input Processing Characteristics
  • Processing depth 8 BIT

Sampling format:

  • RGB:444
  • YUV:444
  • YUV:422"

Video Output

  • Max. Output Resolution1.3 Million
  • Loading Capacity for Video Output to LED
  • Single port with load 650000
  • Width 64~4096
  • Height 64~4096
  • LED Loading Interfaces2
  • LED Loading Interface TypeRJ45
  • Number of video ring pass output interfaces1
  • Video looping output interface typeHDMI1.4
  • Video looping output resolution1080p@60hz

Audio Output

  • Audio Output Interface(s)1
  • Audio Output Interface Type1 LINE OUT 3.5mm audio out

Front Panel

  • ScreenNA
  • KeySWITCH
  • pilot lamp
  • PWR:RED,
  • Staying on-The power supply is working properly
  • SYS:GREEN,
  • Flashing once every 2s-The operating system is functioning normally
  • Staying on/off-The operating system is malfunctioning
  • CLOUD:GREEN
  • Staying on-The DS-D42B02-N is connected to the Internet and the connection is available
  • Flashing once every 2s-The DS-D42B02-N is connected to VNNOX and the connection is available
  • Flashing once every second-The DS-D42B02-N is upgrading the operating system
  • Flashing once every 0.5s-The DS-D42B02-N is copying the upgrade package.
  • RUN:GREEN
  • Flashing once every second-The FPGA has no video source
  • Flashing once every 0.5s-The FPGA is functioning normally
  • Staying on/off-The FPGA loading is abnormal"

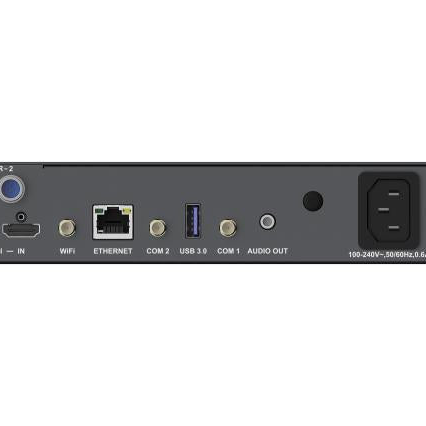

Control Interface

  • Control network port
  • 2 RJ45, 10M/100M/1000M adaptive Ethernet ports
  • Used to connect to external networks, can support multi-device network cascade management
  • 3D interfaceNA
  • IR inputNA
  • Serial Interface1XGigabit Ethernet port
  • Light perception2XSENSOR
  • USB1XUSB 3.0
  • On-offSwitch
