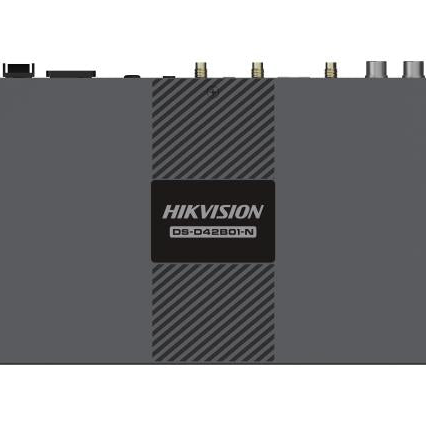

Hikvision DS-D42B01-N LED controller

• Loading capacity up to 650,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
• 2x Gigabit Ethernet ports
• Allows for play content imported from a USB drive and firmware upgrade over USB

Specification

Processing Performance:

• Brightness Control: 1-100 Levels
• Frame Frequency: 30Hz-60Hz
• Grey Level: 256
• Display Color: 1 Billion colors
• Processing Depth: 8-bit
• Image Scaling: Supported

Product Model:

• Model Name: DS-D42B01-N
• Product Type: LED Controller
• Power Consumption:
  • Average Consumption: ≤18W
  • Power Interface: 1
  • Power Interface Specifications: 100-240V~, 50/60Hz, 0.6A

Chassis Dimensions:

• Height: 0.9U
• Width: 3.12U

General Specifications:

• Working Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +80°C
• Working Humidity: 0%RH to 80%RH
• Storage Humidity: 0%RH to 80%RH
• Packaging Size (W × H × D): 385mm × 280mm × 75mm
• Net Weight: 1228.9g
• Gross Weight: 1648.5g
• Dimensions (W × H × D): 274.3mm × 139mm × 40mm

Audio & Video Input/Output:

• Audio Input Interface: Not applicable
• Video Input Interface: 1 (Type unspecified)
• Max Output Resolution: 0.65 Million pixels
• Video Output Load Capacity: 650,000 per port
• LED Loading Interfaces: 2 (RJ45 type)

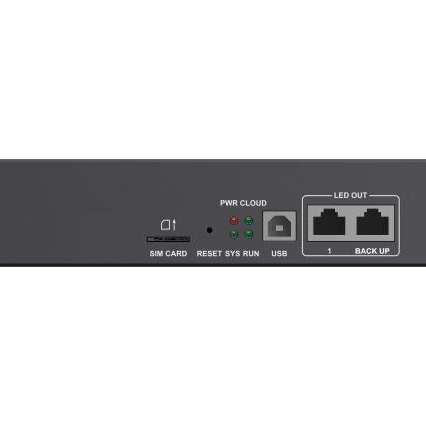

Front Panel Indicators:

• PWR (Red): Power supply working properly
• SYS (Green): Operating system status
  • Flashing every 2s: System functioning normally
  • On/Off: Malfunction
• CLOUD (Green): Internet connection status
  • On: Connection available
  • Flashing (2s): Connection to VNNOX available
  • Flashing (1s): System upgrade in progress
  • Flashing (0.5s): Upgrade package copying
• RUN (Green): FPGA status
  • Flashing (1s): No video source
  • Flashing (0.5s): FPGA normal operation
  • On/Off: FPGA loading abnormal

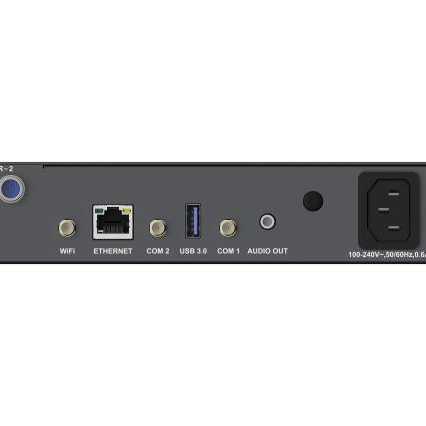

Control & Connectivity:

• Control Network Port: 1 RJ45 Ethernet (10/100/1000M)
  • Supports multi-device network cascade management
• USB Ports: 1 USB 3.0
• IR Input: Not applicable
• Serial Interface: 1 Gigabit Ethernet port
• Light Perception: 2 Sensors

Included Accessories:

• Wi-Fi omnidirectional antenna
• AC power cord
• Quick Start Guide
• Packing list
