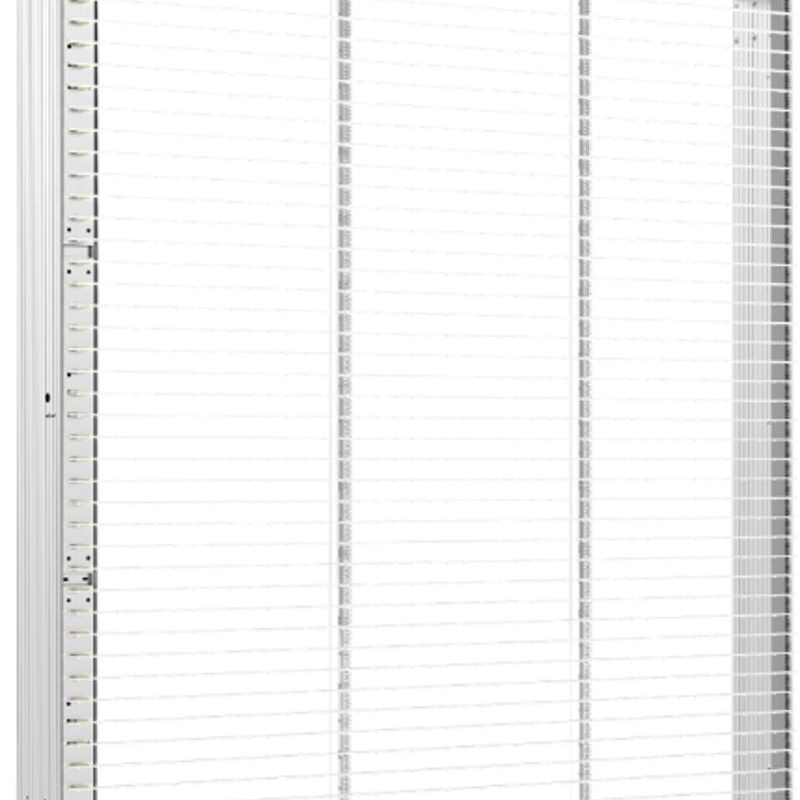

Hikvision DS-D4239TI-SHC High Brightness Transparent LED display

• Standardized cabinet for flexible installation, multi-screen seamless splicing with light and thin design, and convenient for quick installation.
• Permeability-oriented material selection and design, no influence on the original building appearance.
• Brightness customizable on the basis of specific scenarios, ensuring the display effects even under the highlight indoor or the direct sunlight outdoor.
• Runs silently with lower heat and effective heat dissipation.

Specification

Cabinet:

• Pixel Configuration: 1R1G1B
• Pixel Pitch: Horizontal: 3.9 mm / Vertical: 7.8 mm

Dimensions (W × H × D):

• Flexible splicing options:
• 1 m × 1 m
• 1 m × 0.75 m
• 0.75 m × 1 m
• 0.75 m × 0.75 m
• 1 m × 1.25 m
• 1.25 m × 1 m
• Weight: 15 kg/㎡
• Pixel Density: 32,768 dot/㎡
• Cabinet Material: Aluminum alloy
• Protection Level: IP43

Display:

• White Balance Brightness: Typical：5000 nits（5500nits Peak）
• Color Temperature: 2000K to 10,000K (adjustable)
• Viewing Angle: 120° (Horizontal) / 120° (Vertical)
• Brightness Uniformity: ≥ 98%
• Color Uniformity: ±0.001 Cx, Cy
• Contrast Ratio: ≥ 3000:1
• Transmittance: 60%
• Display Color: 281.4 trillion

Processing Performance:

• Brightness Control: Manual/Auto
• Driving Method: Constant current driving, 1/4 scan
• Frame Frequency: 60 Hz
• Refresh Rate: ≥ 1920 Hz
• Grey Level: 65,536 Levels
• Processing Depth: 16 bits

Power:

• Max. Consumption: 800 W/㎡
• Average Consumption: 300 W/㎡
• Input Voltage: 110 to 220 VAC ± 15%

Working Environment:

• Working Temperature: -10 ℃ to 65 ℃ (14 ℉ to 149 ℉)
• Working Humidity: 10% to 90%
• Storage Temperature: -20 ℃ to 90 ℃ (-4 ℉ to 194 ℉)
• Storage Humidity: 10% to 90%
