Hikvision DS-D4239CD-1AAB P3.9 Outdoor LED Display Unit LumiFit Series

• Even the thickest part of this thin display is only 28.1 mm or so. With two-color alloy splicing design and magnetic butterfly bezel design, it supports seamless splicing of multiple screens.
• Empowered by self-developed lossless image processing technology and ultra-low gray scale image control technology, it presents dynamic colors and delicate images with soft color.
• You can control and manage your content remotely via local storage, USB flash drive, mobile client, PC client, Hik-cloud, etc.

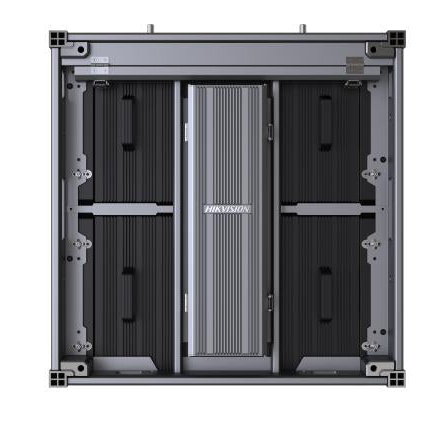

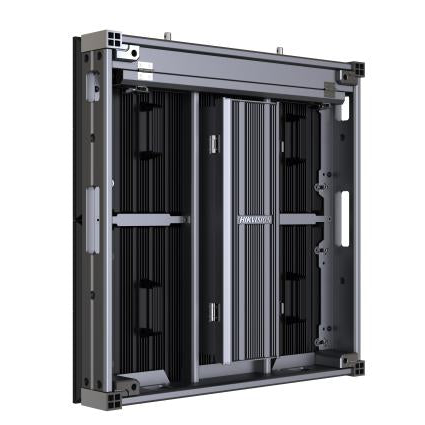

• Its modular system box supports quick maintenance or replacement of product system modules.
• When used in a single unit, it supports dynamic guidance and mobile phone mirroring. When spliced with two units, it can be used to display character ads. When spliced as a 2K splicing display, it can be directly connected to display a computer screen.
• It supports tilt bracket mounting, mobile two-color alloy base mounting, wall mounting, pendant mounting, and creative bracket mounting.
• HOB light board protection functions make it moisture-proof in humid regions and prevent it from falling over in crowded places.

Specification

Cabinet:

• Pixel Configuration: SMD Triad LED
• Pixel Pitch Category: P3.9
• Pixel Pitch: 3.91 mm
• Modules Component: 1 × 2
• Dimensions (W × H × D): 500 mm × 500 mm × 97 mm
• Resolution: 128 × 128
• Area: 0.25 m²
• Weight: 9.12 kg
• Pixel Density: 65,536 dots/m²
• Lamp Board Housing: With housing
• Cabinet Material: Aluminum Steel
• Maintenance Method: Front and Rear maintenance
• Cabinet Flatness: 0.8 mm
• Protection Level: IP66
• Key Material: Lamp Encapsulation (1921)
• Control System: Hikvision

Display:

• White Balance Brightness: 4500 nits
• Color Temperature: 9300K adjustable
• Viewing Angle: Horizontal 160°, Vertical 160°
• Contrast Ratio: ≥ 5000:1
• Color Uniformity: ≤ ± 0.003Cx, Cy
• Brightness Uniformity: ≥ 95%

Processing Performance

• Driving Method: Constant current driving
• Frame Frequency: 60 Hz
• Refresh Rate: Up to 3840 Hz
• Grey Level: Up to 14 bit

Power:

• Power Supply: 110~220 VAC ± 15%
• Max. Consumption: ≤ 650W/m² (4500 nits)
• Average Consumption: ≤ 210 W/m² (4500 nits)

Working Environment

• Working Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Working Humidity: 10%~80% RH
• Storage Humidity: 10%~90% RH
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

General:

• Gross Weight: 10.85 kg (per unit)
• Package Dimensions (W × H × D): 610 mm × 165 mm × 606 mm
• Lifespan: 100,000 hours (Lamp)
