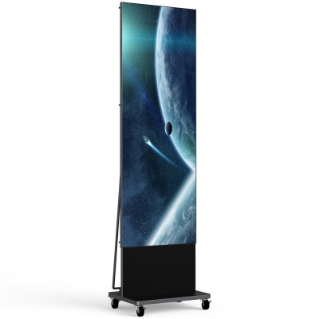

Hikvision DS-D4215MI-070H(B) P1.5 Creative Poster LED

• Even the thickest part of this thin display is only 28.1 mm or so. With two-color alloy splicing design and magnetic butterfly bezel design, it supports seamless splicing of multiple screens.
• Empowered by self-developed lossless image processing technology and ultra-low gray scale image control technology, it presents dynamic colors and delicate images with soft color.
• You can control and manage your content remotely via local storage, USB flash drive, mobile client, PC client, Hik-cloud, etc.
• Its modular system box supports quick maintenance or replacement of product system modules.
• When used in a single unit, it supports dynamic guidance and mobile phone mirroring. When spliced with two units, it can be used to display character ads. When spliced as a 2K splicing display, it can be directly connected to display a computer screen.
• It supports tilt bracket mounting, mobile two-color alloy base mounting, wall mounting, pendant mounting, and creative bracket mounting.
• HOB light board protection functions make it moisture-proof in humid regions and prevent it from falling over in crowded places.

Specification

Cabinet

• Pixel Configuration: SMD Triad LED
• Pixel Pitch Category: P1.5
• Pixel Pitch: 1.5625 mm
• Modules Component: Cabinet × 5, single cabinet (2 × 4)
• Dimensions (W × H × D): 613 × 1695.5 × 68.1 mm (24.1 × 66.8 × 2.7 inch)
• Resolution: 384 × 1080
• Area: 1.0125 m²
• Weight: 29 kg (64.0 lb.)
• Pixel Density: 409,600 dots/m²
• Lamp Board Housing: Without housing, glue potting
• Cabinet Material: Aluminum alloy

Maintenance Method:

• Front maintenance for cabinet
• Rear maintenance for system backpack

Display

• White Balance Brightness: 600 cd/m²
• Color Temperature: 3000 to 10,000 K (adjustable)
• Viewing Angle: Horizontal: 160°/ Vertical: 160°
• Contrast Ratio: ≥ 3000:1
• Color Uniformity: ± 0.003 Cx, Cy
• Brightness Uniformity: ≥ 97%

Processing Performance

• Driving Method: Constant current driving
• Frame Frequency: 60 Hz
• Refresh Rate: Up to 3840 Hz
• Grey Level: Up to 16 bit

Power

• Power Supply: 110 to 220 VAC ± 15%
• Max. Consumption: ≤ 450 W/m²
• Average Consumption: <150 W/m²

Working Environment

• Working Temperature: -10 to 40 °C (14 to 104 °F)
• Working Humidity: 10% to 60% RH (non-condensing)
• Storage Humidity: 10% to 85% RH (non-condensing)
• Storage Temperature: -20 to 60 °C (-4 to 140 °F)

General

• Package Dimensions (W × H × D): 1831 × 1082 × 246 mm (72.1 × 42.6 × 9.7 inch)
• Gross Weight: 35 kg (77.2 lb.)

Packing List:

• Power cord × 1
• HDMI × 1
• Wi-Fi antenna × 2
