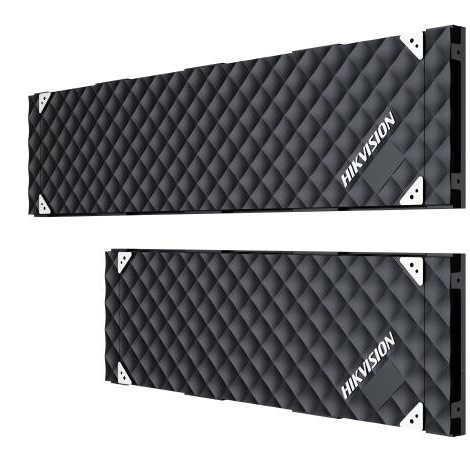

Hikvision DS-D4039CC-1F 1000*250/mm Indoor LED Displays Flex Series

• Multiple dimensions: Cabinets with various dimensions can be flexibly used to meet a variety of plane and three-dimensional stitching needs.
• Light and ultra-thin cabinets: Ultra-thin and die casting aluminum cabinets are light and beautiful, which can help to deliver quickly.

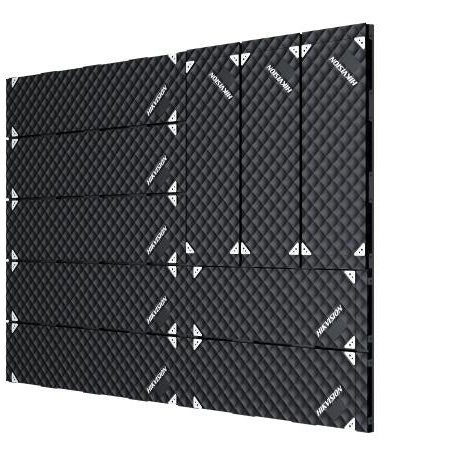

• Delicate frame: 45 degree frame structure with intensive design enhances the possibility of 90 degree right-angle of creative shapes installation. It can be used with more curved and creative stitching forms. There is no need to customize.
• Magnetic module: Standard lamp boards with precise locating structure and strong magnetic adsorption without bottom shell can benefit efficient installation and convenient maintenance.
• Rotate to install: Support cabinet and module 90 degree rotating installation and horizontal and vertical stitching of cabinets. No chromatic aberration in viewing angle.
• Excellent display effect: Support high definition display and color reproduction, high contrast ratio and high refresh rate. Adopt Hikvision’s dynamic engine algorithm for automatic screen control. The image is soft and comfortable to view.
• Intelligent control system: More intelligent with Hikvision’s control system. Signal backup, intelligent operation and maintenance facilitate convenient operation and control. Support cloud management and maintenance.
• High quality: Obtained TUV-CE/ROHS/CB compliance certification. The cabinet is safe, reliable, energy-saving and environmentally friendly.

Specification

Cabinet:

• Pixel Configuration: SMD Triad LED
• Pixel Pitch Category: P3.9
• Pixel Pitch: 3.906 mm
• Modules Component: 1 × 4
• Dimensions (W × H × D): 1000 mm × 250 mm × 50 mm (39.370" × 9.843" × 1.969")
• Resolution: 256 × 64
• Area: 0.25 m² (387.501 in²)
• Weight: 5.65 kg (12.456 lb)
• Pixel Density: 65536 dots/m²
• Lamp Board Housing: With housing
• Cabinet Material: Aluminium die casting
• Maintenance Method: Front maintenance for all components
• Cabinet Flatness: 0.1 mm (0.00039")
• Protection Level: Front protection level IP60

Display:

• White Balance Brightness: 800 cd/m² (Peak 1000 cd/m²)
• Color Temperature: 3000 K to 10000 K adjustable
• Viewing Angle: Horizontal 160°, vertical 160°
• Contrast Ratio: ≥ 5000:1
• Color Uniformity: ≤ ± 0.003Cx, Cy
• Brightness Uniformity: ≥ 97%
• Processing Performance:
• Driving Method: Constant current driving
• Frame Frequency: 60 Hz
• Refresh Rate: Up to 3840 Hz
• Grey Level: Up to 16 bit
• Display Color: 281 trillion

Power:

• Power Supply: 110~220 VAC ± 15%
• Max. Consumption: ≤ 494 W/m²
• Average Consumption: < 165 W/m²
• Working Environment:
• Working Temperature: -10 to 40 °C (14 °F to 104 °F)
• Working Humidity: 10%~80% RH
• Storage Humidity: 10%~80% RH
• Storage Temperature: -20 to 60 °C (-4 °F to 140 °F)

General:

• Gross Weight (1 cabinet in 1 box): 9.3 kg (34.488" × 5.354" × 12.992")
• Gross Weight (10 cabinets in 1 box): 94 kg (36.023" × 40.984" × 27.755")
• Package Dimensions:
• 1 Cabinet in 1 Box: 1180 mm × 136 mm × 330 mm (46.456" × 5.354" × 12.992")
• 10 Cabinets in 1 Box: 1237 mm × 1041 mm × 652 mm (48.700" × 40.984" × 25.669")

Lifespan:

• Lamp: 100,000 hours

Bracket:

• Modular Bracket: DS-DL111025W 11; DS-DL211025W 21
