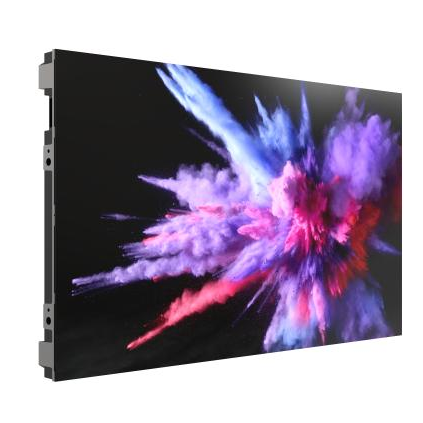

Hikvision DS-D4009BW-2FC 600*337.5/mm (O-STD) Indoor LED Displays Ultra Series

• The display and control system is wholly self-developed, which is stable, safety and controllable.
• Highly integrated and compatible cabinet with simple and lightweight design.
• Easy to disassemble lamp board, power supply, and receiving card on the front side with high- precision aluminum die casting cabinet design.
• The solders are made of lead-free and non-toxic solder paste materials, which will not cause harm to human body and the environment.
• Automatically identify high-brightness and harsh picture details and adjust the brightness of the partial zones with dynamic engine algorithms adopted. The image is soft and comfortable to view and its quality is enhanced when unnecessary power consumption is reduced.
• Automatically remove moisture to protect lamp board from water damage when the device is kept in a humid environment or left unused for a long time.
• Support multiple ways to adjust screen parameters via remote control, tablet, and platforms.

Specification

• Product Model: DS-D4009BW-2FC
• Product Type: Fine Pixel Pitch Indoor Full-color LED Display

Cabinet

• Pixel Pitch0.9375 mm (0.037")
• Pixel Pitch CategoryP0.9
• Pixel Configuration: Flip-chip COB
• Pixel Density: 1137777 dots/㎡
• Modules Component: 2 × 2
• Dimensions: : (W × H × D)600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154")
• Resolution: 640 × 360
• Area: 0.2025 ㎡
• Weight: 3.4 Kg

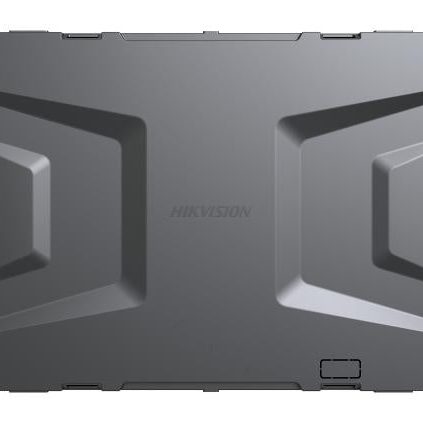

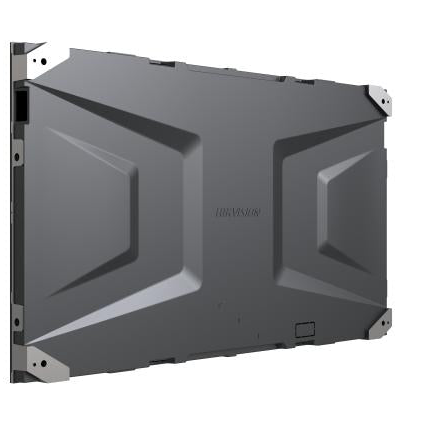

• Cabinet Material: Aluminium die casting
• Maintenance Method: Front maintenance for all components

Module

• Dimensions300 × 168.75 mm
• Module Resolution320 × 160

Display

• White Balance Brightness600 cd/㎡
• Color Temperature3000-10000 K adjustable
• Viewing Angle160°(H)/160°(V)
• Contrast Ratio15000:1
• Color Uniformity≤ ± 0.003Cx，Cy
• Brightness Uniformity≥ 97％

Processing Performance

• Driving MethodConstant current driving
• Scanning Amount54
• Frame Frequency60 Hz
• Refresh Rate3840 Hz
• Grey Level16 bit

Power

• Max. Consumption≤ 360 W/㎡ （600nits）
• Average Consumption≤ 120 W/㎡
• Input Voltage100~240 VAC ± 10％

Working Environment

• Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
• Working Humidity10% to 90% RH (without condensation)
• Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
• Storage Humidity10% to 90% RH (without condensation)

General

• Package Dimensions:  (W × H × D)722 (W) mm × 438 (H) mm × 193 (D) mm (28.425 '' × 17.244 '' × 7.598 '')
• Packing List
• Regulatory Compliance and Safety Information × 1
• Several connecting screws, light beads, driver IC, iron sheets
• G.W.4.56 kg （1 package in 1 box）
• Net Weight: 3.4 kg

Bracket

• Modular Bracket: DS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2
