Hikvision DS-D2065LU-Y 65-inch 3.5mm LCD Display Unit
Hikvision DS-D2065LU-Y 65-inch 3.5mm LCD Display Unit
Out of stock
SKU:DS-D2065LU-Y
Couldn't load pickup availability
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between six picture modes: Standard/Meeting/Movie/Monitoring/Text/User
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 3840 × 2160 resolution, 178° viewing angle

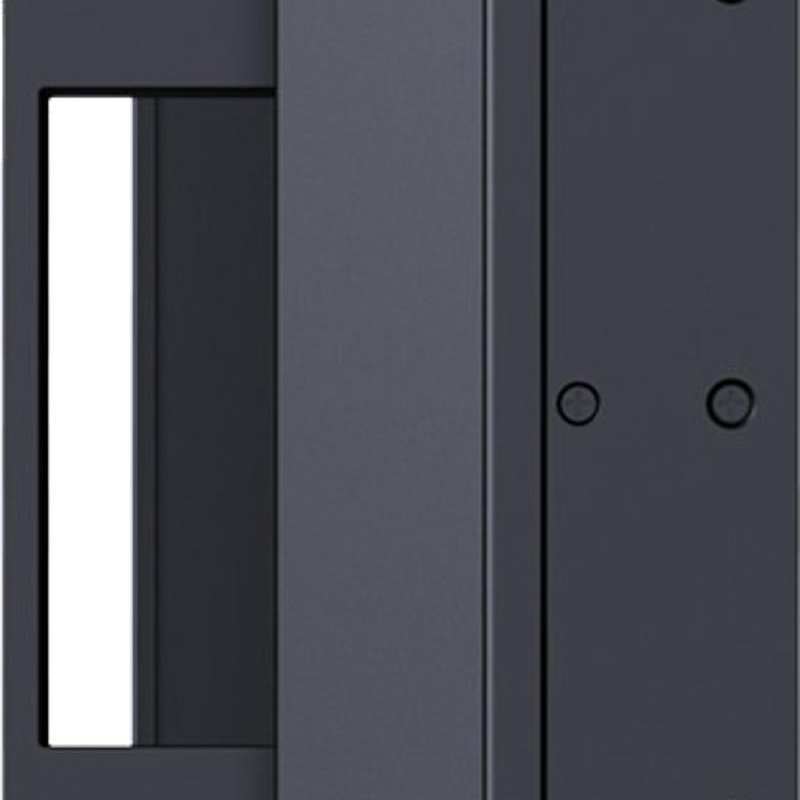

- Ultra-narrow 3.5 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
Specification
Display
- Screen Size65 inch
- Active Display Area1428.48 (H) mm × 803.52 (V) mm
- BacklightDirect-lit LED backlight
- Pixel Pitch0.372 mm
- Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
- Resolution3840 × 2160@60 Hz (downward compatible)
- Brightness500 cd/m²
- Viewing AngleHorizontal 178°, vertical 178°
- Color Depth8 bit, 16.7 M
- Contrast Ratio1200 : 1
- Physical Seam3.5 mm
- Response Time10 ms
- Color Gamut72% NTSC
- Surface TreatmentHaze 25%, 3H
Interface
- Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
- Video & Audio OutputHDMI × 1
- Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumption≤ 260 W
- Standby Consumption≤ 0.5 W
Working Environment
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 80% RH (non-condensing)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Storage Humidity10% to 90% RH (non-condensing)
General
- Casing MaterialSECC
- VESA800 (H) mm × 600 (V) mm
- Product Dimension (W × H × D)1432.58 mm × 807.62 mm × 85.1 mm (56.4'' × 31.8'' × 3.35'')
- Package Dimension (W × H × D)Carton with a single display: 1630 mm × 1013 mm × 302 mm (64.17'' × 39.88'' × 11.89'')
- Net Weight29.2 ± 0.5 kg (64.37 ± 1.1 lb) for single display
- Gross WeightCarton with a single display: 59.4 ± 0.5 kg (130.95 ± 1.1 lb)
- Packing ListLCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
Downloads:
