Hikvision DS-D2055UL-1B 55 inch 3.5mm LCD Display Unit
Hikvision DS-D2055UL-1B 55 inch 3.5mm LCD Display Unit
Out of stock
SKU:DS-D2055UL-1B
Couldn't load pickup availability

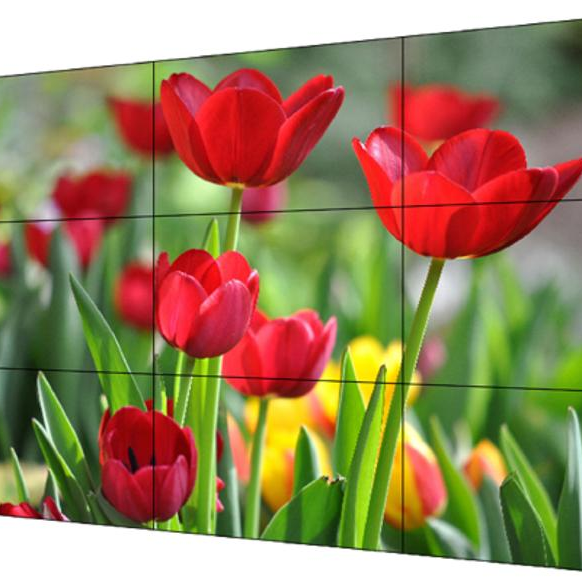

- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Ultra-narrow 3.5 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
Specification
Display
- Screen Size55 inch
- Active Display Area1209.6 (H) mm × 680.4 (V) mm
- BacklightDirect-lit LED backlight
- Pixel Pitch0.63 mm
- Physical Seam3.5 mm
- Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
- Resolution1920 × 1080@60 Hz (downward compatible)
- Brightness500 cd/m²
- Viewing AngleHorizontal 178°, vertical 178°
- Color Depth8 bit, 16.7 M
- Contrast Ratio1200:1
- Response Time7.5 ms
- Color Gamut72% NTSC
- Surface TreatmentHaze 25%
Interface
- Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
- Video & Audio OutputHDMI × 1
- Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumption≤ 245 W
- Standby Consumption≤ 0.5 W
Working Environment
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 80% RH (non-condensing)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Storage Humidity10% to 90% RH (non-condensing)
General
- Casing MaterialSGCC
- VESA600 (H) mm × 400 (V) mm
- Product Dimension (W × H × D)1213.5 mm × 684.5 mm × 71.19 mm (47.78'' × 26.94' × 2.8'')
- Package Dimension (W × H × D)1404(W) mm × 910 (H) mm × 231 (D) mm
- Net Weight19.8 ± 0.5 kg (43.7 ± 1.1 lb) for single display
- Gross Weight33.6 ± 0.5 kg (74.1 ± 1.1 lb) for carton with a single display
- Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
