Hikvision

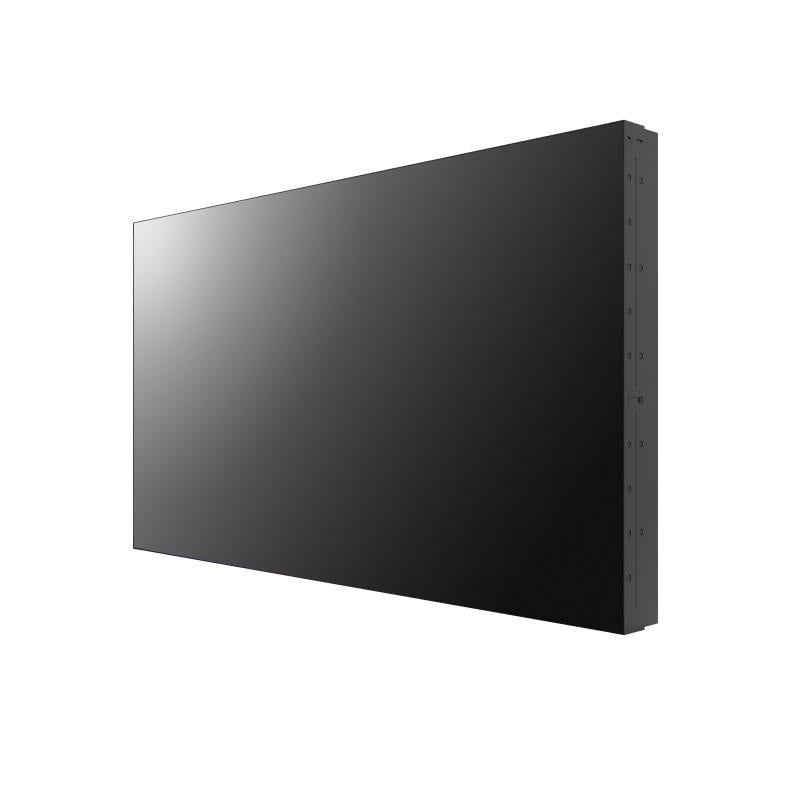

Hikvision DS-D2055LR-G 55-inch 0.88mm LCD Display Unit
Hikvision DS-D2055LR-G 55-inch 0.88mm LCD Display Unit
Out of stock
SKU:DS-D2055LR-G
Couldn't load pickup availability
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Extreme-narrow 0.88 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
Specification
Display
- Screen Size55 inch
- Active Display Area1209.63 (H) mm × 680.34 (V) mm
- BacklightDirect-lit LED backlight
- Pixel Pitch0.63 mm
- Physical Seam0.88 mm
- Bezel Width0.44 mm (top/left), 0.44 mm (bottom/right)
- Resolution1920 × 1080@60 Hz (downward compatible)
- Brightness500 cd/m²
- Viewing AngleHorizontal 178°, vertical 178°
- Color Depth10 bit, 1.07 B
- Contrast Ratio1100:1
- Response Time8 ms
- Color Gamut72% NTSC
- Surface TreatmentHaze 28%, 3H
Interface
- Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
- Video & Audio OutputHDMI × 1
- Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumption≤ 245 W
- Standby Consumption≤ 0.5 W
Working Environment
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 80% RH (non-condensing)
- Storage Temperature-20°C to 60°C (-4°F to 140°F)
- Storage Humidity10% to 90% RH (non-condensing)
General
- Casing MaterialSGCC
- VESA600 (H) mm × 400 (V) mm
- Product Dimension (W × H × D)1210.81 mm × 681.76 mm × 68.9 mm (47.67'' × 26.84'' × 2.71'')
- Package Dimension (W × H × D)1404(W) mm × 910 (H) mm × 231 (D) mm
- Net Weight20.8 ± 0.5 kg (45.9 ± 1.1 lb) for single display
- Gross Weight39.2 ± 0.5 kg (86.4 ± 1.1 lb) for carton with a single display
- Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
